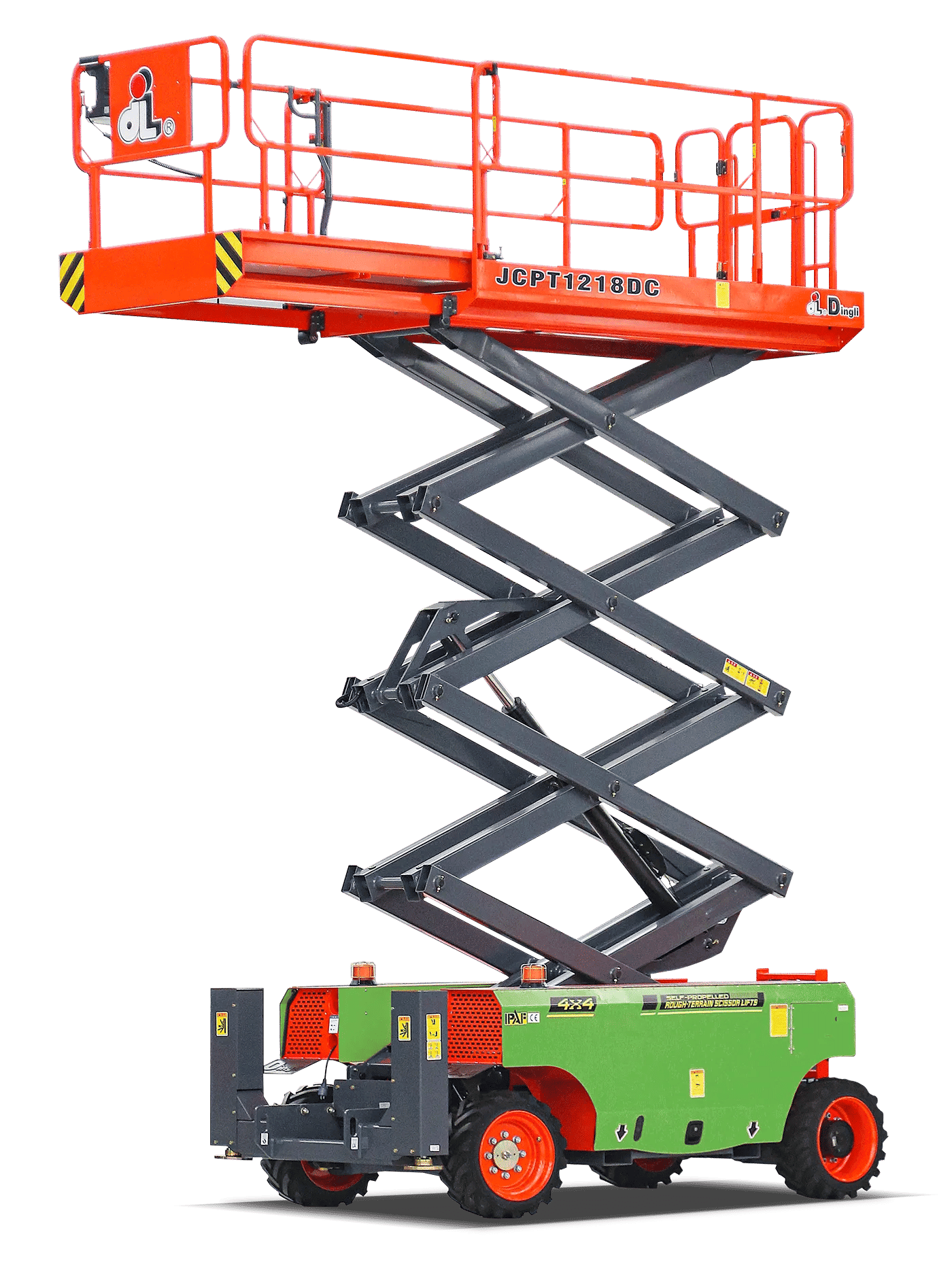

Dingli JCPT1218DC Scissor Lift Specifications

dingli

The Dingli JCPT1218DC Scissor Lift is a powerful and eco-friendly solution designed for construction, maintenance, and high-reach tasks in demanding environments. Engineered to perform effortlessly on rough terrains, it features enhanced stability and full-height drivability with a maximum load capacity of 454kg, making it ideal for heavy-duty operations. The automatic self-levelling system ensures secure positioning on uneven surfaces, while 4-wheel drive and steering provide exceptional maneuverability. A one-key extension large deck allows users to stop and work at any point along the platform for flexible access. Powered by a 48V/320Ah high-capacity battery pack, the JCPT1218DC offers zero-emission, low-noise operation, supporting green and quiet job sites. Compact yet rugged, it’s the perfect lift for projects that demand performance, reach, and environmental responsibility.

Dingli JCPT1218DC Scissor Lift Specifications

ENGINE / BATTERY SYSTEM

Battery Voltage / Capacity
48V/320Ah
Charger Input Voltage
48V
Charger Output / Type
48V/35A

TRANSMISSION & PERFORMANCE

Drive Type
Two-Wheel Drive
Gradeability
40 %
Lift Time (Loaded)
40sec
Lower Time (Loaded)
46sec
Max Travel Speed (Stowed)
6.00 km/h
Travel Speed (Raised)
0.45 km/h

OPERATING WEIGHT & LOAD CAPACITY

Extension Deck Capacity
136 kg
Max Platform Capacity
454kg
Max Platform Occupants (In/Out)
4/2 persons
Operating Weight
4.4Ton

DIMENSIONS

Ground Clearance (Stowed)
0.24m
Overall Height (Rails Lowered)
1.82m
Overall Height (Rails Raised)
2.59m
Overall Length (Stowed)
3.84 m
Overall Width
1.76m
Wheelbase
2.29 m

HYDRAULIC SYSTEM

Hydraulic Oil Capacity
71 L

PLATFORM & REACH PERFORMANCE

Max Platform Height
12.00m
Max Working Height
2.88×1.52 m
Platform Railing Height
1.5° m
Platform Size (L×W)
1.43m

SAFETY & FEATURES

Max Side Slope (Lateral)
Max Wind Speed (Outdoor Use)
Tilt Alarm
Platform Control System
Proportional Joystick Controls
Tires
26×12-16.5

BRAKE SYSTEM

Service Brake Type
Automatic Braking System

STEERING & TURNING

Steering Type
Two-Wheel Steering
Turning Radius (Inside)
2.15m
Turning Radius (Outside)
4.85 m
