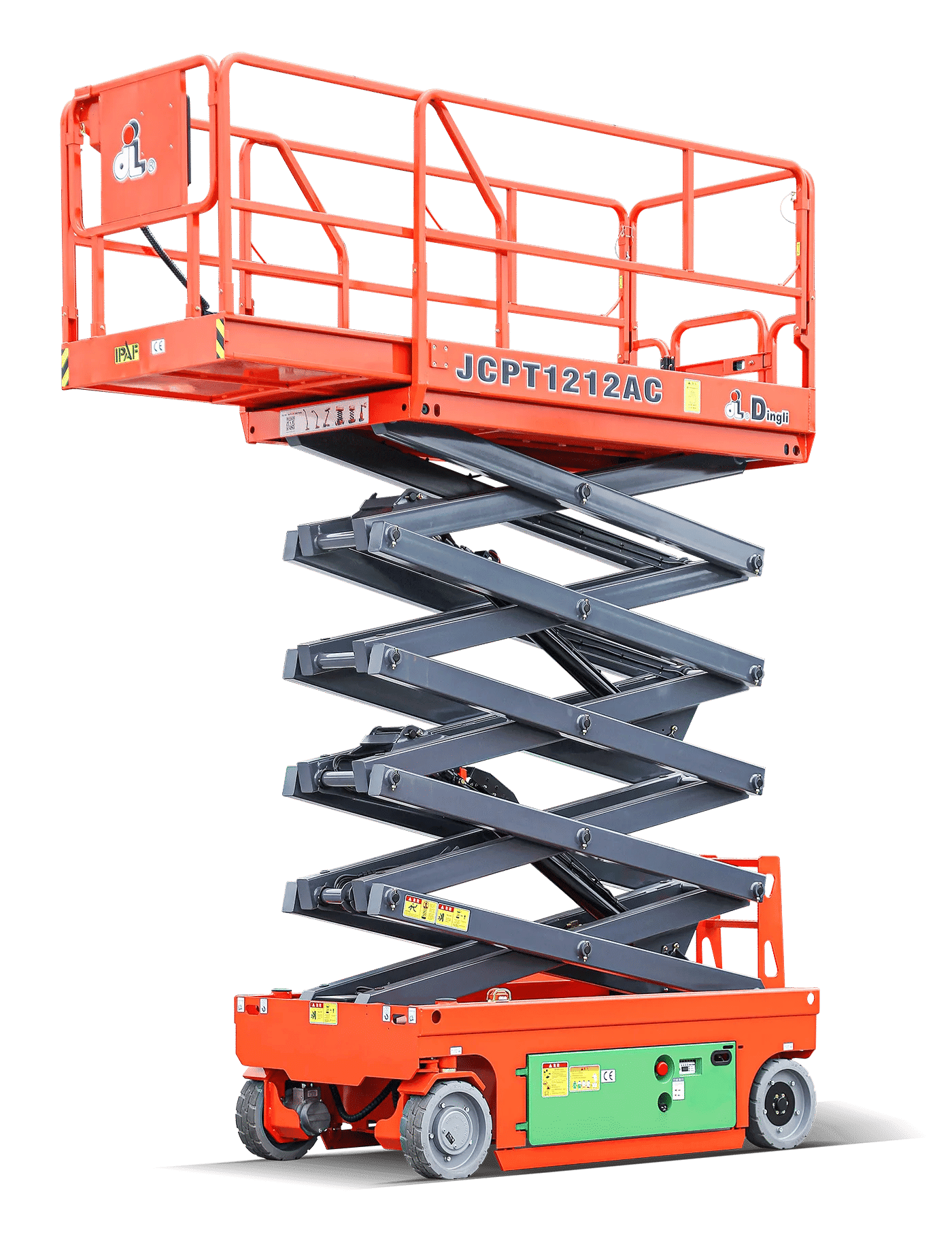

Dingli JCPT1212AC Scissor Lift Specifications

dingli

The Dingli JCPT1212AC Scissor Lift is a compact, battery-powered access solution engineered for safe, efficient, and low-maintenance aerial operations. Featuring a fully sealed AC drive and lift system, this lift is both waterproof and maintenance-free, making it ideal for use in dusty or wet industrial environments. Its unidirectional extension platform allows for easy maneuvering and access to operational points, while the automatic pothole protection system ensures stable operation on uneven surfaces. The integrated fault code display helps reduce downtime by providing real-time diagnostics. Powered by a 24V/200Ah high-capacity battery pack, the JCPT1212AC offers long-lasting, zero-emission performance. Whether used in warehouses, factories, or commercial facilities, this lift is perfect for professionals who need clean, quiet, and reliable elevation access in tight or sensitive workspaces.

Dingli JCPT1212AC Scissor Lift Specifications

ENGINE / BATTERY SYSTEM

Battery Voltage / Capacity
24V/200Ah
Charger Input Voltage
24V
Charger Output / Type
24V/30A

TRANSMISSION & PERFORMANCE

Drive Type
Two-Wheel Drive
Gradeability
25 %
Lift Time (Loaded)
54sec
Lower Time (Loaded)
45sec
Max Travel Speed (Stowed)
5.0 km/h
Travel Speed (Raised)
0.8 km/h

OPERATING WEIGHT & LOAD CAPACITY

Extension Deck Capacity
113 kg
Max Platform Capacity
320 kg
Max Platform Occupants (In/Out)
2/1 persons
Operating Weight
3.06 Ton

DIMENSIONS

Ground Clearance (Stowed)
0.10m
Overall Height (Rails Lowered)
1.96 m
Overall Height (Rails Raised)
2.49 m
Overall Length (Stowed)
2.48 m
Overall Width
1.15 m
Wheelbase
1.87 m

HYDRAULIC SYSTEM

Hydraulic Oil Capacity
20 L

PLATFORM & REACH PERFORMANCE

Max Platform Height
10.00 m
Max Working Height
12.00m
Platform Extension Length
0.90m
Platform Size (L×W)
2.27×1.12 m

SAFETY & FEATURES

Max Side Slope (Lateral)
1.5°
Max Slope (Fore/Aft)
Platform Control System
Proportional Joystick Controls
Tilt Sensor
Yes (Tilt Alarm Present)
Tires
φ381×127mm
Tyre Type
Non-Marking Tyres

BRAKE SYSTEM

Service Brake Type
Automatic Braking System

STEERING & TURNING

Steering Type
Two-Wheel Steering Two-Wheel Steering
Turning Radius (Inside)
0.00 m
Turning Radius (Outside)
2.20 m
