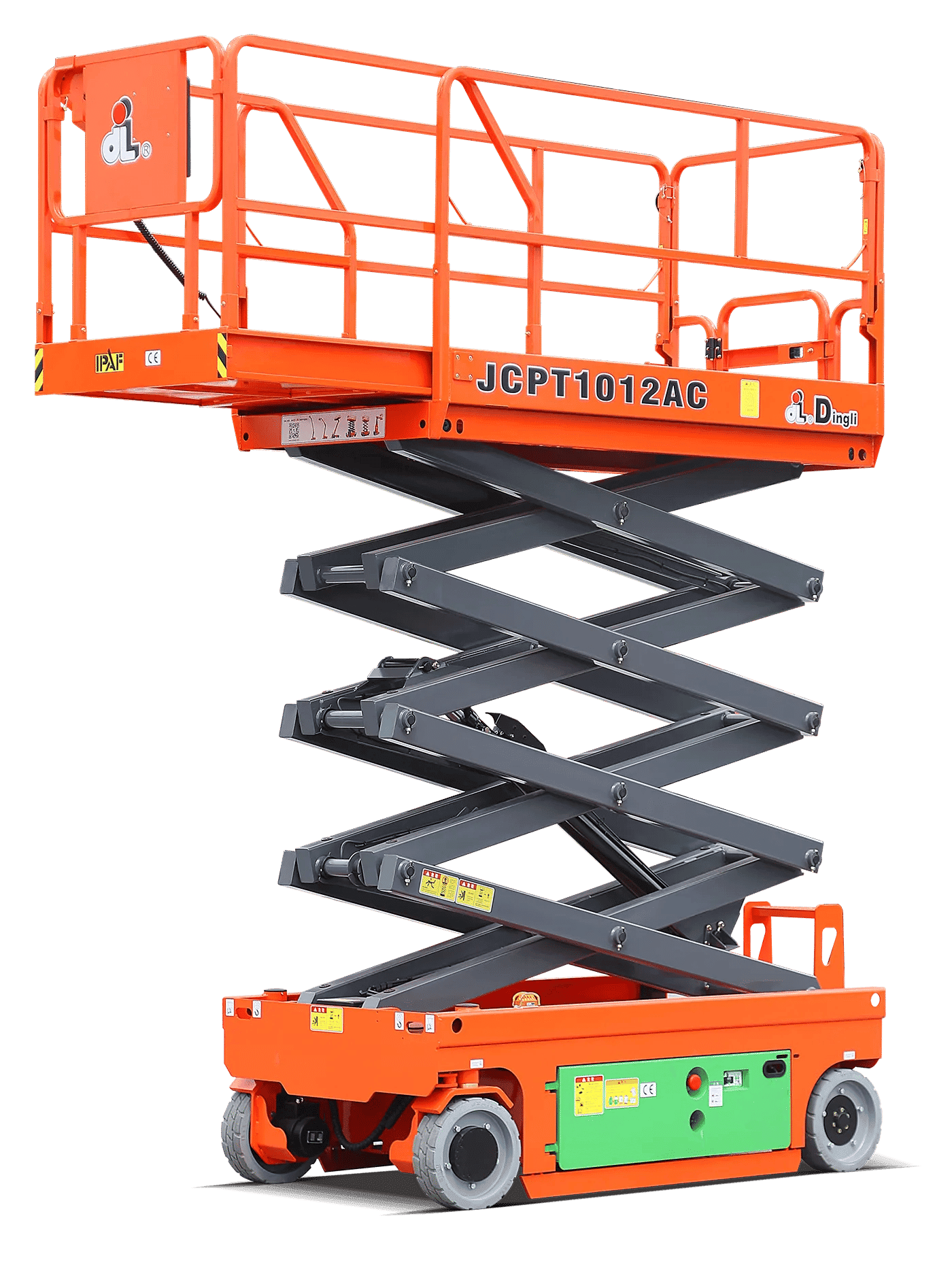

Dingli JCPT1012AC Scissor Lift Specifications

dingli

The Dingli JCPT1012AC Scissor Lift is a compact, battery-powered aerial platform designed for efficient and safe indoor maintenance and facility operations. With an overall width of just 1.15 meters, it easily navigates narrow aisles and tight workspaces. Equipped with a fully sealed, waterproof AC drive and lift system, this lift is maintenance-free, making it ideal for dusty or wet industrial environments. Its unidirectional extension platform provides easy access to hard-to-reach work points, while the automatic pothole protection system ensures stable and secure elevation on uneven flooring. The integrated fault code display minimizes downtime with quick diagnostics. Powered by a durable 24V/185Ah high-capacity battery pack, the JCPT1012AC delivers zero-emission, low-noise performance, making it a reliable solution for professionals needing clean, compact, and consistent aerial access.

Dingli JCPT1012AC Scissor Lift Specifications

ENGINE / BATTERY SYSTEM

Battery Voltage / Capacity
24V / 185Ah
Charger Input Voltage
24V
Charger Output / Type
30A

TRANSMISSION & PERFORMANCE

Drive Type
Two-Wheel Drive
Gradeability
25%
Lift Time (Loaded)
34sec
Lower Time (Loaded)
30sec
Max Travel Speed (Stowed)
5.0km/h
Travel Speed (Raised)
0.8km/h

OPERATING WEIGHT & LOAD CAPACITY

Extension Deck Capacity
113kg
Max Platform Capacity
450kg
Max Platform Occupants (In/Out)
2 / 2persons
Operating Weight
2.71Ton

DIMENSIONS

Ground Clearance (Stowed)
0.1m
Overall Height (Rails Lowered)
1.83m
Overall Height (Rails Raised)
2.36m
Overall Length (Stowed)
2.48m
Overall Width
1.15m
Wheelbase
1.87m

HYDRAULIC SYSTEM

Hydraulic Oil Capacity
20L

PLATFORM & REACH PERFORMANCE

Max Platform Height
8.0m
Max Working Height
10.0m
Platform Extension Length
0.9m
Platform Size (L×W)
2.27 × 1.12m

SAFETY & FEATURES

Max Side Slope (Lateral)
X-1.5°
Max Slope (Fore/Aft)
Y-3°
Platform Control System
Proportional Joystick Controls
Tires
φ381×127mm

STEERING & TURNING

Turning Radius (Inside)
0.0m
Turning Radius (Outside)
2.2m
