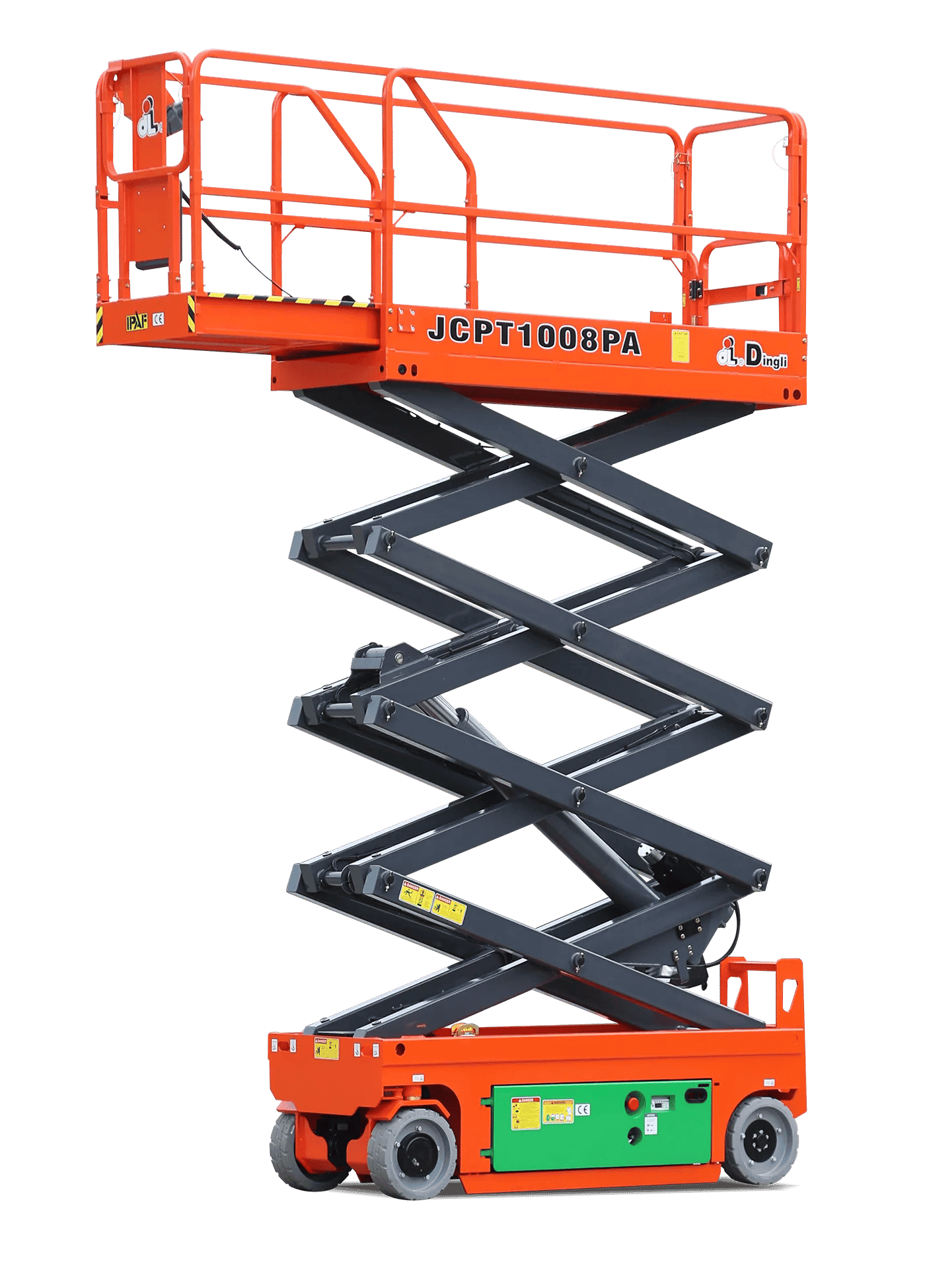

Dingli JCPT1008PA Scissor Lift Specifications

dingli

The Dingli JCPT1008PA Scissor Lift is a compact, eco-friendly, and oil-free aerial work platform designed for precision and sustainability in tight indoor environments. Utilizing electric actuators for lifting, lowering, and steering, it ensures zero emissions, low noise, and clean operation—perfect for hospitals, labs, and commercial spaces. With a narrow 0.83m width, it easily navigates confined areas while maintaining high stability. The self-gravity lowering system, real-time data monitoring, and proportional joystick controls enhance operator safety and control. Equipped with a 24V/185Ah lithium battery, this lift offers long-lasting power and 30% greater energy efficiency compared to hydraulic models. Its dust and water resistance makes it suitable for diverse maintenance and installation tasks. The JCPT1008PA is a smart, sustainable solution for modern, precision-driven workspaces.

Dingli JCPT1008PA Scissor Lift Specifications

ENGINE / BATTERY SYSTEM

Battery Type
Lead-acid / Lithium
Battery Voltage / Capacity
4×6V/185Ah or 24V/180Ah
Charger Input Voltage
24V
Charger Output / Type
24V/30A

TRANSMISSION & PERFORMANCE

Drive Type
Two-Wheel Drive
Gradeability
25%
Lift Time (Loaded)
36sec
Lower Time (Loaded)
36sec
Max Travel Speed (Stowed)
5.0km/h
Travel Speed (Raised)
0.8km/h

OPERATING WEIGHT & LOAD CAPACITY

Extension Deck Capacity
113kg
Max Platform Capacity
230kg
Max Platform Occupants (In/Out)
2persons
Operating Weight
2.410Ton

DIMENSIONS

Ground Clearance (Stowed)
0.10m
Overall Height (Rails Lowered)
2.00m
Overall Height (Rails Raised)
2.36m
Overall Length (Stowed)
2.48m
Overall Width
0.83m
Wheelbase
1.87m

PLATFORM & REACH PERFORMANCE

Max Platform Height
8.00m
Max Working Height
10.00m
Platform Extension Length
0.90m
Platform Size (L×W)
2.27×0.81m

SAFETY & FEATURES

Max Side Slope (Lateral)
Max Slope (Fore/Aft)
1.5°
Platform Control System
Proportional Joystick Controls
Tilt Sensor
Yes
Tires
φ381×127mm
Tyre Type
Non-Marking Tyres

BRAKE SYSTEM

Service Brake Type
Automatic Braking System

STEERING & TURNING

Steering Type
Two-Wheel Steering
Turning Radius (Inside)
0m
Turning Radius (Outside)
2.10m
