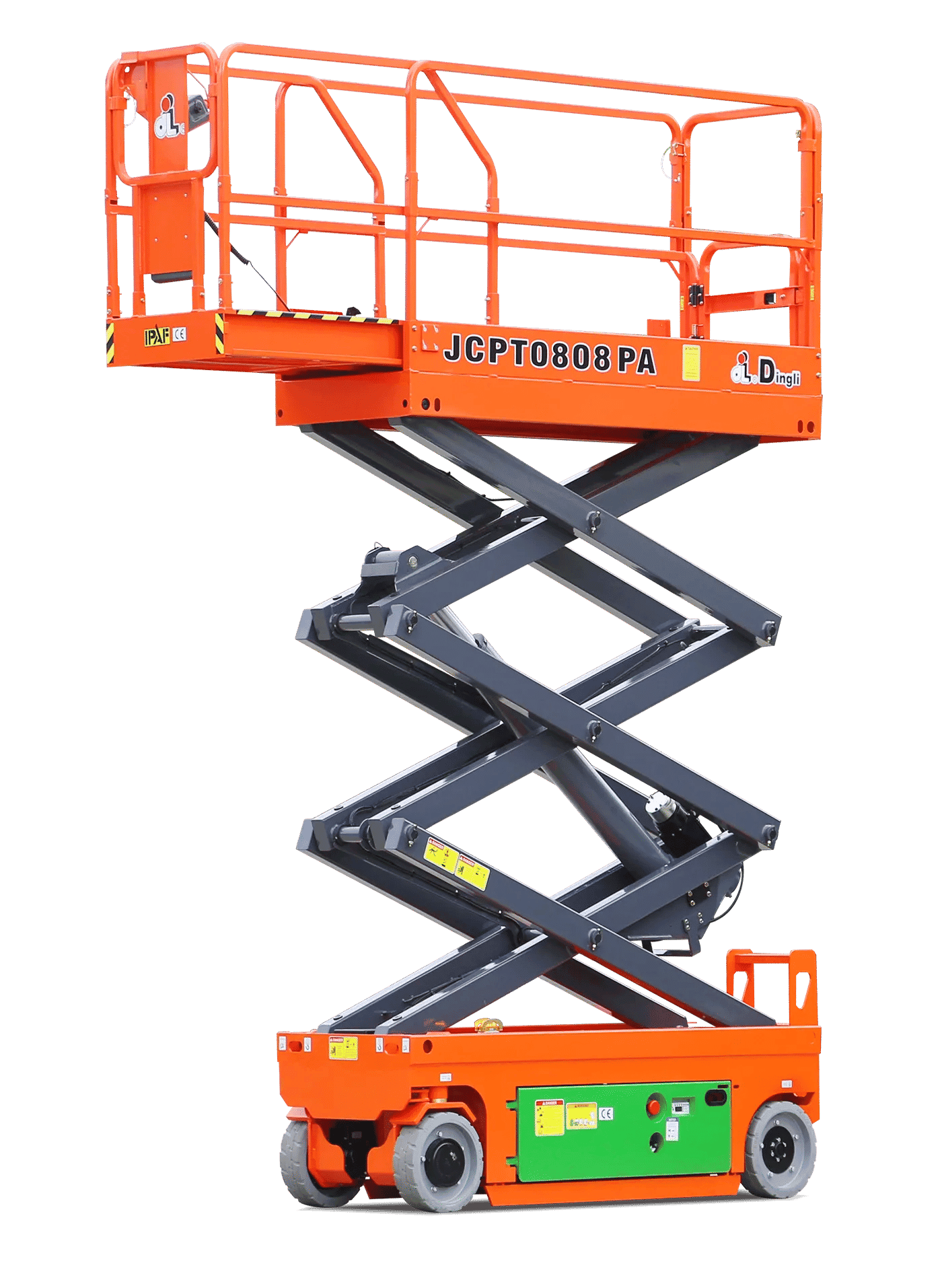

Dingli JCPT0808PA Scissor Lift Specifications

dingli

The Dingli JCPT0808PA Scissor Lift is a compact, oil-free, and eco-friendly access platform engineered for precision and indoor efficiency. Powered by electric actuators for lifting, lowering, and steering, it ensures zero emissions and ultra-low noise, making it perfect for sensitive environments like hospitals, tech labs, and commercial buildings. With a slim 0.83m width, it easily fits through narrow passages and doorways. Equipped with a 24V/185Ah high-capacity lithium battery, maintenance-free permanent magnet synchronous motor, and real-time data monitoring, it offers both performance and reliability. Features like proportional joystick control, self-gravity lowering system, and synergistic drive technology ensure operator safety, stability, and energy efficiency—delivering 30% energy savings compared to hydraulic models. The JCPT0808PA is the ideal solution for indoor maintenance, installation, and décor work.

Dingli JCPT0808PA Scissor Lift Specifications

ENGINE / BATTERY SYSTEM

Battery Type
Lead-acid / Lithium
Battery Voltage / Capacity
24V / 180Ah
Charger Output / Type
24V / 30A

TRANSMISSION & PERFORMANCE

Drive Type
Two-Wheel Drive
Gradeability
25%
Lift Time (Loaded)
36sec
Lower Time (Loaded)
36sec
Max Travel Speed (Stowed)
5.0km/h
Travel Speed (Raised)
0.8km/h

OPERATING WEIGHT & LOAD CAPACITY

Extension Deck Capacity
113kg
Max Platform Capacity
380kg
Max Platform Occupants (In/Out)
2persons
Operating Weight
2.34Ton

DIMENSIONS

Ground Clearance (Stowed)
0.10m
Overall Height (Rails Lowered)
1.92m
Overall Height (Rails Raised)
2.28m
Overall Length (Stowed)
2.48m
Overall Width
0.83m
Wheelbase
1.87m

PLATFORM & REACH PERFORMANCE

Max Platform Height
6.00m
Max Working Height
8.00m
Platform Extension Length
0.90m
Platform Size (L×W)
2.27×0.81m

SAFETY & FEATURES

Max Side Slope (Lateral)
1.5°
Max Slope (Fore/Aft)
Platform Control System
Proportional Joystick Controls
Tilt Sensor
Yes
Tires
φ381×127mm
Tyre Type
Non-Marking

BRAKE SYSTEM

Service Brake Type
Automatic Braking System

STEERING & TURNING

Steering Type
Two-Wheel Steering
Turning Radius (Inside)
0m
Turning Radius (Outside)
2.10m
