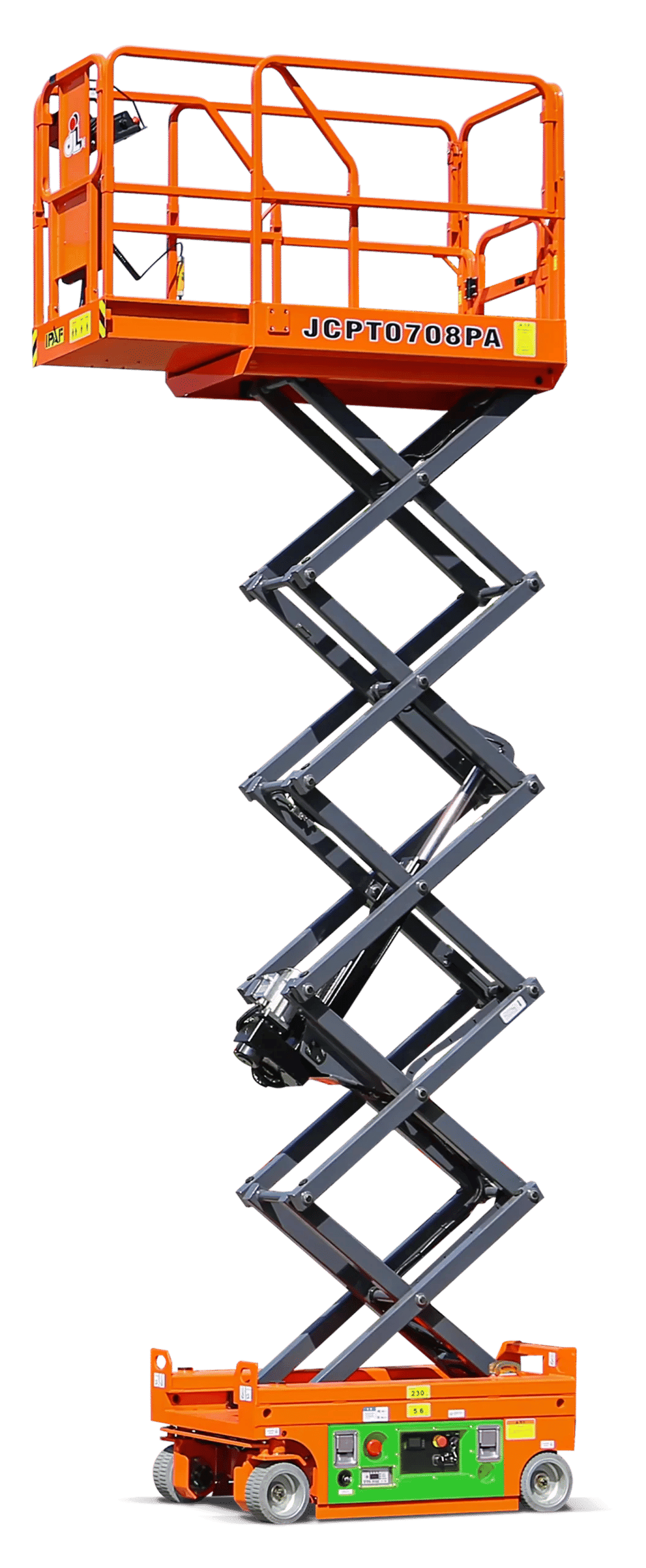

Dingli JCPT0708PA Scissor Lift Specifications

dingli

The Dingli JCPT0708PA Scissor Lift is a compact, oil-free, and eco-friendly solution designed for precision indoor tasks in tight and sensitive environments. Featuring electric actuators for lifting, lowering, and steering, it ensures zero emissions, low noise, and smooth performance, making it ideal for hospitals, malls, offices, and cleanrooms. With an overall width of just 0.81 meters, it easily fits through narrow spaces and standard doorways. The lift is powered by a 24V/115Ah high-capacity lead-acid battery, offering reliable performance and 30% energy savings over traditional hydraulic models. Key features include proportional joystick controls, self-gravity lowering for safety, real-time data monitoring, and high resistance to dust and water. Durable, efficient, and easy to operate, the JCPT0708PA is perfect for maintenance, construction, and decorative work requiring clean, controlled access.

Dingli JCPT0708PA Scissor Lift Specifications

ENGINE / BATTERY SYSTEM

Battery Voltage / Capacity
24V / 115Ah
Charger Output / Type
24V / 15A

TRANSMISSION & PERFORMANCE

Drive Type
Two-Wheel Drive
Gradeability
25%
Lift Time (Loaded)
22sec
Lower Time (Loaded)
22sec
Max Travel Speed (Stowed)
4.0km/h
Travel Speed (Raised)
0.6km/h

OPERATING WEIGHT & LOAD CAPACITY

Extension Deck Capacity
113kg
Max Platform Capacity
230kg
Max Platform Occupants (In/Out)
2persons
Operating Weight
1.34Ton

DIMENSIONS

Ground Clearance (Stowed)
0.06m
Overall Height (Rails Lowered)
1.65m
Overall Height (Rails Raised)
2.01m
Overall Length (Stowed)
1.52m
Overall Width
0.81m
Wheelbase
1.13m

PLATFORM & REACH PERFORMANCE

Max Platform Height
5.6m
Max Working Height
7.6m
Platform Extension Length
0.6m
Platform Size (L×W)
1.37m × 0.70mm

SAFETY & FEATURES

Max Side Slope (Lateral)
Max Slope (Fore/Aft)
1.5°
Platform Control System
Proportional Joystick Controls
Tilt Sensor
Yes (Tilt Alarm)
Tires
φ230×100mm
Tyre Type
Non-Marking Tyres

BRAKE SYSTEM

Service Brake Type
Automatic Braking System

STEERING & TURNING

Steering Type
Two-Wheel Steering
Turning Radius (Inside)
0.45m
Turning Radius (Outside)
1.6m
