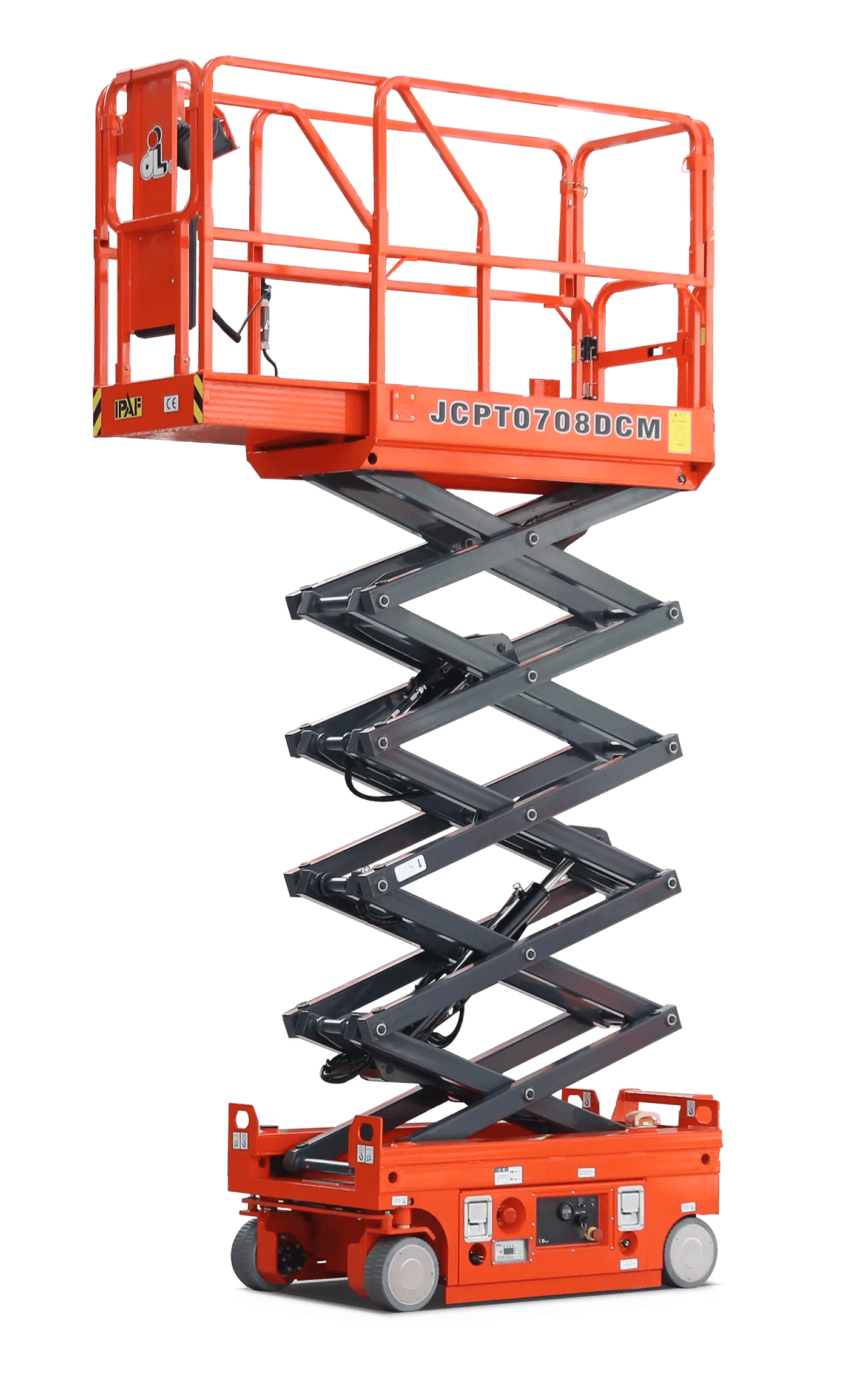

Dingli JCPT0708DCM Mini Scissor Lift Specifications

dingli

The Dingli JCPT0708DCM Mini Scissor Lift is a compact, lightweight, and eco-friendly access platform specially designed for mezzanine-level and indoor aerial work. With its small volume and flexible build, it easily fits through narrow doorways and tight workspaces, making it ideal for malls, warehouses, offices, and hospitals. This scissor lift operates with zero emissions and no noise, ensuring a clean and quiet environment for sensitive job sites. Equipped with a 24V/115Ah high-capacity battery pack, it provides dependable power for extended use while remaining easy to transport and operate. Despite its minimal footprint, it’s robust and stable, offering reliable support for light-duty maintenance, installations, and inspections. The JCPT0708DCM is the perfect solution for professionals seeking portable, efficient, and environmentally responsible elevation equipment.

Dingli JCPT0708DCM Mini Scissor Lift Specifications

ENGINE / BATTERY SYSTEM

Battery Voltage / Capacity
24V/115Ah
Charger Output / Type
24V/15A

TRANSMISSION & PERFORMANCE

Drive Type
Two-Wheel Drive
Gradeability
25%
Lift Time (Loaded)
30 sec
Lower Time (Loaded)
23sec
Max Travel Speed (Stowed)
4.0 km/h
Travel Speed (Raised)
0.6km/h

OPERATING WEIGHT & LOAD CAPACITY

Extension Deck Capacity
113 kg
Max Platform Capacity
230kg
Max Platform Occupants (In/Out)
2/0 persons
Operating Weight
1.3Ton

DIMENSIONS

Ground Clearance (Stowed)
0.06 m
Overall Height (Rails Lowered)
1.65 m
Overall Height (Rails Raised)
2.01 m
Overall Length (Stowed)
1.37 m
Overall Width
0.81m
Wheelbase
1.13 m

HYDRAULIC SYSTEM

Hydraulic Oil Capacity
4 L

PLATFORM & REACH PERFORMANCE

Max Platform Height
5.60m
Max Working Height
7.60m
Platform Extension Length
0.60 m
Platform Size (L×W)
1.37×0.70 m

SAFETY & FEATURES

Max Side Slope (Lateral)
1.5°
Max Slope (Fore/Aft)
Platform Control System
Proportional Joystick Controls
Tilt Sensor
Yes (Tilt Alarm)
Tires
φ230×100mm
Tyre Type
Non-Marking

BRAKE SYSTEM

Service Brake Type
Automatic Braking System

STEERING & TURNING

Steering Type
Two-Wheel Steering
Turning Radius (Inside)
0.45 m
Turning Radius (Outside)
1.60 m
