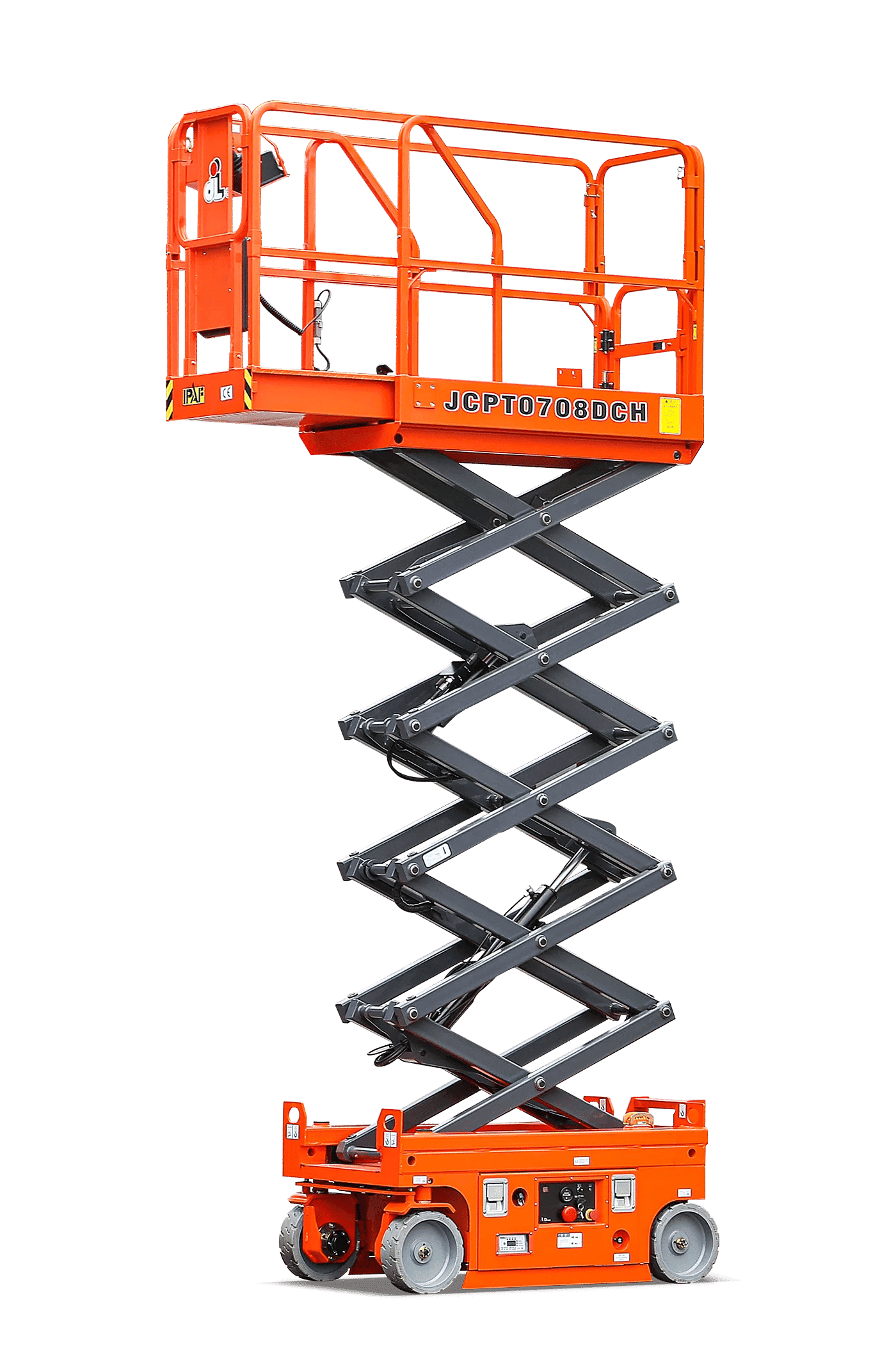

Dingli JCPT0708DCH Mini Scissor Lift Specifications

dingli

The Dingli JCPT0708DCH Mini Scissor Lift is a compact, lightweight, and highly maneuverable aerial platform designed for mezzanine-level and indoor aerial tasks. Its small volume and flexible design make it ideal for navigating tight spaces in warehouses, offices, malls, and industrial facilities. Equipped with large wheels, this model offers enhanced obstacle-crossing capability, allowing smooth operation on slightly uneven surfaces. It operates with zero emissions and no noise, making it perfect for eco-sensitive and noise-restricted environments. Powered by a reliable 24V/115Ah high-capacity battery pack, it ensures consistent performance and extended run time. Despite its lightweight build, the JCPT0708DCH is robust and stable, offering safe and efficient elevation for light-duty maintenance, inspections, and installation tasks. It’s the ideal solution for professionals needing portable, clean, and terrain-friendly lifting access.

Dingli JCPT0708DCH Mini Scissor Lift Specifications

ENGINE / BATTERY SYSTEM

Battery Voltage / Capacity
24V/115Ah
Charger Output / Type
24V/15A

TRANSMISSION & PERFORMANCE

Drive Type
Two-Wheel Drive
Gradeability
25%
Lift Time (Loaded)
30sec
Lower Time (Loaded)
23sec
Max Travel Speed (Stowed)
4.0km/h
Travel Speed (Raised)
0.6km/h

OPERATING WEIGHT & LOAD CAPACITY

Extension Deck Capacity
113kg
Max Platform Capacity
230kg
Max Platform Occupants (In/Out)
2/0persons
Operating Weight
1.3Ton

DIMENSIONS

Ground Clearance (Stowed)
0.07m
Overall Height (Rails Lowered)
1.72m
Overall Height (Rails Raised)
2.08m
Overall Length (Stowed)
1.54m
Overall Width
0.81m
Wheelbase
1.15m

HYDRAULIC SYSTEM

Hydraulic Oil Capacity
4L

PLATFORM & REACH PERFORMANCE

Max Platform Height
5.6m
Max Working Height
7.6m
Platform Extension Length
0.6m
Platform Size (L×W)
1.37×0.70m

SAFETY & FEATURES

Max Side Slope (Lateral)
X-1.5°
Max Slope (Fore/Aft)
Y-3°
Platform Control System
Proportional Joystick Controls
Tilt Sensor
Yes (Tilt Alarm)
Tires
φ305×100mm
Tyre Type
Non-Marking

BRAKE SYSTEM

Service Brake Type
Automatic Braking System

STEERING & TURNING

Steering Type
Two-Wheel Steering
Turning Radius (Inside)
0.45m
Turning Radius (Outside)
1.6m
