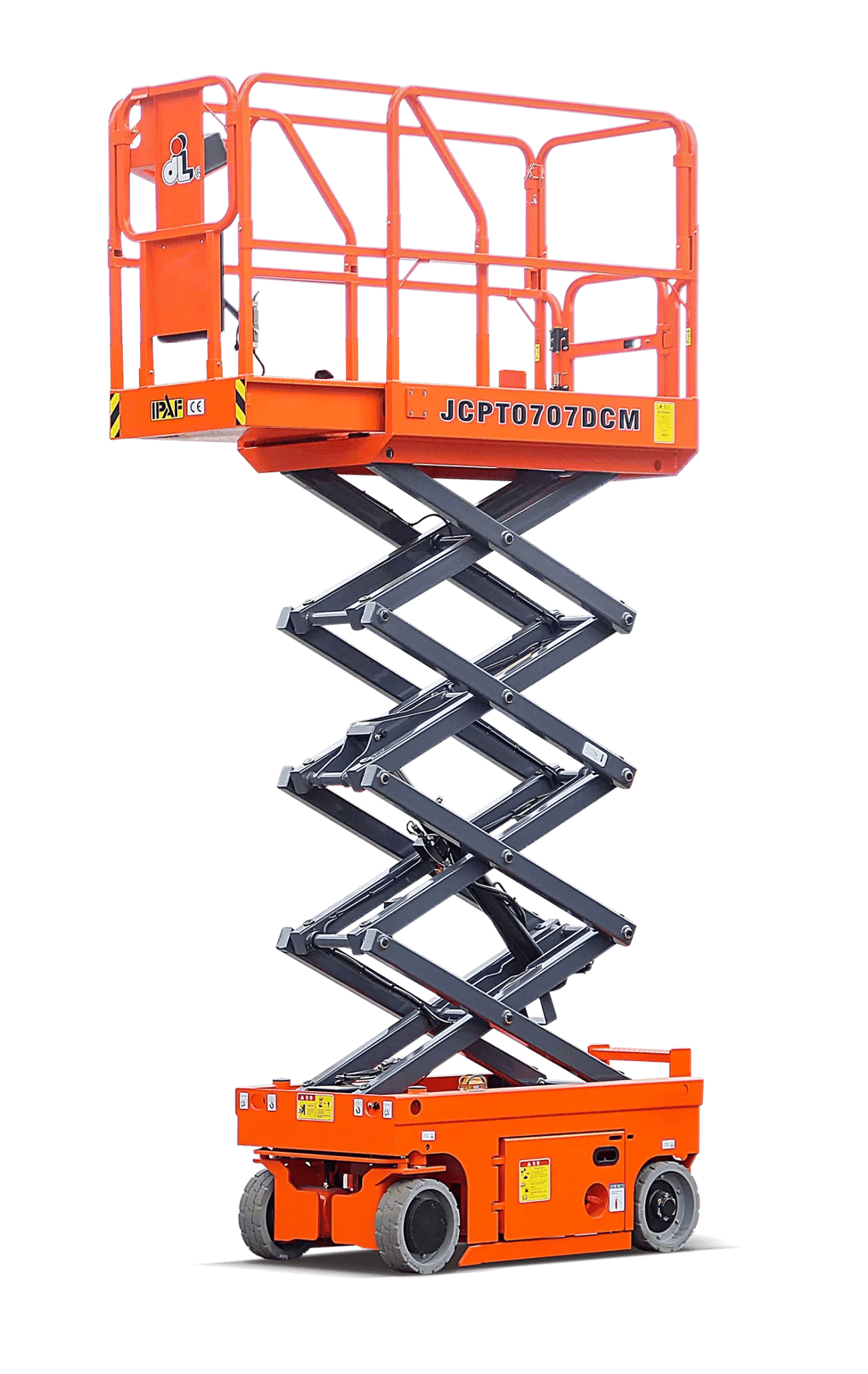

Dingli JCPT0707DCM Mini Scissor Lift Specifications

dingli

The Dingli JCPT0707DCM Mini Scissor Lift is a compact, lightweight, and environmentally friendly access solution designed for mezzanine-level and indoor aerial work. With its small volume and flexible design, it easily fits through tight spaces and standard doorways, making it ideal for use in offices, warehouses, malls, and hospitals. This mini lift operates with zero emissions and no noise, ensuring a clean and quiet working environment. Powered by a 24V/115Ah battery pack, it offers reliable performance for daily operational needs. Despite its lightweight build, the JCPT0707DCM is sturdy and durable, providing stable elevation for maintenance, installation, and inspection tasks. Easy to transport, operate, and store, this lift is a perfect choice for professionals seeking efficiency, portability, and eco-conscious performance in compact job sites.

Dingli JCPT0707DCM Mini Scissor Lift Specifications

ENGINE / BATTERY SYSTEM

Battery Voltage / Capacity
24V/115Ah
Charger Output / Type
24V/15A

TRANSMISSION & PERFORMANCE

Drive Type
Two-Wheel Drive
Gradeability
25%
Lift Time (Loaded)
22sec
Lower Time (Loaded)
20sec
Max Travel Speed (Stowed)
4.5km/h
Travel Speed (Raised)
0.6km/h

OPERATING WEIGHT & LOAD CAPACITY

Extension Deck Capacity
113kg
Max Platform Capacity
230kg
Max Platform Occupants (In/Out)
2/1persons
Operating Weight
1.2Ton

DIMENSIONS

Ground Clearance (Stowed)
0.07m
Overall Height (Rails Lowered)
1.68m
Overall Height (Rails Raised)
2.05m
Overall Length (Stowed)
1.58m
Overall Width
0.76m
Wheelbase
1.12m

HYDRAULIC SYSTEM

Hydraulic Oil Capacity
3.5L

PLATFORM & REACH PERFORMANCE

Max Platform Height
4.5m
Max Working Height
6.5m
Platform Extension Length
0.6m
Platform Size (L×W)
1.44×0.74m

SAFETY & FEATURES

Max Side Slope (Lateral)
Y-3°
Max Slope (Fore/Aft)
X-1.5°
Platform Control System
Proportional Joystick Controls
Tilt Sensor
Tilt Alarm
Tires
Φ305×100mm
Tyre Type
Non-Marking Tyres

BRAKE SYSTEM

Service Brake Type
Automatic Braking System

STEERING & TURNING

Steering Type
Two-Wheel Steering
Turning Radius (Inside)
0.0m
Turning Radius (Outside)
1.3m
