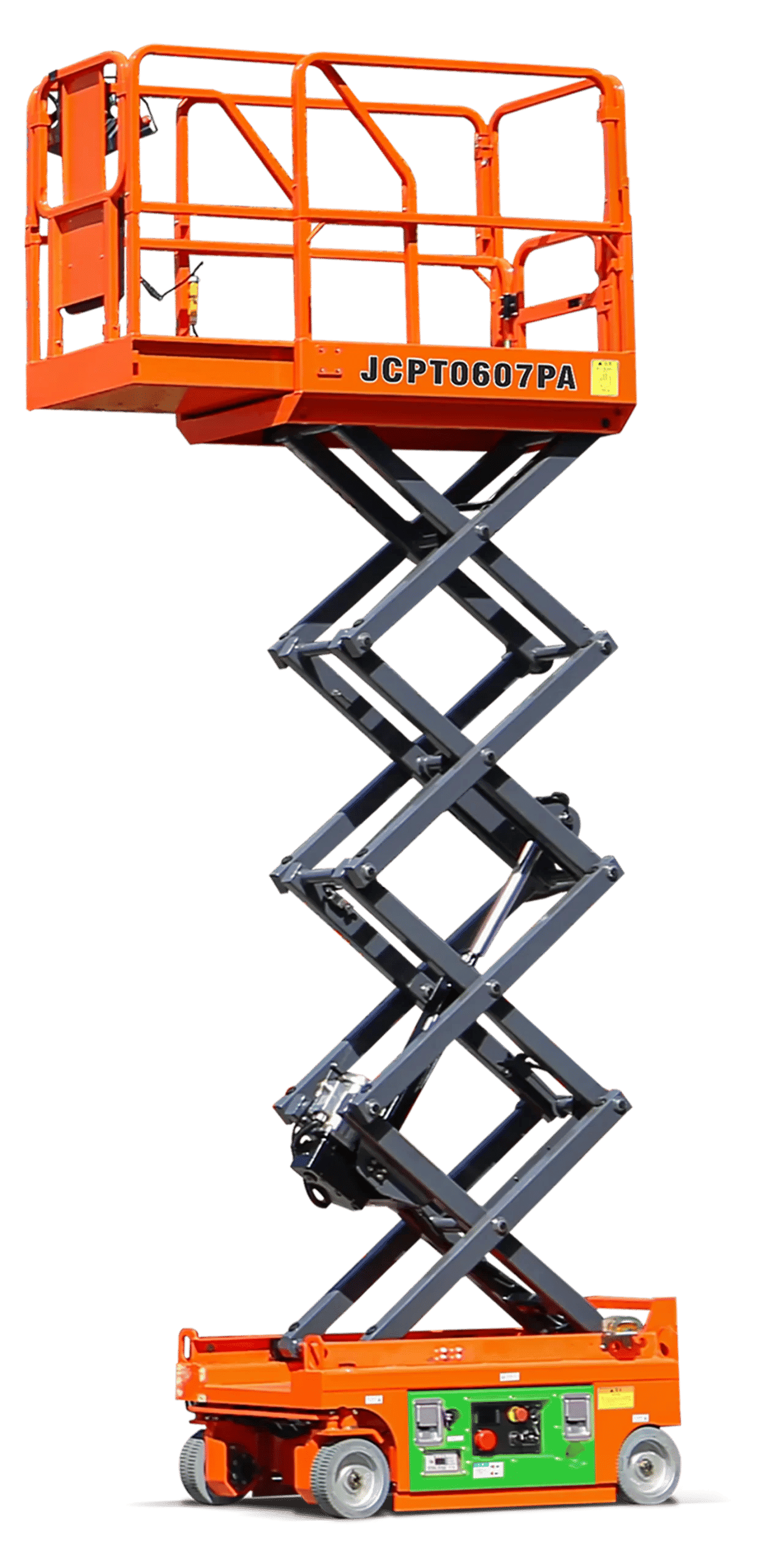

Dingli JCPT0607PA Scissor Lift Specifications

dingli

The Dingli JCPT0607PA Scissor Lift is a compact, energy-efficient, and environmentally friendly solution for indoor access needs in tight and sensitive spaces. Featuring electric actuators for lifting, lowering, and steering, it operates with zero emissions and low noise, making it perfect for hospitals, offices, labs, and cleanrooms. With a narrow 0.76m width, it easily fits through standard doorways and narrow aisles. Powered by a 24V/85Ah high-capacity lead-acid battery and a maintenance-free permanent magnet synchronous motor, it ensures reliable, long-lasting performance. Advanced features like proportional joystick controls, self-gravity lowering system, and real-time data monitoring offer enhanced safety, control, and stability. Delivering up to 30% energy savings compared to traditional hydraulic models, the JCPT0607PA is ideal for construction, maintenance, and fit-out projects that demand clean, precise, and efficient operation.

Dingli JCPT0607PA Scissor Lift Specifications

ENGINE / BATTERY SYSTEM

Battery Voltage / Capacity
24V / 85Ah
Charger Output / Type
24V / 15A

TRANSMISSION & PERFORMANCE

Drive Type
Two-Wheel Drive
Gradeability
25%
Lift Time (Loaded)
22 sec
Lower Time (Loaded)
22 sec
Max Travel Speed (Stowed)
4.0 km/h
Travel Speed (Raised)
0.5 km/h

OPERATING WEIGHT & LOAD CAPACITY

Extension Deck Capacity
100 kg
Max Platform Capacity
240 kg
Max Platform Occupants (In/Out)
2persons
Operating Weight
0.92 Ton

DIMENSIONS

Ground Clearance (Stowed)
0.06m
Overall Height (Rails Lowered)
1.62m
Overall Height (Rails Raised)
1.99 m
Overall Length (Stowed)
1.44 m
Overall Width
0.76m
Wheelbase
1.05m

PLATFORM & REACH PERFORMANCE

Max Platform Height
3.60m
Max Working Height
5.60 m
Platform Extension Length
0.60m
Platform Size (L×W)
1.29 × 0.70 m

SAFETY & FEATURES

Max Side Slope (Lateral)
1.5°
Max Slope (Fore/Aft)
Platform Control System
Proportional Joystick Controls
Tilt Sensor
Tilt Alarm
Tires
φ230×80mm
Tyre Type
Non-Marking Tyres

BRAKE SYSTEM

Service Brake Type
Automatic Braking System

STEERING & TURNING

Steering Type
Two-Wheel Steering
Turning Radius (Inside)
0.40 m
Turning Radius (Outside)
1.55 m
