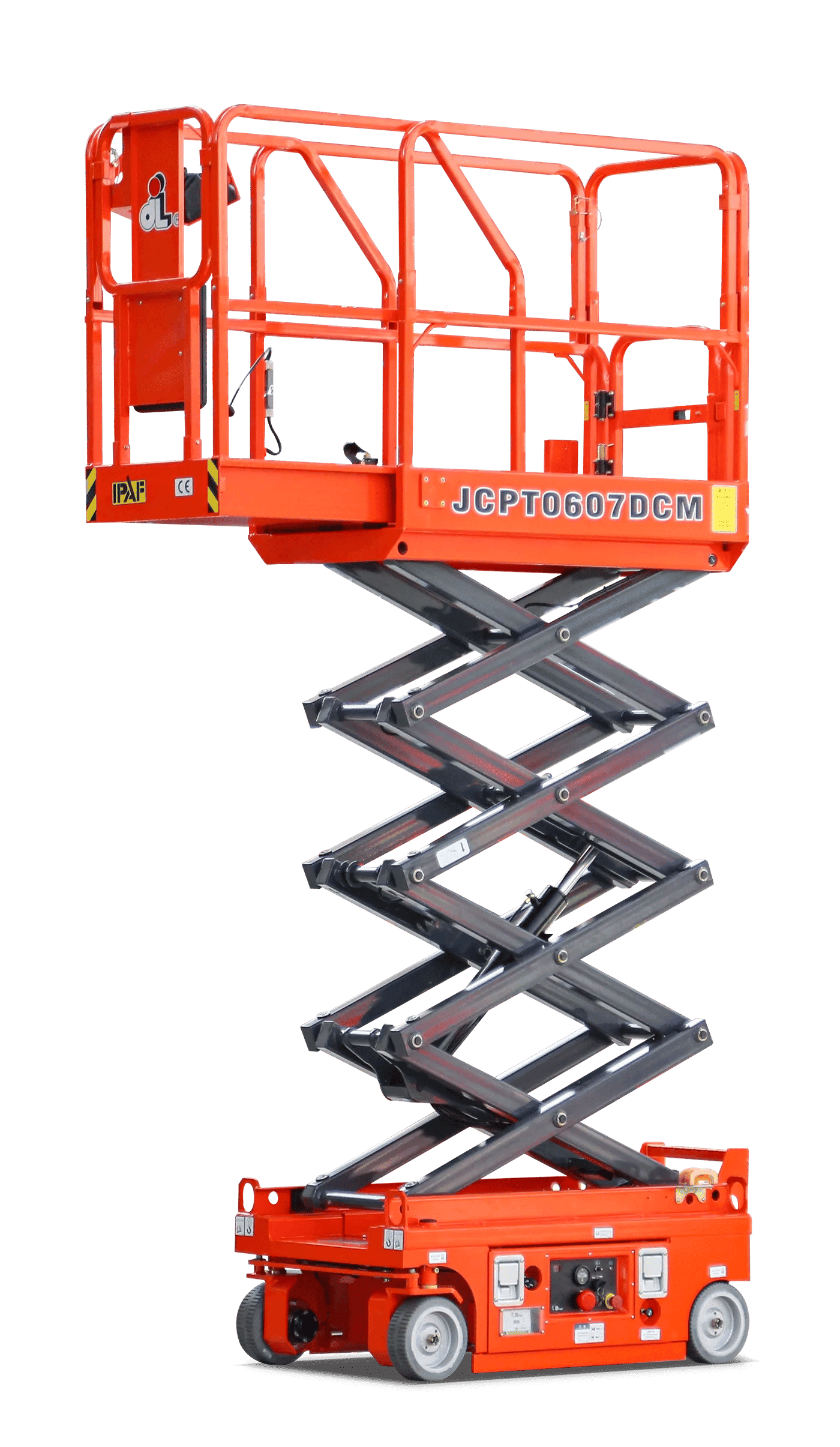

Dingli JCPT0607DCM Mini Scissor Lift Specifications

dingli

The Dingli JCPT0607DCM Mini Scissor Lift is a compact, lightweight, and eco-friendly aerial platform built for mezzanine-level and indoor access tasks. With its small volume and flexible design, it easily fits through tight spaces and narrow passages, making it ideal for use in warehouses, offices, retail stores, and public buildings. Despite its compact size, this lift is sturdy and reliable, offering safe elevation for light-duty maintenance, inspections, and installations. Powered by a 24V/85Ah battery pack, it delivers efficient performance with zero emissions and no noise, ensuring a clean, quiet operation that’s perfect for eco-sensitive and noise-restricted environments. Easy to transport and operate, the JCPT0607DCM is the perfect choice for professionals seeking a portable, sustainable, and user-friendly elevation solution in compact indoor settings.

Dingli JCPT0607DCM Mini Scissor Lift Specifications

ENGINE / BATTERY SYSTEM

Battery Voltage / Capacity
24V/85Ah
Charger Output / Type
24V/15A

TRANSMISSION & PERFORMANCE

Drive Type
Two-Wheel Drive
Gradeability
25%
Lift Time (Loaded)
27sec
Lower Time (Loaded)
20sec
Max Travel Speed (Stowed)
4.0km/h
Travel Speed (Raised)
0.6km/h

OPERATING WEIGHT & LOAD CAPACITY

Extension Deck Capacity
100kg
Max Platform Capacity
240kg
Max Platform Occupants (In/Out)
2/1persons
Operating Weight
0.92Ton

DIMENSIONS

Ground Clearance (Stowed)
0.06m
Overall Height (Rails Lowered)
1.62m
Overall Height (Rails Raised)
1.99m
Overall Length (Stowed)
1.29m
Overall Width
0.76m
Wheelbase
1.05m

HYDRAULIC SYSTEM

Hydraulic Oil Capacity
3L

PLATFORM & REACH PERFORMANCE

Max Platform Height
3.6m
Max Working Height
5.6m
Platform Extension Length
0.6m
Platform Size (L×W)
1.29m×0.70mm

SAFETY & FEATURES

Max Side Slope (Lateral)
X-1.5°
Max Slope (Fore/Aft)
Y-3°
Platform Control System
Proportional Joystick Controls
Tilt Sensor
Tilt Alarm
Tires
φ230×80mm
Tyre Type
Non-Marking Tyres

BRAKE SYSTEM

Service Brake Type
Automatic Braking System

STEERING & TURNING

Steering Type
Two-Wheel Steering
Turning Radius (Inside)
0.4m
Turning Radius (Outside)
1.55m
