Dingli JCPT0607A Scissor Lift Specifications

dingli

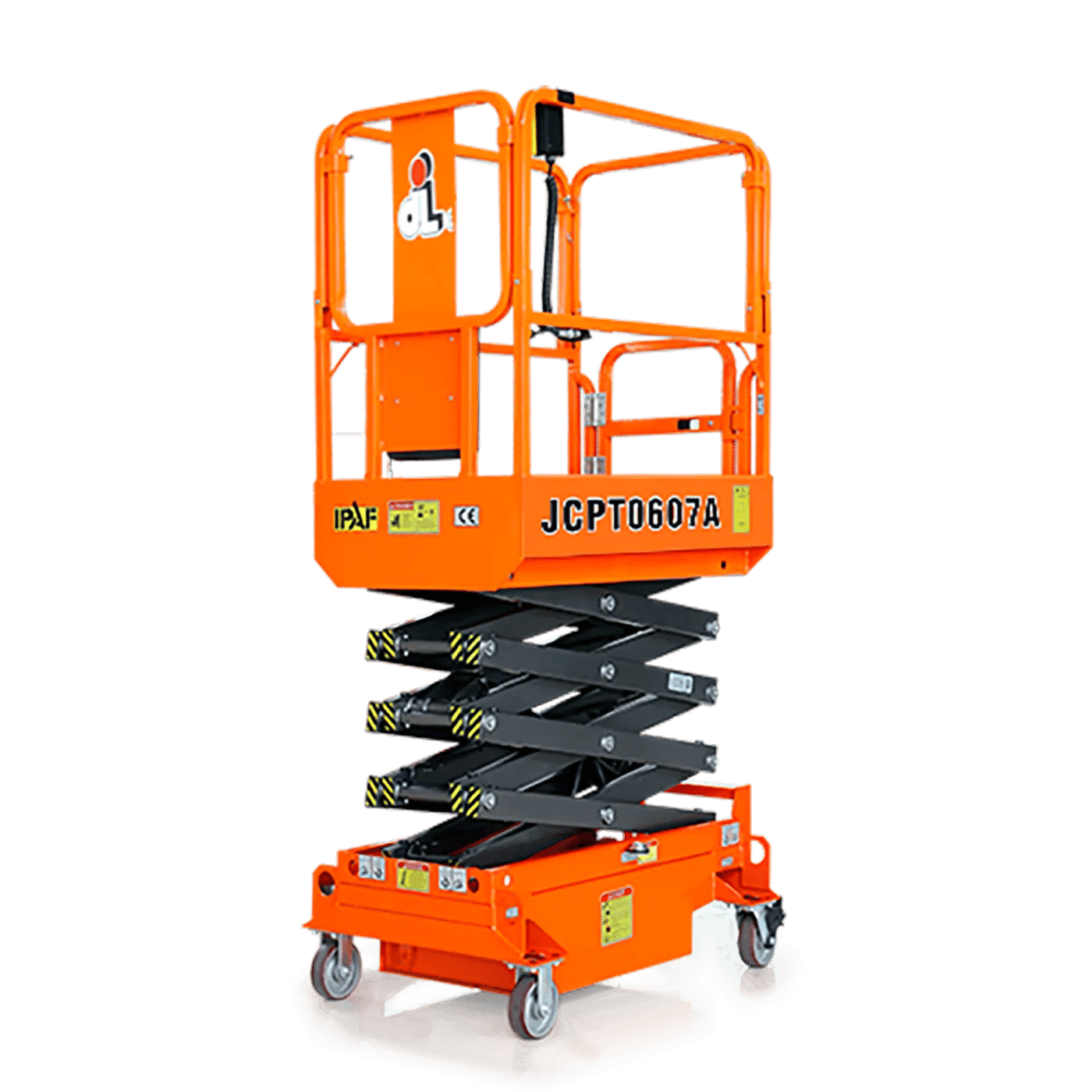

The Dingli JCPT0607A Scissor Lift is a compact, lightweight, and eco-friendly aerial work platform designed specifically for indoor and mezzanine-level operations. With its small volume design, it easily fits through narrow doorways and can access elevators, making it ideal for multi-floor tasks. Powered by a 24V/85Ah battery pack, this lift delivers reliable performance with zero emissions and no noise, ensuring a clean and quiet work environment. Its easy maneuverability and user-friendly operation make it perfect for applications in malls, offices, hospitals, and other sensitive indoor spaces. Whether you're handling electrical, plumbing, or facility maintenance, the JCPT0607A offers a safe, stable, and highly efficient solution. For projects requiring minimal disruption and maximum flexibility, this mini scissor lift is an excellent choice.

Dingli JCPT0607A Scissor Lift Specifications

ENGINE / BATTERY SYSTEM

Battery Type
Lead-acid
Battery Voltage / Capacity
12V / 85Ah
Charger Input Voltage
12V
Charger Output / Type
12V / 15A

DIMENSIONS

Ground Clearance (Stowed)
0.06m
Overall Height (Rails Lowered)
1.52m
Overall Height (Rails Raised)
1.92m
Overall Length (Stowed)
1.44m
Overall Width
0.76 m
Wheelbase
1.14 m

HYDRAULIC SYSTEM

Hydraulic Oil Capacity
3L

TRANSMISSION & PERFORMANCE

Lift Time (Loaded)
38 sec
Lower Time (Loaded)
25 sec

OPERATING WEIGHT & LOAD CAPACITY

Max Platform Capacity
240 kg
Max Platform Occupants (In/Out)
1 / 0 persons
Operating Weight
0.53 Ton

PLATFORM & REACH PERFORMANCE

Max Platform Height
3.90m
Max Working Height
5.90m
Platform Size (L×W)
1.29×0.70 m

SAFETY & FEATURES

Max Side Slope (Lateral)
Max Slope (Fore/Aft)
Platform Control System
Onboard Fault Diagnostic System
Tilt Sensor
Yes
Tires
φ150×50mm
Tyre Type
Solid Rubber

BRAKE SYSTEM

Service Brake Type
Automatic Braking System
