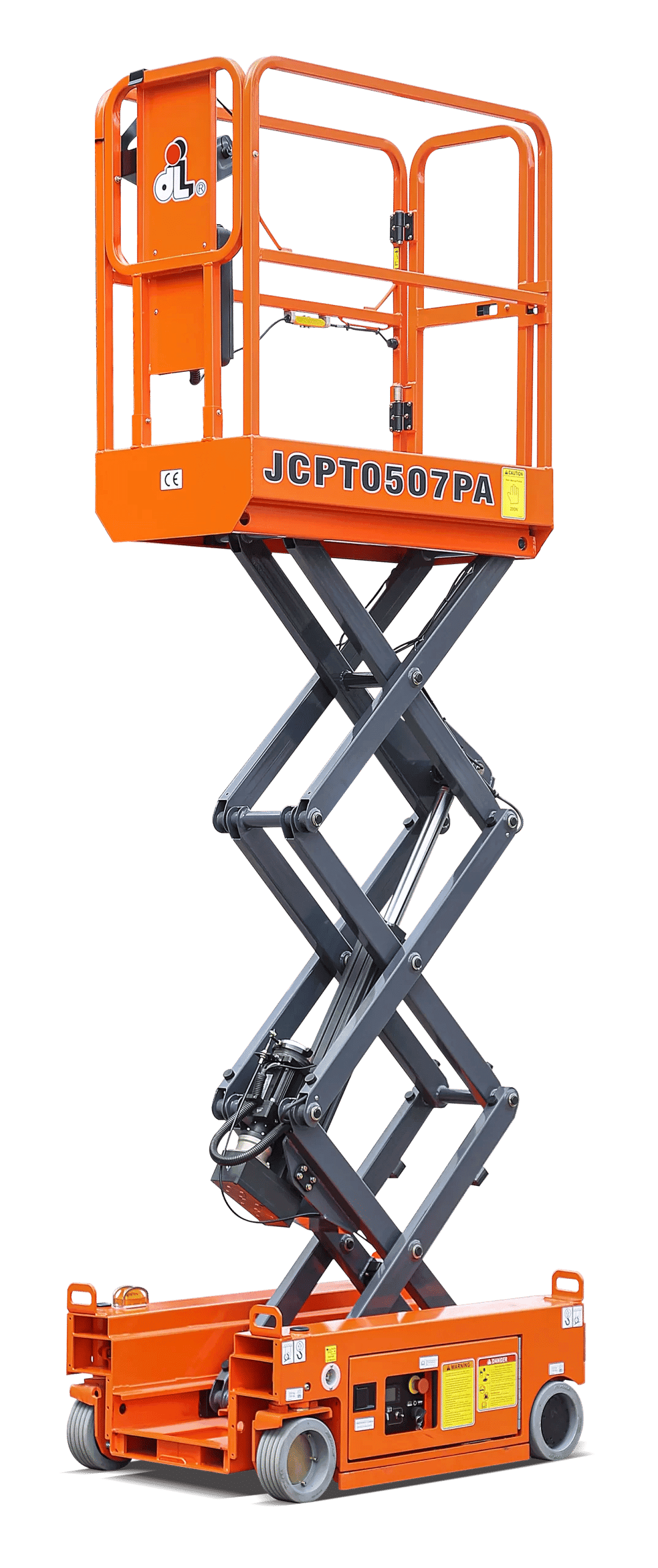

Dingli JCPT0507PA Scissor Lift Specifications

dingli

The Dingli JCPT0507PA Scissor Lift is a compact, eco-friendly, and highly maneuverable aerial platform designed specifically for mezzanine-level and indoor maintenance tasks. Powered by electric actuators for lifting, lowering, and steering, it delivers zero emissions and low noise, making it ideal for use in offices, hospitals, warehouses, and clean environments. With an overall width of just 0.77 meters, it easily fits through tight spaces and standard doorways. The lift is equipped with a 24V/55Ah high-capacity lithium battery, maintenance-free permanent magnet synchronous motor, and real-time data monitoring to ensure consistent, efficient performance. Features such as proportional joystick controls, self-gravity lowering system, and 30% energy savings over hydraulic models provide superior control, safety, and efficiency. The JCPT0507PA is the perfect solution for precise, quiet, and sustainable light-duty aerial work indoors.

Dingli JCPT0507PA Scissor Lift Specifications

ENGINE / BATTERY SYSTEM

Battery Type
Lead-acid / Lithium
Battery Voltage / Capacity
24V / 55Ah (Lead-acid), 24V / 63Ah (Lithium)
Charger Output / Type
24V / 15A

TRANSMISSION & PERFORMANCE

Drive Type
2-Wheel Drive
Gradeability
25%
Lift Time (Loaded)
20sec
Lower Time (Loaded)
20sec
Max Travel Speed (Stowed)
4.0km/h
Travel Speed (Raised)
0.4km/h

DIMENSIONS

Ground Clearance (Stowed)
0.06m
Overall Height (Rails Raised)
1.6m
Overall Length (Stowed)
1.18m
Overall Width
0.77m
Wheelbase
0.95m

OPERATING WEIGHT & LOAD CAPACITY

Max Platform Capacity
230kg
Max Platform Occupants (In/Out)
1persons
Operating Weight
0.57Ton

PLATFORM & REACH PERFORMANCE

Max Platform Height
3.05m
Max Working Height
5.05m
Platform Size (L×W)
1.16m × 0.565mm

SAFETY & FEATURES

Max Side Slope (Lateral)
X-1.5°
Max Slope (Fore/Aft)
Y-3°
Platform Control System
Proportional Joystick Controls
Tilt Sensor
Tilt Alarm
Tires
φ200×80mm, Non-Marking Tyres
Tyre Type
Non-Marking

BRAKE SYSTEM

Service Brake Type
Automatic Braking System

STEERING & TURNING

Steering Type
2-Wheel Steering
Turning Radius (Inside)
0.45m
Turning Radius (Outside)
1.2m
