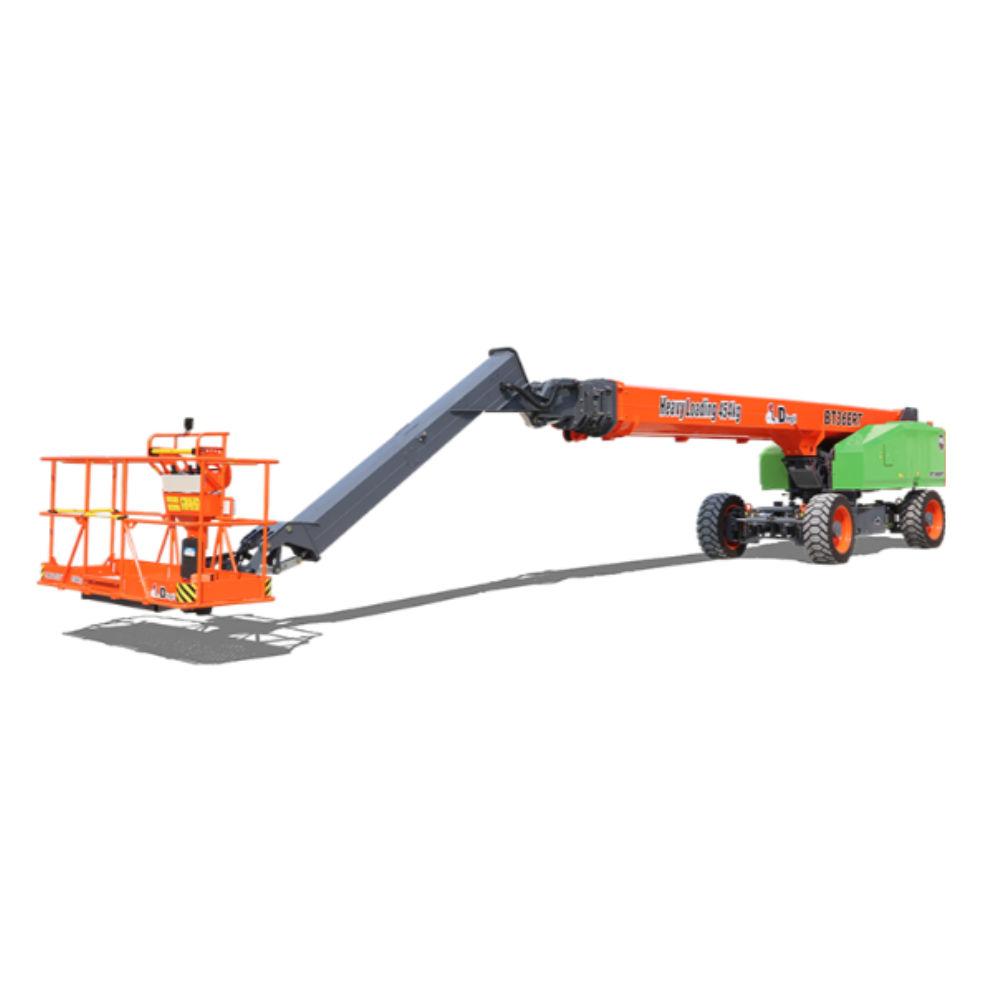

Dingli BT36ERT Boom Lift
DINGLI
The Dingli BT36ERT Boom Lift is a versatile and high-performance aerial platform ideal for a variety of industries. With a maximum working height of 36.23m and an impressive operating range of 23.60m, it is perfect for tasks requiring elevated access, including building maintenance, construction, and industrial repairs. The 360° continuous turret rotation and 180° platform rotation provide enhanced maneuverability, making it ideal for precise positioning. Its spacious platform (2.44m x 0.91m) accommodates up to three workers, making it suitable for large-scale event setups or tree trimming. The lift's 30% gradeability ensures smooth operation on sloped terrain, while the lithium battery and powerful lifting motor guarantee reliable performance. Whether for maintenance, construction, or outdoor tasks, the Dingli BT36ERT is a powerful tool for tackling tough jobs at height.
Dingli BT36ERT Boom Lift
DINGLI
The Dingli BT36ERT Boom Lift is a versatile and high-performance aerial platform ideal for a variety of industries. With a maximum working height of 36.23m and an impressive operating range of 23.60m, it is perfect for tasks requiring elevated access, including building maintenance, construction, and industrial repairs. The 360° continuous turret rotation and 180° platform rotation provide enhanced maneuverability, making it ideal for precise positioning. Its spacious platform (2.44m x 0.91m) accommodates up to three workers, making it suitable for large-scale event setups or tree trimming. The lift's 30% gradeability ensures smooth operation on sloped terrain, while the lithium battery and powerful lifting motor guarantee reliable performance. Whether for maintenance, construction, or outdoor tasks, the Dingli BT36ERT is a powerful tool for tackling tough jobs at height.
Product Description
The Dingli BT36ERT Boom Lift is a versatile and high-performance aerial platform ideal for a variety...
View the full brochure
Dingli BT36ERT Boom Lift Comparison with Similar Telescopic Boom Lift
Dingli BT36ERT Boom Lift
Engine Brand
-
Engine Model
-
Engine Power
-
Fuel Tank Capacity
-
Battery Voltage/cap.
-
Transmission Type
-
Drive Type
-
Max Travel Speed
km/h
Travel Speed (raised)
1.1km/h
Gradeability
30%
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Turning Radius (inside)
2.99m
Turning Radius (outside)
5.41m
Max Lifting Capacity (unrestricted)
300kg
Max Lifting Capacity (restricted)
454kg
Operating Weight
19.61Ton
Hydraulic Oil Capacity
230L
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
11.92m
Overall Width
4.17m
Overall Height
-
Ground Clearance
0.40m
Wheelbase
4.07m
Turntable Tail Swing
1.39m
Max Platform Height
34.23m
Max Working Height
36.23m
Max Horizontal Outreach
23.60m
Platform Rotation
180°
Turntable Rotation
360°
Jib Articulation
230°
Platform Size (l×w)
2.44×0.91m
Max Platform Occupants
3Persons
Tilt Alarm / Sensor
-
Platform Entry Type
-
Tyres
445/50-D710
Power Steering
-
Drive Enable / Alarms
-
SANY SPT22 Telescopic Boom Lift
Engine Brand
DEUTZ / KUBOTA
Engine Model
D2.9 / V2607-DI-T
Engine Power
48.8 / 49.0 HP
Fuel Tank Capacity
160L
Battery Voltage/cap.
-
Transmission Type
-
Drive Type
4WD
Max Travel Speed
5.5km/h
Travel Speed (raised)
1.1km/h
Gradeability
45 %
Service Brake Type
-
Parking Brake Type
-
Steering Type
2WS
Turning Radius (inside)
2.40m
Turning Radius (outside)
5.50m
Max Lifting Capacity (unrestricted)
300kg
Max Lifting Capacity (restricted)
480kg
Operating Weight
12.7Ton
Hydraulic Oil Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
11.0 m
Overall Width
2.45m
Overall Height
2.70m
Ground Clearance
0.31m
Wheelbase
2.50m
Turntable Tail Swing
1.50m
Max Platform Height
22.4m
Max Working Height
24.4m
Max Horizontal Outreach
16.5m
Platform Rotation
180°
Turntable Rotation
360 (Continuous) °
Jib Articulation
+70 / -65 °
Platform Size (l×w)
2.44 × 0.91 m
Max Platform Occupants
3Persons
Tilt Alarm / Sensor
X-5° / Y-5°
Platform Entry Type
-
Tyres
-
Power Steering
-
Drive Enable / Alarms
-
SANY SPT26 Telescopic Boom Lift
Engine Brand
DEUTZ / KUBOTA
Engine Model
TD2.9 / V3307-TE5B
Engine Power
74.29HP
Fuel Tank Capacity
2600L
Battery Voltage/cap.
160
Transmission Type
-
Drive Type
4WD
Max Travel Speed
6.0km/h
Travel Speed (raised)
0.8km/h
Gradeability
45%
Service Brake Type
-
Parking Brake Type
-
Steering Type
2WS
Turning Radius (inside)
3.66m
Turning Radius (outside)
6.86m
Max Lifting Capacity (unrestricted)
300kg
Max Lifting Capacity (restricted)
400kg
Operating Weight
15.7Ton
Hydraulic Oil Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
12.3m
Overall Width
2.49m
Overall Height
3.05m
Ground Clearance
0.41m
Wheelbase
3.05m
Turntable Tail Swing
1.5m
Max Platform Height
26.7m
Max Working Height
28.7m
Max Horizontal Outreach
20.3m
Platform Rotation
180°
Turntable Rotation
360 Continuous°
Jib Articulation
+70° / -65°°
Platform Size (l×w)
2.44×0.91m
Max Platform Occupants
3Persons
Tilt Alarm / Sensor
X-5° / Y-5°
Platform Entry Type
-
Tyres
-
Power Steering
-
Drive Enable / Alarms
-
Genie S-45 Trax Telescopic Boom Lift
Engine Brand
Deutz
Engine Model
D2011
Engine Power
48 HP
Fuel Tank Capacity
132L
Battery Voltage/cap.
-
Transmission Type
-
Drive Type
4WD
Max Travel Speed
6.40km/h
Travel Speed (raised)
1.1km/h
Gradeability
45 %
Service Brake Type
-
Parking Brake Type
-
Steering Type
Dual axis joystick steering
Turning Radius (inside)
2.08m
Turning Radius (outside)
5.23m
Max Lifting Capacity (unrestricted)
300kg
Max Lifting Capacity (restricted)
454kg
Operating Weight
8.623Ton
Hydraulic Oil Capacity
144L
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
9.47m
Overall Width
2.49m
Overall Height
2.51m
Ground Clearance
0.32m
Wheelbase
2.46m
Turntable Tail Swing
0.97m
Max Platform Height
13.56m
Max Working Height
15.56m
Max Horizontal Outreach
11.02m
Platform Rotation
160°
Turntable Rotation
360°
Jib Articulation
133°
Platform Size (l×w)
2.44×1.83 m
Max Platform Occupants
2Persons
Tilt Alarm / Sensor
7° / 5°
Platform Entry Type
Side swing gate
Tyres
315/55D20
Power Steering
Yes
Drive Enable / Alarms
Yes
JLG 1850SJ Telescopic Boom Lift
Engine Brand
Deutz
Engine Model
TCD 3.6L Tier IV F
Engine Power
99.8HP
Fuel Tank Capacity
170L
Battery Voltage/cap.
-
Transmission Type
-
Drive Type
-
Max Travel Speed
4.5km/h
Travel Speed (raised)
-
Gradeability
40%
Service Brake Type
-
Parking Brake Type
-
Steering Type
Axle-based
Turning Radius (inside)
2.3 / 7.12m
Turning Radius (outside)
6.6 / 9.52m
Max Lifting Capacity (unrestricted)
227kg
Max Lifting Capacity (restricted)
454kg
Operating Weight
27.17Ton
Hydraulic Oil Capacity
284.2L
Hydraulic Flow Rate
-
Hydraulic Pressure
8.25Bar
Overall Length
19.45m
Overall Width
2.49 / 5.0m
Overall Height
3.05m
Ground Clearance
0.34 (Axle) / 0.41 (Chassis)m
Wheelbase
5.22m
Turntable Tail Swing
2.32m
Max Platform Height
56.56m
Max Working Height
58.56m
Max Horizontal Outreach
24.38m
Platform Rotation
173°
Turntable Rotation
360°
Jib Articulation
120°
Platform Size (l×w)
2.44 × 0.91m
Max Platform Occupants
-
Tilt Alarm / Sensor
Yes (5° Tilt Cut Out)
Platform Entry Type
-
Tyres
445/50D710 Foam-filled
Power Steering
yes
Drive Enable / Alarms
-
