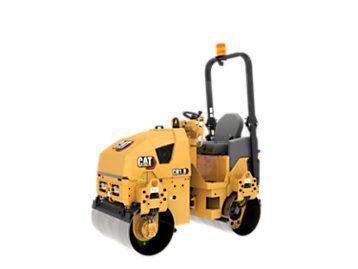

CAT CB1.8 Tandem Roller
Caterpillar
The CAT CB1.8 Compactor is a powerful and versatile utility roller designed to tackle a wide range of compaction applications. With an operating weight of 3,825 pounds (1,735 kg) and a standard compaction width of 39 inches (1,000 mm), this compact roller is ideal for smooth and efficient compaction of soil, asphalt, and other materials. Equipped with 1,000 mm (39 in) tandem vibratory drums, the CB1.8 is capable of delivering reliable and consistent results. With a gross power of 24.7 HP (18.4 kW), this compact and efficient machine is perfect for tight spaces and heavy-duty applications. Whether you need to compact soil, asphalt, or concrete, the CAT CB1.8 Compactor is a reliable and effective solution."
CAT CB1.8 Tandem Roller
Caterpillar
The CAT CB1.8 Compactor is a powerful and versatile utility roller designed to tackle a wide range of compaction applications. With an operating weight of 3,825 pounds (1,735 kg) and a standard compaction width of 39 inches (1,000 mm), this compact roller is ideal for smooth and efficient compaction of soil, asphalt, and other materials. Equipped with 1,000 mm (39 in) tandem vibratory drums, the CB1.8 is capable of delivering reliable and consistent results. With a gross power of 24.7 HP (18.4 kW), this compact and efficient machine is perfect for tight spaces and heavy-duty applications. Whether you need to compact soil, asphalt, or concrete, the CAT CB1.8 Compactor is a reliable and effective solution."
Product Description
The CAT CB1.8 Compactor is a powerful and versatile utility roller designed to tackle a wide range o...
View the full brochure
CAT CB1.8 Tandem Roller Comparison with Similar Tandem Roller
CAT CB1.8 Tandem Roller
Engine Brand
-
Engine Model
Cat C1.1
Engine Power
25HP
Max Torque
-
Rated Speed
-
Fuel Tank Capacity
30L
Displacement
-
Transmission Type
-
Max Travel Speed
-
Max Working Speed
-
Gradeability Without Vibration
-
Gradeability With Vibration
-
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius
-
Operating Weight
1735 Ton
Front Axle Load
-
Rear Axle Load
-
Hydraulic Tank Capacity
-
Frequency High
57Hz
Frequency Low
-
Amplitude High
0.47mm
Amplitude Low
-
Overall Length
2040 m
Overall Width
1112m
Overall Height
575m
Ground Clearance
-
Drum Width
1000m
Water Tank Capacity
1451L
Volvo DD90C Tandem Roller
Engine Brand
VECV
Engine Model
EE483TCI StageIV CEV
Engine Power
73.8 HP
Max Torque
-
Rated Speed
2200rpm
Fuel Tank Capacity
180 L
Displacement
-
Transmission Type
Closed-loop hydrostatic, parallel circuit to both drums
Max Travel Speed
12km/h
Max Working Speed
7 km/h
Gradeability Without Vibration
30%
Gradeability With Vibration
-
Service Brake Type
Dynamic hydrostatic through propulsion system
Parking Brake Type
SAHR on both drum drives
Steering Type
Articulated frame, center pivot steering
Steering Angle
30°
Oscillation Angle
10°
Turning Radius
7.285 m
Operating Weight
8.7Ton
Front Axle Load
4.22kg
Rear Axle Load
4.48kg
Hydraulic Tank Capacity
80L
Frequency High
50 Hz
Frequency Low
36 Hz
Amplitude High
1.0 mm
Amplitude Low
0.36mm
Overall Length
4.970 m
Overall Width
1.835 m
Overall Height
3.050m
Ground Clearance
305mm
Drum Width
1.676m
Water Tank Capacity
700L
Volvo DD90B Tandem Roller
Engine Brand
Kirloskar
Engine Model
4R1040TC BS -III (CEV)
Engine Power
75.1HP
Max Torque
-
Rated Speed
2200rpm
Fuel Tank Capacity
145L
Displacement
-
Transmission Type
closed-loop hydrostatic, parallel circuit to both drums
Max Travel Speed
13km/h
Max Working Speed
7km/h
Gradeability Without Vibration
26%
Gradeability With Vibration
-
Service Brake Type
Dynamic hydrostatic through propulsion system
Parking Brake Type
SAHR on both drum drives
Steering Type
Articulated frame center pivot steering
Steering Angle
30°
Oscillation Angle
10°
Turning Radius
6.89m
Operating Weight
8.55Ton
Front Axle Load
4400kg
Rear Axle Load
4150kg
Hydraulic Tank Capacity
85L
Frequency High
50Hz
Frequency Low
36Hz
Amplitude High
1.0mm
Amplitude Low
0.36mm
Overall Length
4.7m
Overall Width
1.835m
Overall Height
3.0m
Ground Clearance
305mm
Drum Width
1.675m
Water Tank Capacity
800L
Volvo DD100 Tandem Roller
Engine Brand
Cummins
Engine Model
QSB 4.5
Engine Power
129.9HP
Max Torque
-
Rated Speed
-
Fuel Tank Capacity
189L
Displacement
-
Transmission Type
Closed-loop hydrostatic, parallel circuit to both drums
Max Travel Speed
11.4 km/h
Max Working Speed
-
Gradeability Without Vibration
-
Gradeability With Vibration
24.5%
Service Brake Type
Dynamic hydrostatic through propulsion system
Parking Brake Type
SAHR on front and rear drum drive motors
Steering Type
Center pivot (Articulated) steering
Steering Angle
40°
Oscillation Angle
10°
Turning Radius
3.558m
Operating Weight
10.025 Ton
Front Axle Load
5,200kg
Rear Axle Load
4,825kg
Hydraulic Tank Capacity
133 L
Frequency High
41.7Hz
Frequency Low
30.8 Hz
Amplitude High
1.01mm
Amplitude Low
0.41mm
Overall Length
5.086 m
Overall Width
2.845m
Overall Height
2.845m
Ground Clearance
0.430 mm
Drum Width
1.676m
Water Tank Capacity
984L
Volvo DD100C Tandem Roller
Engine Brand
VECV
Engine Model
EE494TCI-HPCR
Engine Power
99.2HP
Max Torque
-
Rated Speed
2200rpm
Fuel Tank Capacity
185L
Displacement
-
Transmission Type
Closed-loop hydrostatic, parallel circuit to both drums
Max Travel Speed
12km/h
Max Working Speed
7km/h
Gradeability Without Vibration
26%
Gradeability With Vibration
-
Service Brake Type
Dynamic hydrostatic through propulsion system
Parking Brake Type
SAHR on both drum drives
Steering Type
Articulated frame center pivot steering
Steering Angle
38°
Oscillation Angle
10°
Turning Radius
5.7m
Operating Weight
10.6Ton
Front Axle Load
5160kg
Rear Axle Load
4840kg
Hydraulic Tank Capacity
135L
Frequency High
42Hz
Frequency Low
30Hz
Amplitude High
1.01mm
Amplitude Low
0.41mm
Overall Length
5.25m
Overall Width
2.06m
Overall Height
2.87m
Ground Clearance
370mm
Drum Width
1.676m
Water Tank Capacity
492L
