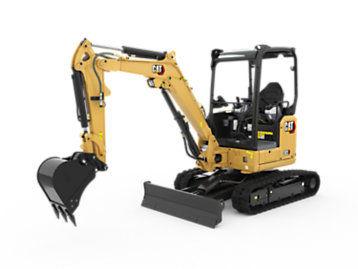

CAT 303 CR Mini Excavator
Caterpillar
Optimize your jobsite performance with the CAT 303 CR Mini Excavator, designed for power and precision in a compact package. Weighing in at 7817 pounds (3545 kg) and delivering a remarkable 23.6 horsepower (17.6 kW), this mini excavator is ideal for a wide range of applications. With a dig depth of 116.1 inches (2950 mm), you can tackle challenging projects with ease and confidence. Whether you're in the construction, landscaping, or rental industries, the CAT 303 CR is the perfect solution for your excavation needs. Its compact size, reliable performance, and robust features make it an excellent choice for any job.
CAT 303 CR Mini Excavator
Caterpillar
Optimize your jobsite performance with the CAT 303 CR Mini Excavator, designed for power and precision in a compact package. Weighing in at 7817 pounds (3545 kg) and delivering a remarkable 23.6 horsepower (17.6 kW), this mini excavator is ideal for a wide range of applications. With a dig depth of 116.1 inches (2950 mm), you can tackle challenging projects with ease and confidence. Whether you're in the construction, landscaping, or rental industries, the CAT 303 CR is the perfect solution for your excavation needs. Its compact size, reliable performance, and robust features make it an excellent choice for any job.
Product Description
Optimize your jobsite performance with the CAT 303 CR Mini Excavator, designed for power and precisi...
View the full brochure
CAT 303 CR Mini Excavator Comparison with Similar Mini Excavators
CAT 303 CR Mini Excavator
Engine Brand
caterpiller
Engine Model
C1.1 Turbo
Engine Power
23.6HP
Max Torque
-
Rated Speed
-
Displacement
1.1L
Fuel Tank Capacity
45L
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
3.54Ton
Max Digging Depth
2.95m
Max Reach At Ground
5.11m
Max Digging Height
4.65m
Max Dumping Height
-
Bucket Capacity
-
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
2.07m
Overall Height
2.48m
Ground Clearance
0.31mm
Sany SY20U Mini Excavator
Engine Brand
YANMAR
Engine Model
3TNV80F
Engine Power
19.8HP
Max Torque
67.4Nm
Rated Speed
2400rpm
Displacement
1.22L
Fuel Tank Capacity
21L
Hydraulic Flow Rate
70L/min
Hydraulic Pressure (implement Circuit)
250kgf/cm²
Hydraulic Pressure (swing Circuit)
166kgf/cm²
Hydraulic Pressure (travel Circuit)
250kgf/cm²
Hydraulic Pressure (pilot Circuit)
41kgf/cm²
Operating Weight
1.95Ton
Max Digging Depth
2.38m
Max Reach At Ground
4.01m
Max Digging Height
3.41m
Max Dumping Height
2.35m
Bucket Capacity
0.05m³
Bucket Breakout Force
1692.72kgf
Arm Crowd Force
938.13kgf
Overall Length
3.515m
Overall Height
2.49m
Ground Clearance
160mm
Hyundai R35Z-9 Mini Excavator
Engine Brand
Yanmar
Engine Model
3TNV88
Engine Power
-
Max Torque
106.8Nm
Rated Speed
-
Displacement
1.642L
Fuel Tank Capacity
42L
Hydraulic Flow Rate
111.7L/min
Hydraulic Pressure (implement Circuit)
230kgf/cm²
Hydraulic Pressure (swing Circuit)
200kgf/cm²
Hydraulic Pressure (travel Circuit)
230kgf/cm²
Hydraulic Pressure (pilot Circuit)
30kgf/cm²
Operating Weight
3.75Ton
Max Digging Depth
3.15m
Max Reach At Ground
5.24m
Max Digging Height
-
Max Dumping Height
-
Bucket Capacity
-
Bucket Breakout Force
-
Arm Crowd Force
1990kgf
Overall Length
4.79m
Overall Height
-
Ground Clearance
290mm
Kobelco SK30SR Mini Excavator
Engine Brand
YANMAR
Engine Model
3TNV82A-8
Engine Power
24.27 HP
Max Torque
79.4Nm
Rated Speed
2400rpm
Displacement
-
Fuel Tank Capacity
42L
Hydraulic Flow Rate
96.0L/min
Hydraulic Pressure (implement Circuit)
234.6 kgf/cm²
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
3.57 / 3.41 Ton
Max Digging Depth
-
Max Reach At Ground
-
Max Digging Height
-
Max Dumping Height
-
Bucket Capacity
0.12m³
Bucket Breakout Force
2,823.4 kgf
Arm Crowd Force
1,947.9 / 1,682.0 kgf
Overall Length
-
Overall Height
-
Ground Clearance
-
CAT 302.7 CR Mini Excavator
Engine Brand
caterpiller
Engine Model
C1.1 Turbo
Engine Power
23.6HP
Max Torque
-
Rated Speed
-
Displacement
1.13L
Fuel Tank Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
3.05Ton
Max Digging Depth
2.71m
Max Reach At Ground
4.7m
Max Digging Height
4.38m
Max Dumping Height
-
Bucket Capacity
-
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
4.23m
Overall Height
2.47m
Ground Clearance
-
