CAT 300.9D VPS Mini Excavator
Caterpillar

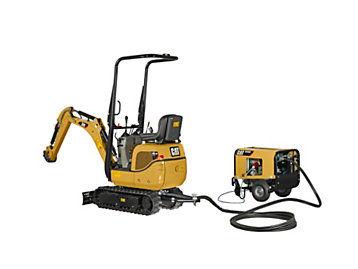

Introducing the CAT 300.9D VPS with HPU300 Mini Excavator, the ultimate solution for versatility and compact operation. This innovative excavator offers a choice between diesel and electric power, making it perfect for a wide range of applications. With a net power of 13 hp and an operating weight of 2399 lbs, it's designed to deliver exceptional performance in tight spaces. The 300.9D VPS can dig depths of up to 68 inches, making it ideal for tasks such as landscaping, excavation, and construction. With its compact size and powerful engine, this mini excavator is sure to increase productivity and efficiency on any job site.
CAT 300.9D VPS Mini Excavator
Caterpillar
Introducing the CAT 300.9D VPS with HPU300 Mini Excavator, the ultimate solution for versatility and compact operation. This innovative excavator offers a choice between diesel and electric power, making it perfect for a wide range of applications. With a net power of 13 hp and an operating weight of 2399 lbs, it's designed to deliver exceptional performance in tight spaces. The 300.9D VPS can dig depths of up to 68 inches, making it ideal for tasks such as landscaping, excavation, and construction. With its compact size and powerful engine, this mini excavator is sure to increase productivity and efficiency on any job site.
Product Description
Introducing the CAT 300.9D VPS with HPU300 Mini Excavator, the ultimate solution for versatility and...
View the full brochure
CAT 300.9D VPS Mini Excavator Comparison with Similar Mini Excavators
CAT 300.9D VPS Mini Excavator
Bucket Capacity
-
Bucket Breakout Force
-
Arm Crowd Force
-
Max Reach At Ground
3.02m
Max Digging Height
-
Max Dumping Height
2.03m
Engine Brand
Yanmar
Engine Model
3TNV70
Engine Power
13 HP
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
9.84L
Hydraulic Flow Rate
22.7L/min
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Ground Clearance
-
Overall Length
-
Overall Height
-
Operating Weight
1.08Ton
Max Digging Depth
1.72m

Sany SY20U Mini Excavator
Bucket Capacity
0.05m³
Bucket Breakout Force
1692.72kgf
Arm Crowd Force
938.13kgf
Max Reach At Ground
4.01m
Max Digging Height
3.41m
Max Dumping Height
2.35m
Engine Brand
YANMAR
Engine Model
3TNV80F
Engine Power
19.8HP
Max Torque
67.4Nm
Rated Speed
2400rpm
Displacement
1.22L
Fuel Tank Capacity
21L
Hydraulic Flow Rate
70L/min
Hydraulic Pressure (implement Circuit)
250kgf/cm²
Hydraulic Pressure (swing Circuit)
166kgf/cm²
Hydraulic Pressure (travel Circuit)
250kgf/cm²
Hydraulic Pressure (pilot Circuit)
41kgf/cm²
Ground Clearance
160mm
Overall Length
3.515m
Overall Height
2.49m
Operating Weight
1.95Ton
Max Digging Depth
2.38m

JCB 37C Mini Excavator
Bucket Capacity
-
Bucket Breakout Force
3304kgf
Arm Crowd Force
2009kgf
Max Reach At Ground
5.02m
Max Digging Height
4.73m
Max Dumping Height
3.54m
Engine Brand
JCB
Engine Model
Perkins 403J-17
Engine Power
25.3HP
Max Torque
91.9Nm
Rated Speed
-
Displacement
1.662L
Fuel Tank Capacity
50L
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
255kgf/cm²
Hydraulic Pressure (swing Circuit)
220kgf/cm²
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Ground Clearance
275mm
Overall Length
4.81m
Overall Height
2.48m
Operating Weight
4.05Ton
Max Digging Depth
3.34m

Empower Mini Excavator
Bucket Capacity
-
Bucket Breakout Force
-
Arm Crowd Force
-
Max Reach At Ground
-
Max Digging Height
-
Max Dumping Height
-
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Ground Clearance
-
Overall Length
-
Overall Height
-
Operating Weight
-
Max Digging Depth
-

Sany SY60C Mini Excavator
Bucket Capacity
0.26m³
Bucket Breakout Force
4590 kgf
Arm Crowd Force
3360kgf
Max Reach At Ground
6.090 m
Max Digging Height
5.690 m
Max Dumping Height
3.930 m
Engine Brand
Isuzu
Engine Model
4JG1
Engine Power
48.9HP
Max Torque
175Nm
Rated Speed
2100rpm
Displacement
3.05L
Fuel Tank Capacity
130L
Hydraulic Flow Rate
138L/min
Hydraulic Pressure (implement Circuit)
253.0kgf/cm²
Hydraulic Pressure (swing Circuit)
194.76kgf/cm²
Hydraulic Pressure (travel Circuit)
252.88kgf/cm²
Hydraulic Pressure (pilot Circuit)
35.7kgf/cm²
Ground Clearance
330mm
Overall Length
5.925m
Overall Height
2.595m
Operating Weight
-
Max Digging Depth
3.815 m
