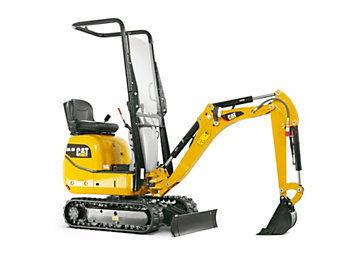

CAT 300.9D Mini Excavator
Caterpillar
Kerala
Introducing the CAT 300.9D, a new sub 3 ton mini excavator machine from Caterpillar. As a part of our expanded Cat Mini Excavator offering, this innovative machine provides customers with a lower cost entry point into the world of mini excavator ownership. With a net power of 13 hp and operating weight of 2061 lbs, the 300.9D is designed for efficiency and precision. Its impressive dig depth of 68 inches and maximum digging depth of 1731 mm make it ideal for a variety of applications, including construction, landscaping, and utility work. Whether you're a contractor or DIY enthusiast, the CAT 300.9D is a reliable and versatile choice for your next project.
CAT 300.9D Mini Excavator
Caterpillar
Kerala
Introducing the CAT 300.9D, a new sub 3 ton mini excavator machine from Caterpillar. As a part of our expanded Cat Mini Excavator offering, this innovative machine provides customers with a lower cost entry point into the world of mini excavator ownership. With a net power of 13 hp and operating weight of 2061 lbs, the 300.9D is designed for efficiency and precision. Its impressive dig depth of 68 inches and maximum digging depth of 1731 mm make it ideal for a variety of applications, including construction, landscaping, and utility work. Whether you're a contractor or DIY enthusiast, the CAT 300.9D is a reliable and versatile choice for your next project.
Product Description
Introducing the CAT 300.9D, a new sub 3 ton mini excavator machine from Caterpillar. As a part of ou...
View the full brochure
CAT 300.9D Mini Excavator Comparison with Similar Mini Excavators
CAT 300.9D Mini Excavator
Hydraulic Flow Rate
11.4 + 11.4 L/min
Bucket Capacity
-
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
-
Overall Height
-
Ground Clearance
127mm
Engine Brand
Yanmar
Engine Model
31NV70
Engine Power
13HP
Max Torque
-
Rated Speed
1.65rpm
Displacement
0.85L
Fuel Tank Capacity
9.99L
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
0.93Ton
Max Digging Depth
1.72m
Max Reach At Ground
3.02m
Max Digging Height
2.86m
Max Dumping Height
2.03m
Empower Mini Excavator
Hydraulic Flow Rate
-
Bucket Capacity
-
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
-
Overall Height
-
Ground Clearance
-
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
-
Max Digging Depth
-
Max Reach At Ground
-
Max Digging Height
-
Max Dumping Height
-
Tata Hitachi ZAXIS 33U Mini Excavator
Hydraulic Flow Rate
2×38.4L/min
Bucket Capacity
0.09m³
Bucket Breakout Force
-
Arm Crowd Force
1499kgf
Overall Length
4.45m
Overall Height
2.47m
Ground Clearance
270mm
Engine Brand
Yanmar
Engine Model
EDM-3TNV88
Engine Power
28.41HP
Max Torque
105.5Nm
Rated Speed
2200rpm
Displacement
1.642L
Fuel Tank Capacity
42L
Hydraulic Pressure (implement Circuit)
250kgf/cm²
Hydraulic Pressure (swing Circuit)
170kgf/cm²
Hydraulic Pressure (travel Circuit)
250kgf/cm²
Hydraulic Pressure (pilot Circuit)
40kgf/cm²
Operating Weight
3.65Ton
Max Digging Depth
3.13m
Max Reach At Ground
5.04m
Max Digging Height
-
Max Dumping Height
3.31m
Kobelco SK30SR Mini Excavator
Hydraulic Flow Rate
96.0L/min
Bucket Capacity
0.12m³
Bucket Breakout Force
2,823.4 kgf
Arm Crowd Force
1,947.9 / 1,682.0 kgf
Overall Length
-
Overall Height
-
Ground Clearance
-
Engine Brand
YANMAR
Engine Model
3TNV82A-8
Engine Power
24.27 HP
Max Torque
79.4Nm
Rated Speed
2400rpm
Displacement
-
Fuel Tank Capacity
42L
Hydraulic Pressure (implement Circuit)
234.6 kgf/cm²
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
3.57 / 3.41 Ton
Max Digging Depth
-
Max Reach At Ground
-
Max Digging Height
-
Max Dumping Height
-
CAT 303.5 CR Mini Excavator
Hydraulic Flow Rate
98.4L/min
Bucket Capacity
-
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
4.85m
Overall Height
2.48m
Ground Clearance
310mm
Engine Brand
Caterpillar
Engine Model
C1.7
Engine Power
23.6HP
Max Torque
-
Rated Speed
-
Displacement
1.7L
Fuel Tank Capacity
45L
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
4.19Ton
Max Digging Depth
3.1m
Max Reach At Ground
5.38m
Max Digging Height
5.02m
Max Dumping Height
-
