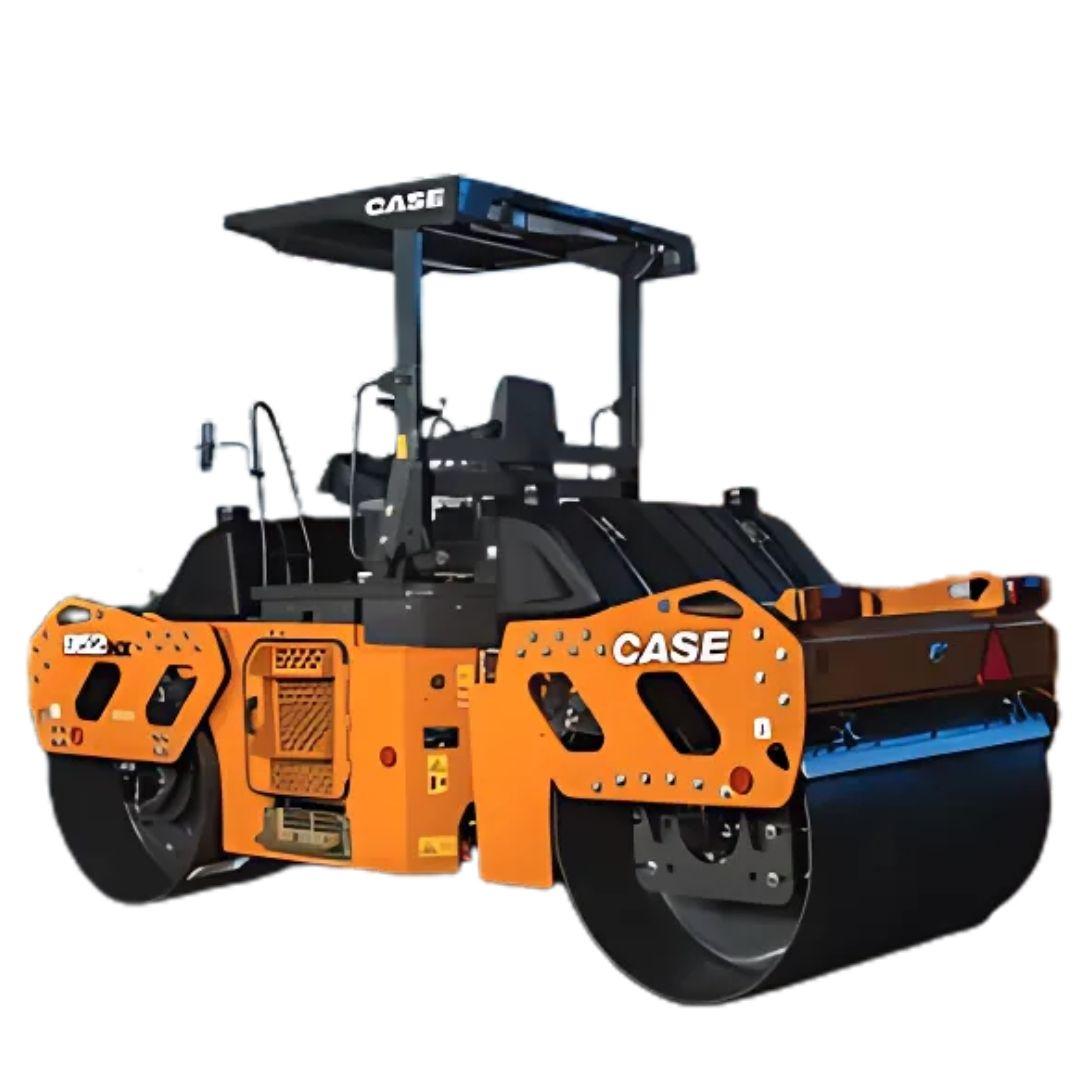

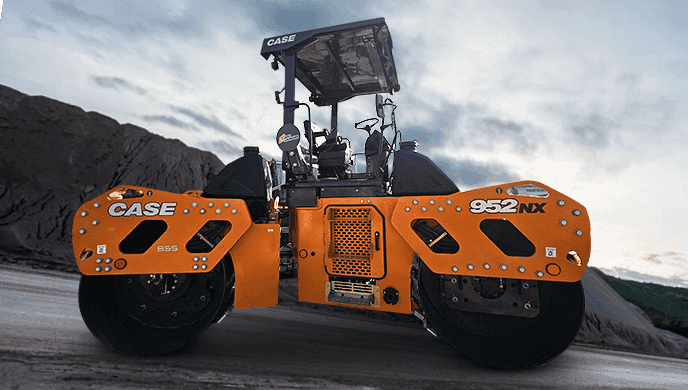

Case 952NX Vibratory Compactor
CASE Construction Equipment
Madhya Pradesh
The CASE 952NX Vibratory Compactor is a high-performance soil compaction machine engineered for durability, efficiency, and productivity on tough job sites. Built to handle the most demanding infrastructure projects, it delivers superior compaction results with minimal passes—saving both time and fuel. Ideal for road construction, highways, airports, railways, and industrial site development, the 952NX ensures uniform ground density and long-lasting surface stability. Its powerful engine, heavy-duty drum, and advanced vibration system make it suitable for compacting cohesive and granular soils alike. With easy serviceability, operator-friendly controls, and excellent maneuverability, the CASE 952NX stands out as a reliable companion for contractors and rental businesses aiming for fast, precise, and cost-effective compaction. It’s designed to perform—and built to last.
Case 952NX Vibratory Compactor
CASE Construction Equipment
Madhya Pradesh
The CASE 952NX Vibratory Compactor is a high-performance soil compaction machine engineered for durability, efficiency, and productivity on tough job sites. Built to handle the most demanding infrastructure projects, it delivers superior compaction results with minimal passes—saving both time and fuel. Ideal for road construction, highways, airports, railways, and industrial site development, the 952NX ensures uniform ground density and long-lasting surface stability. Its powerful engine, heavy-duty drum, and advanced vibration system make it suitable for compacting cohesive and granular soils alike. With easy serviceability, operator-friendly controls, and excellent maneuverability, the CASE 952NX stands out as a reliable companion for contractors and rental businesses aiming for fast, precise, and cost-effective compaction. It’s designed to perform—and built to last.
Product Description
The CASE 952NX Vibratory Compactor is a high-performance soil compaction machine engineered for dura...
View the full brochure
Case 952NX Vibratory Compactor Comparison with Similar Single Drum Soil Compactor

Case 952NX Vibratory Compactor
Engine Brand
CNH Industrial
Engine Model
F28-CF2840014
Engine Power
740HP
Max Torque
375Nm
Rated Speed
2200rpm
Displacement
2.8L
Fuel Tank Capacity
115L
Transmission Type
Hydrostatic
Max Travel Speed
12km/h
Service Brake Type
Hydrostatic
Parking Brake Type
SAHR (Spring Applied Hydraulically Released)
Steering Type
-
Steering Angle
-
Oscillation Angle
21.3°
Turning Radius (inner)
-
Turning Radius (outer)
-
Front Axle Load
4500kg
Rear Axle Load
4600kg
Static Linear Load
27.5kg/cm
Operating Weight
9.2Ton
Frequency (low)
36.5Hz
Frequency (high)
50Hz
Amplitude (low)
0.4mm
Amplitude (high)
0.9mm
Centrifugal Force
121.6kN
Max Applied Force
124kN
Without Drum Drive
36%
With Drum Drive
20%
Overall Length
4.8m
Overall Width
1.66m
Overall Height
2.46m
Ground Clearance
320mm
Drum Width
1.675m
Drum Diameter
1.29m
Drum Shell Thickness
0.017m
Rear Departure Angle
85°
Front Departure Angle
-
Hydraulic Oil Capacity
70L
Engine Oil Capacity
14L
Coolant Capacity
7L
Tyre Size
-
Battery Voltage
-
Battery Capacity
-
Gradeability With Vibration
-
Hydraulic Tank Capacity
-
Frequency High
-
Frequency Low
-
Amplitude High
-
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
-
Water Tank Capacity
-
Turning Radius
-

Sany SSR220C-8H Single Drum Soil Compactor
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Transmission Type
-
Max Travel Speed
-
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (inner)
-
Turning Radius (outer)
-
Front Axle Load
-
Rear Axle Load
-
Static Linear Load
-
Operating Weight
-
Frequency (low)
-
Frequency (high)
-
Amplitude (low)
-
Amplitude (high)
-
Centrifugal Force
-
Max Applied Force
-
Without Drum Drive
-
With Drum Drive
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Drum Width
-
Drum Diameter
-
Drum Shell Thickness
-
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Coolant Capacity
-
Tyre Size
-
Battery Voltage
-
Battery Capacity
-
Gradeability With Vibration
-
Hydraulic Tank Capacity
-
Frequency High
-
Frequency Low
-
Amplitude High
-
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
-
Water Tank Capacity
-
Turning Radius
-

LiuGong 611 Soil Compactor
Engine Brand
Kirloskar
Engine Model
4R1190TA1
Engine Power
110 HP
Max Torque
450 Nm
Rated Speed
2200 rpm
Displacement
4.76 L
Fuel Tank Capacity
280 L
Transmission Type
Hydrostatic
Max Travel Speed
13 km/h
Service Brake Type
Hydrostatic Propulsion System
Parking Brake Type
Spring Applied, Hydraulic Release
Steering Type
Articulation
Steering Angle
70 (±35°) °
Oscillation Angle
-
Turning Radius (inner)
-
Turning Radius (outer)
<6.75 m
Front Axle Load
-
Rear Axle Load
-
Static Linear Load
-
Operating Weight
11.0 Ton
Frequency (low)
32Hz
Frequency (high)
34 Hz
Amplitude (low)
0.8 mm
Amplitude (high)
1.8 mm
Centrifugal Force
125 kN
Max Applied Force
385.32 kN
Without Drum Drive
-
With Drum Drive
35 %
Overall Length
5.9 m
Overall Width
2.3 m
Overall Height
3.232 m
Ground Clearance
460 mm
Drum Width
2.13 m
Drum Diameter
1.5 m
Drum Shell Thickness
-
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
90 L
Engine Oil Capacity
8.5 L
Coolant Capacity
18 L
Tyre Size
23.1-26-12PR
Battery Voltage
12 V
Battery Capacity
150 Ah
Gradeability With Vibration
-
Hydraulic Tank Capacity
-
Frequency High
-
Frequency Low
-
Amplitude High
-
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
-
Water Tank Capacity
-
Turning Radius
-

Volvo SD110CD Soil Compactor
Engine Brand
VECV
Engine Model
EE494 TCI-HPCR
Engine Power
-
Max Torque
-
Rated Speed
2,200rpm
Displacement
-
Fuel Tank Capacity
-
Transmission Type
-
Max Travel Speed
12km/h
Service Brake Type
Hydrostatic
Parking Brake Type
Spring-applied, hydraulically released on axle and drum
Steering Type
-
Steering Angle
-
Oscillation Angle
17°
Turning Radius (inner)
-
Turning Radius (outer)
-
Front Axle Load
-
Rear Axle Load
-
Static Linear Load
-
Operating Weight
11.2Ton
Frequency (low)
-
Frequency (high)
-
Amplitude (low)
-
Amplitude (high)
-
Centrifugal Force
-
Max Applied Force
-
Without Drum Drive
-
With Drum Drive
-
Overall Length
5.875m
Overall Width
2.340m
Overall Height
3.250m
Ground Clearance
472mm
Drum Width
2.134m
Drum Diameter
-
Drum Shell Thickness
-
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Coolant Capacity
-
Tyre Size
-
Battery Voltage
-
Battery Capacity
-
Gradeability With Vibration
-
Hydraulic Tank Capacity
70L
Frequency High
30Hz
Frequency Low
0Hz
Amplitude High
1.9mm
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
1.0mm
Water Tank Capacity
-
Turning Radius
-

Dynapac CA405D CEV-V Single drum vibratory rollers
Engine Brand
Cummins
Engine Model
-
Engine Power
121HP
Max Torque
-
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
280L
Transmission Type
Hydrostatic
Max Travel Speed
10.8km/h
Service Brake Type
Hydrostatic in forward and reverse lever
Parking Brake Type
Failsafe multidisc brake in rear axle and front drum motor
Steering Type
Hydrostatic
Steering Angle
38°
Oscillation Angle
9°
Turning Radius (inner)
3.385m
Turning Radius (outer)
5.515m
Front Axle Load
8580kg
Rear Axle Load
5260kg
Static Linear Load
40.3kg/cm
Operating Weight
13.960Ton
Frequency (low)
33Hz
Frequency (high)
33Hz
Amplitude (low)
0.8mm
Amplitude (high)
1.7mm
Centrifugal Force
300kN
Max Applied Force
-
Without Drum Drive
50%
With Drum Drive
-
Overall Length
5.600m
Overall Width
2.300m
Overall Height
2.977m
Ground Clearance
520mm
Drum Width
2.130m
Drum Diameter
1.543m
Drum Shell Thickness
0.035m
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Coolant Capacity
-
Tyre Size
23.1-26 TL
Battery Voltage
-
Battery Capacity
-
Gradeability With Vibration
-
Hydraulic Tank Capacity
-
Frequency High
-
Frequency Low
-
Amplitude High
-
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
-
Water Tank Capacity
-
Turning Radius
-
