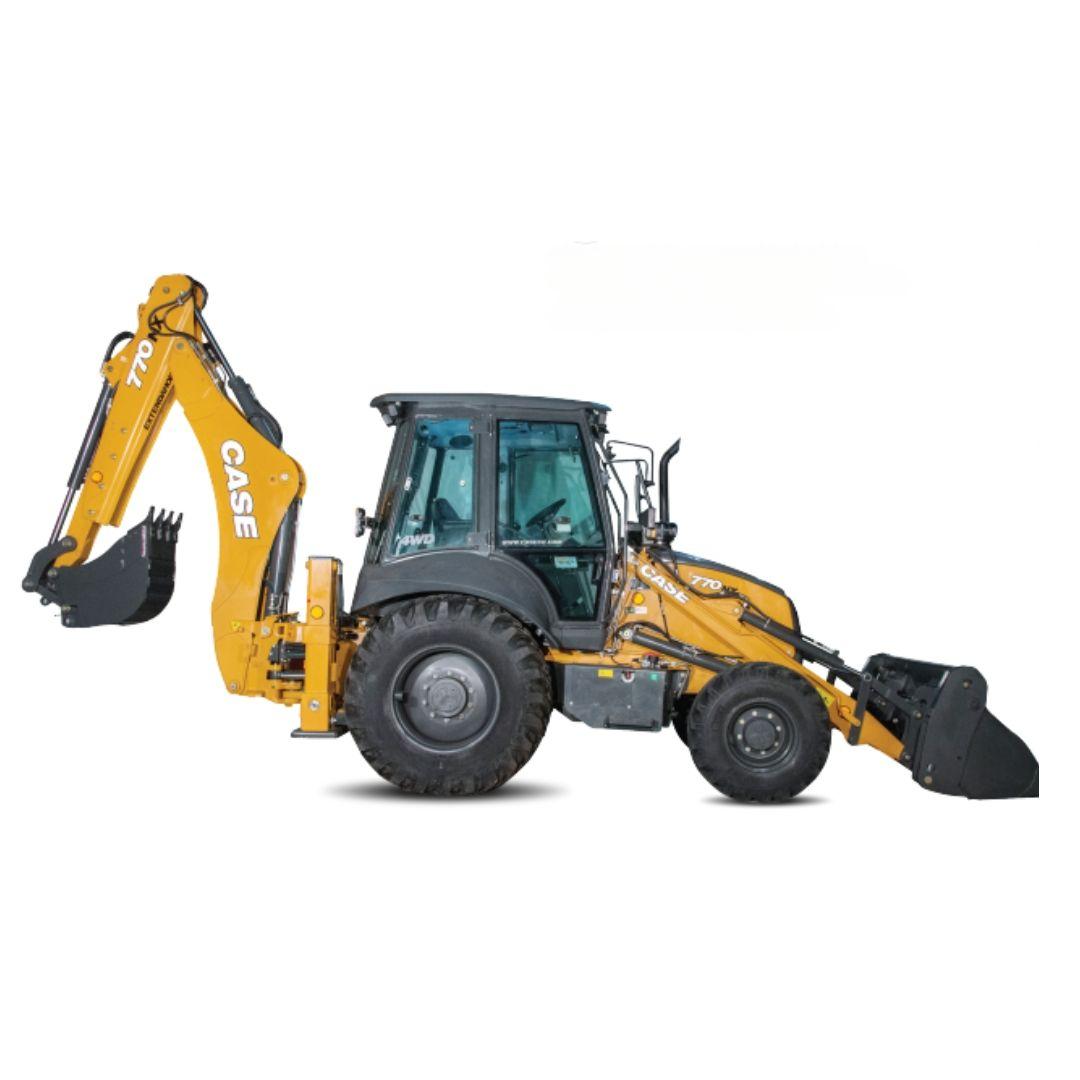

CASE 770NX Backhoe Loader
CASE Construction Equipment
Madhya Pradesh
The CASE 770NX Backhoe Loader is a high-performance machine built for demanding construction applications. Powered by a CEV Stage-V compliant F28 engine, it ensures excellent fuel efficiency and operates reliably even in extreme temperatures down to -20°C. With three work modes—ECO, STD, and POWER—it adapts to varying site needs, while the electro-hydraulic variable displacement pump boosts productivity. It supports over 30 attachments and a wide range of bucket sizes, making it ideal for digging, trenching, material handling, and more. The spacious operator cabin offers near 360° visibility, ergonomic controls, and Bluetooth connectivity for enhanced comfort. Integrated with myCASE Telematics, it enables real-time monitoring, fleet management, and data-driven decisions—making it a perfect fit for infrastructure, utilities, and fleet-based operations.
CASE 770NX Backhoe Loader
CASE Construction Equipment
Madhya Pradesh
The CASE 770NX Backhoe Loader is a high-performance machine built for demanding construction applications. Powered by a CEV Stage-V compliant F28 engine, it ensures excellent fuel efficiency and operates reliably even in extreme temperatures down to -20°C. With three work modes—ECO, STD, and POWER—it adapts to varying site needs, while the electro-hydraulic variable displacement pump boosts productivity. It supports over 30 attachments and a wide range of bucket sizes, making it ideal for digging, trenching, material handling, and more. The spacious operator cabin offers near 360° visibility, ergonomic controls, and Bluetooth connectivity for enhanced comfort. Integrated with myCASE Telematics, it enables real-time monitoring, fleet management, and data-driven decisions—making it a perfect fit for infrastructure, utilities, and fleet-based operations.
Product Description
The CASE 770NX Backhoe Loader is a high-performance machine built for demanding construction applica...
View the full brochure
CASE 770NX Backhoe Loader Comparison with Similar Backhoe Loader
CASE 770NX Backhoe Loader
Engine Model
F28-CF20A00140
Rated Speed
2200rpm
Engine Power
376HP
Displacement
2.00L
Max Torque
376Nm
Engine Brand
CNH
Fuel Tank Capacity
129L
Transmission Type
AF-4 Power Shuttle Synchromesh
Number Of Gears (forward/reverse)
5 / 4
Torque Converter Stall Ratio
-
Max Travel Speed
5.7km/h
Service Brake Type
Caliper disc, rear axle
Parking Brake Type
Mechanically actuated
Steering Type
Power Steering
Steering Angle
-
Oscillation Angle
21°
Turning Radius (braked)
6.95m
Turning Radius (unbraked)
5.55m
Max Lifting Capacity
-
Operating Weight
7.6Ton
Hydraulic Flow Rate
7.6L/min
Hydraulic Pressure
240Bar
Max Digging Depth
4.4m
Max Reach At Ground
5.63m
Max Reach At Full Height
1.19m
Max Loading Height
3.6m
Bucket Capacity
0.26m³
Bucket Breakout Force
5000kgf
Dipper Breakout Force
3200kgf
Max Dump Height
2.72m
Max Load Over Height
3.6m
Max Hinge Pin Height
3.6m
Loader Bucket Capacity
1.1m³
Loader Arm Breakout Force
5250kgf
Shovel Breakout Force
5400kgf
Overall Length
6.88m
Overall Width
2.28m
Overall Height
3.85m
Ground Clearance
380mm
Power Steering
Yes
Battery Voltage
12V / 110AhV
Front Axle Oscillation
21°
Standard Tyres (front/rear)
9x16-16PR / 16.9x28-12PR
Emission Standard
-
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
-
Reach At Ground Level
-
Dump Angle
-
Lift Path
-
Wheelbase
-
Turning Radius
-
CAT 424-2 Backhoe Loader
Engine Model
C3.6
Rated Speed
2200 rpm
Engine Power
75HP
Displacement
-
Max Torque
424Nm
Engine Brand
CAT
Fuel Tank Capacity
-
Transmission Type
Variable Displacement Pump
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Max Travel Speed
37km/h
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Max Lifting Capacity
-
Operating Weight
7.98 Ton
Hydraulic Flow Rate
132L/min
Hydraulic Pressure
-
Max Digging Depth
4.729m
Max Reach At Ground
5.612m
Max Reach At Full Height
-
Max Loading Height
4.015m
Bucket Capacity
1.05m³
Bucket Breakout Force
5,730kgf
Dipper Breakout Force
3,570kgf
Max Dump Height
2.794m
Max Load Over Height
-
Max Hinge Pin Height
-
Loader Bucket Capacity
1.05m³
Loader Arm Breakout Force
5,390kgf
Shovel Breakout Force
5,370kgf
Overall Length
5.708m
Overall Width
2.346m
Overall Height
2.346m
Ground Clearance
-
Power Steering
-
Battery Voltage
-
Front Axle Oscillation
-
Standard Tyres (front/rear)
-
Emission Standard
-
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
-
Reach At Ground Level
-
Dump Angle
-
Lift Path
-
Wheelbase
-
Turning Radius
-
CASE 770EX Backhoe Loader
Engine Model
H4C4E7422*W
Rated Speed
2200rpm
Engine Power
74HP
Displacement
3.84L
Max Torque
340Nm
Engine Brand
Ashok Leyland
Fuel Tank Capacity
129L
Transmission Type
4F-4R Power Shuttle Synchromesh Transmission
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Max Travel Speed
34.1km/h
Service Brake Type
Hydraulic foot operated, 2 disc per side
Parking Brake Type
Mechanically actuated caliper type brake pack on rear axle input shaft
Steering Type
Power Steering
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
9.2m
Turning Radius (unbraked)
11.1m
Max Lifting Capacity
3515kg
Operating Weight
7.78Ton
Hydraulic Flow Rate
126L/min
Hydraulic Pressure
195Bar
Max Digging Depth
4.40m
Max Reach At Ground
5.625m
Max Reach At Full Height
2.15m
Max Loading Height
3.8m
Bucket Capacity
0.26m³
Bucket Breakout Force
5206kgf
Dipper Breakout Force
3031kgf
Max Dump Height
2.73m
Max Load Over Height
3.3m
Max Hinge Pin Height
3.60m
Loader Bucket Capacity
1.1m³
Loader Arm Breakout Force
4750kgf
Shovel Breakout Force
-
Overall Length
5.88m
Overall Width
2.27m
Overall Height
3.85m
Ground Clearance
380mm
Power Steering
Yes
Battery Voltage
12V
Front Axle Oscillation
21°
Standard Tyres (front/rear)
Front: 9x16 -16PR / Rear: 16.9x28 -12PR
Emission Standard
-
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
-
Reach At Ground Level
-
Dump Angle
-
Lift Path
-
Wheelbase
-
Turning Radius
-
Bull HD96 4WD Backhoe Loader
Engine Model
4R 1040 T EU STAGE II (Diesel)
Rated Speed
2200rpm
Engine Power
96HP
Displacement
-
Max Torque
377Nm
Engine Brand
KIRLOSKAR
Fuel Tank Capacity
115 / 150L
Transmission Type
CARRARO synchroshuttle
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Max Travel Speed
40km/h
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Max Lifting Capacity
-
Operating Weight
8.15Ton
Hydraulic Flow Rate
134L/min
Hydraulic Pressure
240Bar
Max Digging Depth
-
Max Reach At Ground
-
Max Reach At Full Height
1.42 / 1.28m
Max Loading Height
-
Bucket Capacity
1.1m³
Bucket Breakout Force
-
Dipper Breakout Force
-
Max Dump Height
2.93 / 2.96m
Max Load Over Height
-
Max Hinge Pin Height
3.61m
Loader Bucket Capacity
-
Loader Arm Breakout Force
5251kgf
Shovel Breakout Force
-
Overall Length
6.04m
Overall Width
2.35m
Overall Height
3.71m
Ground Clearance
480mm
Power Steering
-
Battery Voltage
-
Front Axle Oscillation
-
Standard Tyres (front/rear)
-
Emission Standard
Stage II
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
125L
Reach At Ground Level
1.60 / 1.47m
Dump Angle
45°
Lift Path
-
Wheelbase
2.22m
Turning Radius
8.8 / 11.6m
ESCORTS DIGMAX II Backhoe Loader
Engine Model
4R1190NA
Rated Speed
-
Engine Power
75 HP
Displacement
-
Max Torque
300 Nm
Engine Brand
Kirloskar
Fuel Tank Capacity
134L
Transmission Type
Syncro shift reversing shuttle
Number Of Gears (forward/reverse)
(4F/ 4R )
Torque Converter Stall Ratio
-
Max Travel Speed
36.6km/h
Service Brake Type
Hydraulically actuated dual line, self adjusting, oil immersed, multi disc type
Parking Brake Type
Hand-operated caliper disc brakes
Steering Type
Hydrostatic power steering
Steering Angle
-
Oscillation Angle
16°
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Max Lifting Capacity
1980kg
Operating Weight
8.19Ton
Hydraulic Flow Rate
117.5L/min
Hydraulic Pressure
225Bar
Max Digging Depth
4.80m
Max Reach At Ground
6.97m
Max Reach At Full Height
1.22m
Max Loading Height
-
Bucket Capacity
0.26m³
Bucket Breakout Force
6425kgf
Dipper Breakout Force
6174kgf
Max Dump Height
3.00m
Max Load Over Height
3.51m
Max Hinge Pin Height
3.70m
Loader Bucket Capacity
1.2 m³
Loader Arm Breakout Force
5777kgf
Shovel Breakout Force
-
Overall Length
6.28m
Overall Width
-
Overall Height
3.78m
Ground Clearance
0.35mm
Power Steering
yes
Battery Voltage
-
Front Axle Oscillation
16°
Standard Tyres (front/rear)
9.00 x 16 - 16PR / 16.9 x 28 - 12PR
Emission Standard
-
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
-
Reach At Ground Level
-
Dump Angle
-
Lift Path
-
Wheelbase
-
Turning Radius
-
