Bull AV490 Skid Steer Loader

Bull Machines Private Limited

Tamil Nadu

The Bull AV490 Skid Steer Loader is a versatile and powerful machine designed for a wide range of construction and industrial applications. Powered by a 49.5 HP Kubota engine, it delivers exceptional performance, making it ideal for tasks such as material loading, excavation, and lifting heavy loads. With a 1.1 cu.m bucket capacity, it can efficiently transport materials across construction sites, while the precise joystick-controlled steering ensures smooth maneuvering in tight spaces. The loader also offers an impressive 604 kg rated operating capacity and a strong breakout force, making it suitable for heavy-duty lifting and digging tasks. Its compatibility with a range of attachments, such as sweepers and concrete mixers, further enhances its utility. The Bull AV490 is a reliable, high-performance machine that boosts productivity in challenging environments.

Product Description

The Bull AV490 Skid Steer Loader is a versatile and powerful machine designed for a wide range of co...

View the full brochure

Bull AV490 Skid Steer Loader Comparison with Similar Skid Steer Loader

Bull AV490 Skid Steer Loader

Bull AV490 Skid Steer Loader

Get Latest Price
Rating
4.4

Engine Brand

Kubota

Engine Model

-

Engine Power

49.5HP

Max Torque

158.6Nm

Rated Speed

2700rpm

Fuel Tank Capacity

48L

Emission Standard

-

Transmission Type

Hydrostatic drive with hydraulic pilot operated variable displacement tandem pump with heavy duty radial piston bidirectional motor

Max Travel Speed

14.0km/h

Operating Weight

2.61 Ton

Rated Operating Capacity

604kg

Rated Operating Capacity (optional)

-

Max Tipping Load

1208kg

Hydraulic Flow Rate

56.7L/min

Hydraulic Pressure

230Bar

Hydraulic System Capacity

65L

Max Dump Height

2.93m

Max Hinge Pin Height

3.61m

Max Reach At Full Height

1.42m

Reach At Ground Level

1.60m

Bucket Capacity

1.1

Loader Arm Breakout Force

5251kgf

Dump Angle

45°

Lift Path

-

Overall Length

6.04m

Overall Width

2.35 m

Overall Height

3.71m

Wheelbase

2.22m

Ground Clearance

480mm

Turning Radius

-

Currently Viewing
Manitou 1050RT Skid Steer Loader

Manitou 1050RT Skid Steer Loader

Get Latest Price
Rating
4.4

Engine Brand

Yanmar

Engine Model

3TNV88C-KMSV

Engine Power

34.20HP

Max Torque

109.40Nm

Rated Speed

2800rpm

Fuel Tank Capacity

36L

Emission Standard

-

Transmission Type

-

Max Travel Speed

10.10km/h

Operating Weight

2.14Ton

Rated Operating Capacity

-

Rated Operating Capacity (optional)

-

Max Tipping Load

1361kg

Hydraulic Flow Rate

55L/min

Hydraulic Pressure

-

Hydraulic System Capacity

30L

Max Dump Height

2.134m

Max Hinge Pin Height

2.769m

Max Reach At Full Height

-

Reach At Ground Level

-

Bucket Capacity

-

Loader Arm Breakout Force

-

Dump Angle

38°

Lift Path

-

Overall Length

2.985m

Overall Width

1.290m

Overall Height

1.816m

Wheelbase

1.283m

Ground Clearance

0.191mm

Turning Radius

-

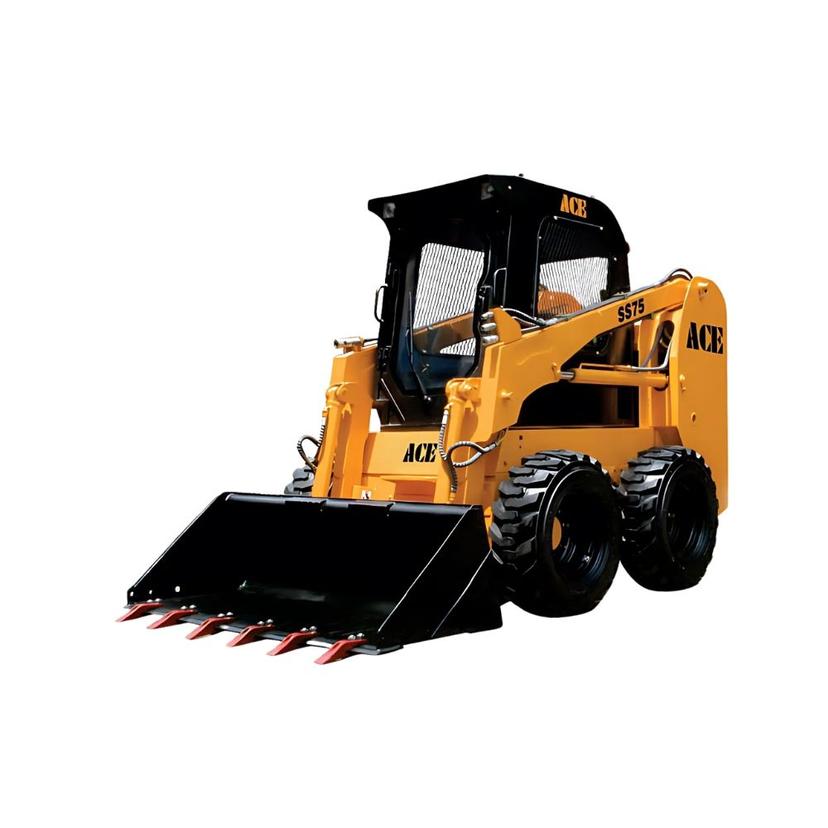

ACE SS 75 Skid Steer Loader

ACE SS 75 Skid Steer Loader

Get Latest Price
Rating
4.4

Engine Brand

ACE / Simpson

Engine Model

A50 / TSJ436

Engine Power

50 / 60 / 75HP

Max Torque

-

Rated Speed

2100 / 2200rpm

Fuel Tank Capacity

55L

Emission Standard

Bharat (TREM) Stage III A / CEV / BSIII / Tier 2 / BS-III

Transmission Type

Infinitely variable hydrostatic drive

Max Travel Speed

10km/h

Operating Weight

2.85Ton

Rated Operating Capacity

750kg

Rated Operating Capacity (optional)

-

Max Tipping Load

1500kg

Hydraulic Flow Rate

82L/min

Hydraulic Pressure

-

Hydraulic System Capacity

65L

Max Dump Height

2.29m

Max Hinge Pin Height

3.15m

Max Reach At Full Height

0.68m

Reach At Ground Level

-

Bucket Capacity

0.4

Loader Arm Breakout Force

-

Dump Angle

40°

Lift Path

-

Overall Length

3.62m

Overall Width

1.645m

Overall Height

2.11m

Wheelbase

1.01m

Ground Clearance

185mm

Turning Radius

-

Gamzen 5050 Skid Steer Loader

Gamzen 5050 Skid Steer Loader

Get Latest Price
Rating
4.4

Engine Brand

Hyundai/Cummins

Engine Model

-

Engine Power

-

Max Torque

-

Rated Speed

-

Fuel Tank Capacity

-

Emission Standard

-

Transmission Type

-

Max Travel Speed

11.0km/h

Operating Weight

2.88Ton

Rated Operating Capacity

850kg

Rated Operating Capacity (optional)

-

Max Tipping Load

1680kg

Hydraulic Flow Rate

-

Hydraulic Pressure

-

Hydraulic System Capacity

-

Max Dump Height

2.236m

Max Hinge Pin Height

2.87m

Max Reach At Full Height

0.686m

Reach At Ground Level

-

Bucket Capacity

0.5

Loader Arm Breakout Force

-

Dump Angle

42°

Lift Path

-

Overall Length

3.27m

Overall Width

1.69m

Overall Height

2.025m

Wheelbase

1.045m

Ground Clearance

203mm

Turning Radius

1.858m

Gamzen 8080 EX Skid Steer Loader

Gamzen 8080 EX Skid Steer Loader

Get Latest Price
Rating
4.4

Engine Brand

Cummins

Engine Model

-

Engine Power

-

Max Torque

-

Rated Speed

-

Fuel Tank Capacity

-

Emission Standard

-

Transmission Type

-

Max Travel Speed

-

Operating Weight

3.659674Ton

Rated Operating Capacity

1140kg

Rated Operating Capacity (optional)

-

Max Tipping Load

2280kg

Hydraulic Flow Rate

-

Hydraulic Pressure

-

Hydraulic System Capacity

-

Max Dump Height

3.532m

Max Hinge Pin Height

-

Max Reach At Full Height

1.021m

Reach At Ground Level

-

Bucket Capacity

0.7

Loader Arm Breakout Force

-

Dump Angle

38°

Lift Path

-

Overall Length

3509m

Overall Width

1.886m

Overall Height

2.055m

Wheelbase

1.181m

Ground Clearance

195mm

Turning Radius

-
