Apollo Carmix 4.3 TT Self Loading Concrete Mixer

Apollo Inffratech Pvt Ltd

Gujarat

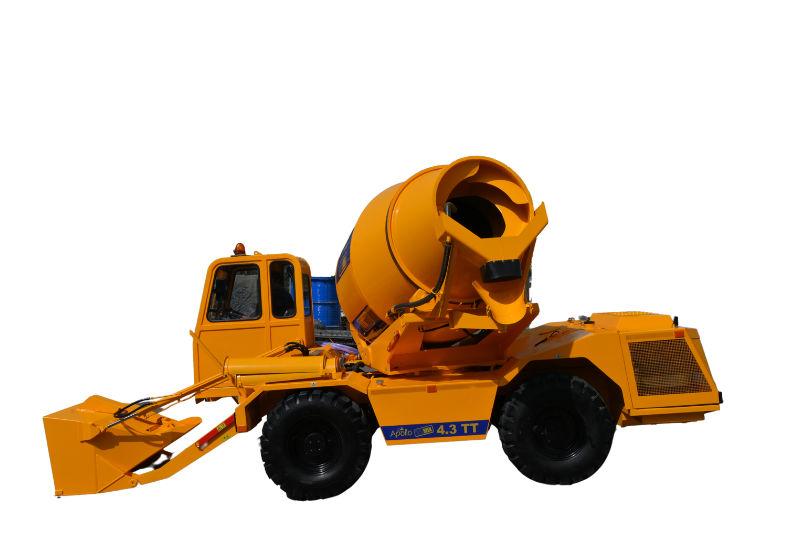

The Apollo Carmix 4.3 TT Self Loading Concrete Mixer is designed for smart, high-efficiency concrete production on-site. With a 270° drum rotation, it enables concrete discharge on all four sides, making it ideal for tight or dynamic job sites. Its joystick-controlled loader simplifies operation, while the remote ground control system allows the operator to manage drum swivel, mixing, discharge, chute adjustment, and auto water cutoff—all from a safe distance. The engine is easily accessible for quick maintenance, reducing downtime significantly. Optional features like IoT connectivity, rear-view camera, and loadcell-based batching system offer enhanced accuracy, safety, and monitoring. Whether you're working on infrastructure, housing, or industrial projects, the Carmix 4.3 TT ensures optimal mobility, control, and performance—making it a reliable partner for professional-grade concrete production.

Product Description

The Apollo Carmix 4.3 TT Self Loading Concrete Mixer is designed for smart, high-efficiency concrete...

View the full brochure

Apollo Carmix 4.3 TT Self Loading Concrete Mixer Comparison with Similar Self Loading Concrete Mixer

Apollo Carmix 4.3 TT Self Loading Concrete Mixer

Apollo Carmix 4.3 TT Self Loading Concrete Mixer

Get Latest Price
Rating
4.4

Engine Brand

Mahindra & Mahindra

Engine Model

MCVNC35TI112CE5

Engine Power

112HP

Rated Speed

2200RPM

Cooling System

Water cooled, Turbo Charged

Emission Compliance

-

Fuel Tank Capacity

115L

Max Travel Speed

26km/h

Working Speed

9km/h

Gradeability

16-17° / %

Drive Type

Electric Servo Control

Service Brake Type

-

Parking Brake Type

-

Steering Type

Hydraulic. 3 Way.

Steering Modes

ROPS-FOPS cabin with joystick-controlled operation

Turning Radius

1882mm

Drum Output Per Batch

4.3Cu.M

Drum Volume

5800L

Drum Rotation

-

Concrete Output Efficiency

90-95%

Loader Bucket Capacity

600L

Loading Shovel System

Hydraulically operated shutter gate

Hydraulic Oil Capacity

80L

Hydraulic Flow Rate

-

Hydraulic Pressure

-

Wheelbase

-

Operating Weight

8060kg

Laden Weight

-

Tyre Size

16/70-20 PR 16

Tyre Type

Off Road Type

Water Tank Capacity

800L

Water Pump Capacity

-

Water System Features

Self contained Water Pump, Water Meter, Washing Outlet.

Battery Voltage

12V

Battery Capacity

180Ah

Additional Features

Battery for electric starter and road lighting. Safety battery cut-off. Slewing and hydraulically tilting chute.

Currently Viewing
Schwing SLM 2100 Self Loading Concrete Mixer

Schwing SLM 2100 Self Loading Concrete Mixer

Get Latest Price
Rating
4.4

Engine Brand

-

Engine Model

-

Engine Power

49.5HP

Rated Speed

-

Cooling System

-

Emission Compliance

-

Fuel Tank Capacity

-

Max Travel Speed

22 km/h

Working Speed

-

Gradeability

280 (54%)° / %

Drive Type

-

Service Brake Type

Master cylinder actuated disc brakes

Parking Brake Type

-

Steering Type

-

Steering Modes

-

Turning Radius

-

Drum Output Per Batch

2.3Cu.M

Drum Volume

-

Drum Rotation

0 to 20RPM

Concrete Output Efficiency

-

Loader Bucket Capacity

-

Loading Shovel System

-

Hydraulic Oil Capacity

-

Hydraulic Flow Rate

-

Hydraulic Pressure

-

Wheelbase

-

Operating Weight

-

Laden Weight

6290kg

Tyre Size

-

Tyre Type

-

Water Tank Capacity

380L

Water Pump Capacity

-

Water System Features

-

Battery Voltage

-

Battery Capacity

-

Additional Features

-

Schwing SLM 4600 Self Loading Concrete Mixer

Schwing SLM 4600 Self Loading Concrete Mixer

Get Latest Price
Rating
4.4

Engine Brand

-

Engine Model

-

Engine Power

110 HP

Rated Speed

-

Cooling System

-

Emission Compliance

-

Fuel Tank Capacity

-

Max Travel Speed

27km/h

Working Speed

-

Gradeability

24 (44%)° / %

Drive Type

-

Service Brake Type

Master cylinder actuated disc brakes

Parking Brake Type

-

Steering Type

Hydrostatic steering (Fully Powered)

Steering Modes

2 stage gear reduction

Turning Radius

-

Drum Output Per Batch

4.6Cu.M

Drum Volume

-

Drum Rotation

0 to 18RPM

Concrete Output Efficiency

-

Loader Bucket Capacity

-

Loading Shovel System

600

Hydraulic Oil Capacity

-

Hydraulic Flow Rate

-

Hydraulic Pressure

-

Wheelbase

-

Operating Weight

-

Laden Weight

-

Tyre Size

-

Tyre Type

-

Water Tank Capacity

750L

Water Pump Capacity

-

Water System Features

-

Battery Voltage

-

Battery Capacity

-

Additional Features

-

Schwing SLM 2600 Self Loading Concrete Mixer

Schwing SLM 2600 Self Loading Concrete Mixer

Get Latest Price
Rating
4.4

Engine Brand

-

Engine Model

-

Engine Power

74.5HP

Rated Speed

-

Cooling System

-

Emission Compliance

-

Fuel Tank Capacity

-

Max Travel Speed

27km/h

Working Speed

-

Gradeability

24 (44%)° / %

Drive Type

-

Service Brake Type

Master cylinder actuated disc brakes

Parking Brake Type

-

Steering Type

2 stage gear reduction

Steering Modes

Hydrostatic steering

Turning Radius

-

Drum Output Per Batch

2.8Cu.M

Drum Volume

-

Drum Rotation

0 to 20RPM

Concrete Output Efficiency

-

Loader Bucket Capacity

-

Loading Shovel System

415

Hydraulic Oil Capacity

-

Hydraulic Flow Rate

-

Hydraulic Pressure

-

Wheelbase

-

Operating Weight

-

Laden Weight

-

Tyre Size

-

Tyre Type

-

Water Tank Capacity

380L

Water Pump Capacity

-

Water System Features

-

Battery Voltage

-

Battery Capacity

-

Additional Features

-

Conmat CSLM 2800 Self Loading Concrete Mixer

Conmat CSLM 2800 Self Loading Concrete Mixer

Get Latest Price
Rating
4.4

Engine Brand

KOEL

Engine Model

4R1190NA1

Engine Power

74.5HP

Rated Speed

2200RPM

Cooling System

Water Cooled

Emission Compliance

BSIV

Fuel Tank Capacity

100L

Max Travel Speed

0-25km/h

Working Speed

-

Gradeability

20 Deg / 36.4%° / %

Drive Type

Full Time 4 Wheel Drive

Service Brake Type

Hydraulic powered brakes

Parking Brake Type

Hydraulic powered brakes

Steering Type

-

Steering Modes

-

Turning Radius

-

Drum Output Per Batch

2.8Cu.M

Drum Volume

-

Drum Rotation

0-22RPM

Concrete Output Efficiency

-

Loader Bucket Capacity

420 L

Loading Shovel System

-

Hydraulic Oil Capacity

-

Hydraulic Flow Rate

-

Hydraulic Pressure

-

Wheelbase

2350mm

Operating Weight

7100kg

Laden Weight

13820kg

Tyre Size

12.5/80x18

Tyre Type

16 PR

Water Tank Capacity

625L

Water Pump Capacity

230L/min

Water System Features

-

Battery Voltage

-

Battery Capacity

-

Additional Features

-

Compare Self Loading Concrete Mixer

Apollo Carmix 4.3 TT Self Loading Concrete Mixer

Apollo Carmix 4.3 TT Self Loading Concrete Mixer

Schwing SLM 2100 Self Loading Concrete Mixer

Schwing SLM 2100 Self Loading Concrete Mixer

Add any equipment
to compare

Product

Get instant quotation on whatsapp

Connect with "Apollo Inffratech Pvt Ltd"

Connect with Seller Instantly

About Company

Company Name

Apollo Inffratech Pvt Ltd

GST Number

24AAGCA1019A1ZL

Since

December 2006

Address

Ahmedabad-Mehsana State Highway, Village : Rajpur – 382 715. Dist. – Mehsana. Gujarat, India.

Apollo Inffratech Pvt. Ltd. has a joint venture with CARMIX–Italy, a global leader in self-loading concrete mixers, exclusively for the Indian market. CARMIX machines are known for their simple operation, reliable performance, and ability to work in remote and challenging job sites. With a strong history rooted in practical engineering, CARMIX has built a reputation for durable 4×4 self-loading mixers used in over 140 countries. This partnership combines CARMIX’s proven technology with Apollo Inffratech’s local manufacturing strength and service network, offering India a dependable solution for on-site concrete production with the same quality trusted worldwide
