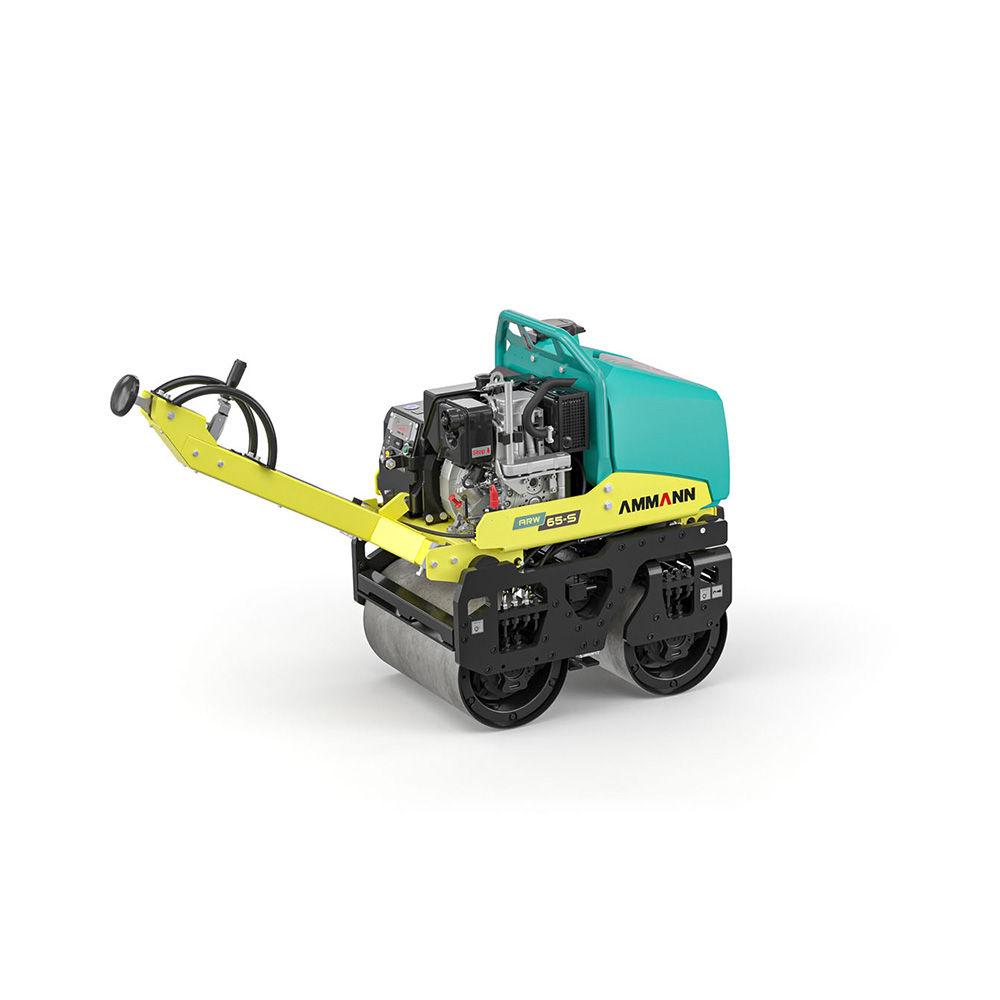

Ammann ARW 65-S Walk Behind Roller

Ammann India Private Limited

Gujarat

The Ammann ARW 65-S Walk Behind Roller offers versatile and efficient compaction solutions for various surfaces. Equipped with high-amplitude settings, it excels in compacting soil and gravel, while its low-amplitude mode ensures a smooth finish for asphalt and bituminous materials. The 60-litre water tank with an integrated sprinkler system enhances asphalt preparation, preventing material sticking and improving surface quality. With its innovative steering mechanism, the ARW 65-S maneuvers effortlessly around tight spaces and obstacles, eliminating the need for rework on edges. Its advanced hydrostatic drive system provides variable speed adjustment and smooth operation, making it ideal for both rugged and precision compaction tasks. This roller combines durability, efficiency, and user-friendly features for superior performance in diverse construction applications.

Engine Brand
HATZ
Engine Power (effective)
8.6HP
Fuel Consumption
2.3L/hr
Centrifugal Force – Level I
14kN
Drum Width
650mm

Product Description

The Ammann ARW 65-S Walk Behind Roller offers versatile and efficient compaction solutions for vario...

View the full brochure

Ammann ARW 65-S Walk Behind Roller Comparison with Similar Walk Behind Rollers

Ammann ARW 65-S	Walk Behind Roller

Ammann ARW 65-S Walk Behind Roller

Get Latest Price
Rating
4.4

Engine Brand

HATZ

Engine Model

1042

Engine Power (effective)

8.6HP

Engine Power (operating)

-

Rated Speed

2800rpm

Displacement

-

Fuel Type

Diesel

Fuel Tank Capacity

5L

Fuel Consumption

2.3L/hr

Transmission Type

-

Max Travel Speed (fwd)

4.02km/h

Max Travel Speed (rev)

2.52km/h

Gradeability (with Vib)

25%

Gradeability (w/o Vib)

45%

Max Weight (with Options)

0.822Tons

Operating Weight

0.812Ton

Hydraulic Oil Capacity

-

Hydraulic Fluid Type

-

Sound Power Level (lwa)

-

Sound Pressure At Operator (lpa)

-

Hav (hand Arm Vibration)

-

Vibration Frequency

65Hz

Amplitude

0.3 / 0.15mm

Centrifugal Force – Level I

14kN

Centrifugal Force – Level Ii

23kN

Linear Force (static) Front

6.3N/mm

Linear Force (dynamic)

-

Overall Length

2.004m

Overall Width

0.72m

Overall Height

1.207m

Drum Width

650mm

Drum Diameter

400mm

Wheelbase

600mm

Drum Sheet Thickness

-

Side Clearance (l/r)

-

Curb Clearance (l/r)

-

Brake Type

-

Water Tank Capacity

60L

Area Compaction Capacity

-

Exciter Oil Type

-

Grease For Bearings

-

Starter Type

-

Exhaust Emissions

-

Currently Viewing
Buildcons RL – 600D Walk Behind Vibratory Roller

Buildcons RL – 600D Walk Behind Vibratory Roller

Get Latest Price
Rating
4.4

Engine Brand

Honda

Engine Model

GX160 5.5HP

Engine Power (effective)

-

Engine Power (operating)

-

Rated Speed

-

Displacement

-

Fuel Type

-

Fuel Tank Capacity

-

Fuel Consumption

-

Transmission Type

Hydraulic

Max Travel Speed (fwd)

0-3km/h

Max Travel Speed (rev)

-

Gradeability (with Vib)

30%

Gradeability (w/o Vib)

-

Max Weight (with Options)

-

Operating Weight

-

Hydraulic Oil Capacity

-

Hydraulic Fluid Type

-

Sound Power Level (lwa)

-

Sound Pressure At Operator (lpa)

-

Hav (hand Arm Vibration)

-

Vibration Frequency

70 Hz

Amplitude

-

Centrifugal Force – Level I

15 kN

Centrifugal Force – Level Ii

-

Linear Force (static) Front

-

Linear Force (dynamic)

-

Overall Length

-

Overall Width

-

Overall Height

-

Drum Width

-

Drum Diameter

425 X 600mm

Wheelbase

-

Drum Sheet Thickness

-

Side Clearance (l/r)

-

Curb Clearance (l/r)

-

Brake Type

-

Water Tank Capacity

17 L

Area Compaction Capacity

-

Exciter Oil Type

-

Grease For Bearings

-

Starter Type

-

Exhaust Emissions

-

Sona YH600 Walk Behind Roller

Sona YH600 Walk Behind Roller

Get Latest Price
Rating
4.4

Engine Brand

Greaves Engine 1510

Engine Model

-

Engine Power (effective)

10HP

Engine Power (operating)

-

Rated Speed

-

Displacement

-

Fuel Type

Diesel

Fuel Tank Capacity

-

Fuel Consumption

0.8L/hr

Transmission Type

-

Max Travel Speed (fwd)

0 – 4km/h

Max Travel Speed (rev)

-

Gradeability (with Vib)

30%

Gradeability (w/o Vib)

-

Max Weight (with Options)

-

Operating Weight

0.55Ton

Hydraulic Oil Capacity

6L

Hydraulic Fluid Type

-

Sound Power Level (lwa)

-

Sound Pressure At Operator (lpa)

-

Hav (hand Arm Vibration)

-

Vibration Frequency

75Hz

Amplitude

-

Centrifugal Force – Level I

20kN

Centrifugal Force – Level Ii

20kN

Linear Force (static) Front

-

Linear Force (dynamic)

-

Overall Length

1.35m

Overall Width

0.94m

Overall Height

1.22m

Drum Width

600mm

Drum Diameter

600mm

Wheelbase

-

Drum Sheet Thickness

-

Side Clearance (l/r)

-

Curb Clearance (l/r)

-

Brake Type

-

Water Tank Capacity

35L

Area Compaction Capacity

-

Exciter Oil Type

-

Grease For Bearings

-

Starter Type

-

Exhaust Emissions

-

Sona YH650 Walk Behind Double Drum Roller

Sona YH650 Walk Behind Double Drum Roller

Get Latest Price
Rating
4.4

Engine Brand

Greaves Engine 1510

Engine Model

-

Engine Power (effective)

10HP

Engine Power (operating)

10HP

Rated Speed

-

Displacement

-

Fuel Type

Diesel

Fuel Tank Capacity

-

Fuel Consumption

1.35L/hr

Transmission Type

Mechanical

Max Travel Speed (fwd)

0–4km/h

Max Travel Speed (rev)

-

Gradeability (with Vib)

30%

Gradeability (w/o Vib)

30%

Max Weight (with Options)

-

Operating Weight

0.55Ton

Hydraulic Oil Capacity

6L

Hydraulic Fluid Type

-

Sound Power Level (lwa)

-

Sound Pressure At Operator (lpa)

-

Hav (hand Arm Vibration)

-

Vibration Frequency

75Hz

Amplitude

-

Centrifugal Force – Level I

20kN

Centrifugal Force – Level Ii

-

Linear Force (static) Front

-

Linear Force (dynamic)

-

Overall Length

1.35m

Overall Width

0.94m

Overall Height

1.22m

Drum Width

650mm

Drum Diameter

-

Wheelbase

-

Drum Sheet Thickness

-

Side Clearance (l/r)

-

Curb Clearance (l/r)

-

Brake Type

-

Water Tank Capacity

-

Area Compaction Capacity

-

Exciter Oil Type

-

Grease For Bearings

-

Starter Type

-

Exhaust Emissions

-

Husqvarna LP 6500 Compaction Roller

Husqvarna LP 6500 Compaction Roller

Get Latest Price
Rating
4.4

Engine Brand

-

Engine Model

-

Engine Power (effective)

7.51HP

Engine Power (operating)

-

Rated Speed

-

Displacement

-

Fuel Type

Diesel

Fuel Tank Capacity

-

Fuel Consumption

-

Transmission Type

-

Max Travel Speed (fwd)

3.33km/h

Max Travel Speed (rev)

-

Gradeability (with Vib)

-

Gradeability (w/o Vib)

-

Max Weight (with Options)

0.676Tons

Operating Weight

0.681Ton

Hydraulic Oil Capacity

-

Hydraulic Fluid Type

-

Sound Power Level (lwa)

100dB(A)

Sound Pressure At Operator (lpa)

84dB(A)

Hav (hand Arm Vibration)

-

Vibration Frequency

-

Amplitude

-

Centrifugal Force – Level I

20kN

Centrifugal Force – Level Ii

-

Linear Force (static) Front

-

Linear Force (dynamic)

-

Overall Length

2.551m

Overall Width

0.714m

Overall Height

1.045m

Drum Width

-

Drum Diameter

-

Wheelbase

-

Drum Sheet Thickness

-

Side Clearance (l/r)

-

Curb Clearance (l/r)

-

Brake Type

-

Water Tank Capacity

-

Area Compaction Capacity

-

Exciter Oil Type

-

Grease For Bearings

-

Starter Type

Electric

Exhaust Emissions

987g/kWh
