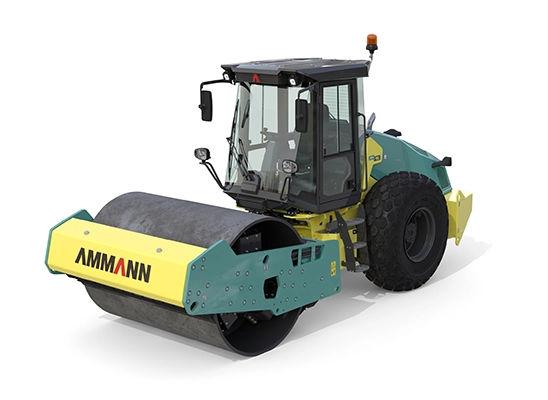

Ammann ARS 150 Single Drum Roller
Ammann India Private Limited
Gujarat
The Ammann ARS 150 Single Drum Roller is a high-performance compaction machine built for demanding construction projects. Equipped with a Tier 4f engine, it ensures reduced emissions and improved fuel efficiency. Its 83.9-inch drum width maximizes coverage with each pass, while the 32,720 lb operating weight delivers exceptional compaction force for deep soil stabilization.This roller is perfect for highway construction and maintenance, ensuring durable, smooth road surfaces. It excels in airport runway and taxiway compaction, providing a solid foundation for safe aircraft movement. In heavy industrial site preparation, it compacts large-scale sites to create strong foundations for warehouses and factories. It also plays a vital role in mining and quarry ground stabilization, enhancing safety. Additionally, it’s essential for dam and embankment construction, ensuring structural stability for large-scale projects. The ARS 150 is built to handle the toughest compaction tasks.
Ammann ARS 150 Single Drum Roller
Ammann India Private Limited
Gujarat
The Ammann ARS 150 Single Drum Roller is a high-performance compaction machine built for demanding construction projects. Equipped with a Tier 4f engine, it ensures reduced emissions and improved fuel efficiency. Its 83.9-inch drum width maximizes coverage with each pass, while the 32,720 lb operating weight delivers exceptional compaction force for deep soil stabilization.This roller is perfect for highway construction and maintenance, ensuring durable, smooth road surfaces. It excels in airport runway and taxiway compaction, providing a solid foundation for safe aircraft movement. In heavy industrial site preparation, it compacts large-scale sites to create strong foundations for warehouses and factories. It also plays a vital role in mining and quarry ground stabilization, enhancing safety. Additionally, it’s essential for dam and embankment construction, ensuring structural stability for large-scale projects. The ARS 150 is built to handle the toughest compaction tasks.
Product Description
The Ammann ARS 150 Single Drum Roller is a high-performance compaction machine built for demanding c...
View the full brochure
Ammann ARS 150 Single Drum Roller Comparison with Similar Single Drum Soil Compactor
Ammann ARS 150 Single Drum Roller
Engine Brand
Deutz
Engine Model
TCD4.1 L4
Engine Power
154HP
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Transmission Type
-
Max Travel Speed
12.7km/h
Service Brake Type
Hydrostatic
Parking Brake Type
Multiple-disc spring brake
Steering Type
Steering Angle
72°
Oscillation Angle
20°
Turning Radius (inner)
3.57m
Turning Radius (outer)
-
Front Axle Load
-
Rear Axle Load
-
Static Linear Load
43.5kg/cm
Operating Weight
15.18Ton
Frequency (low)
25Hz
Frequency (high)
35Hz
Amplitude (low)
0.88mm
Amplitude (high)
2.06mm
Centrifugal Force
325kN
Max Applied Force
-
Without Drum Drive
67%
With Drum Drive
55%
Overall Length
6.61m
Overall Width
2.26m
Overall Height
2.97m
Ground Clearance
0.43mm
Drum Width
2.13m
Drum Diameter
1.5m
Drum Shell Thickness
0.035m
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Coolant Capacity
-
Tyre Size
-
Battery Voltage
-
Battery Capacity
-
Gradeability With Vibration
-
Hydraulic Tank Capacity
-
Frequency High
-
Frequency Low
-
Amplitude High
-
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
-
Water Tank Capacity
-
Turning Radius
-
Volvo SD110CD Soil Compactor
Engine Brand
VECV
Engine Model
EE494 TCI-HPCR
Engine Power
-
Max Torque
-
Rated Speed
2,200rpm
Displacement
-
Fuel Tank Capacity
-
Transmission Type
-
Max Travel Speed
12km/h
Service Brake Type
Hydrostatic
Parking Brake Type
Spring-applied, hydraulically released on axle and drum
Steering Type
-
Steering Angle
-
Oscillation Angle
17°
Turning Radius (inner)
-
Turning Radius (outer)
-
Front Axle Load
-
Rear Axle Load
-
Static Linear Load
-
Operating Weight
11.2Ton
Frequency (low)
-
Frequency (high)
-
Amplitude (low)
-
Amplitude (high)
-
Centrifugal Force
-
Max Applied Force
-
Without Drum Drive
-
With Drum Drive
-
Overall Length
5.875m
Overall Width
2.340m
Overall Height
3.250m
Ground Clearance
472mm
Drum Width
2.134m
Drum Diameter
-
Drum Shell Thickness
-
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Coolant Capacity
-
Tyre Size
-
Battery Voltage
-
Battery Capacity
-
Gradeability With Vibration
-
Hydraulic Tank Capacity
70L
Frequency High
30Hz
Frequency Low
0Hz
Amplitude High
1.9mm
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
1.0mm
Water Tank Capacity
-
Turning Radius
-
Dynapac CA405D CEV-V Single drum vibratory rollers
Engine Brand
Cummins
Engine Model
-
Engine Power
121HP
Max Torque
-
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
280L
Transmission Type
Hydrostatic
Max Travel Speed
10.8km/h
Service Brake Type
Hydrostatic in forward and reverse lever
Parking Brake Type
Failsafe multidisc brake in rear axle and front drum motor
Steering Type
Hydrostatic
Steering Angle
38°
Oscillation Angle
9°
Turning Radius (inner)
3.385m
Turning Radius (outer)
5.515m
Front Axle Load
8580kg
Rear Axle Load
5260kg
Static Linear Load
40.3kg/cm
Operating Weight
13.960Ton
Frequency (low)
33Hz
Frequency (high)
33Hz
Amplitude (low)
0.8mm
Amplitude (high)
1.7mm
Centrifugal Force
300kN
Max Applied Force
-
Without Drum Drive
50%
With Drum Drive
-
Overall Length
5.600m
Overall Width
2.300m
Overall Height
2.977m
Ground Clearance
520mm
Drum Width
2.130m
Drum Diameter
1.543m
Drum Shell Thickness
0.035m
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Coolant Capacity
-
Tyre Size
23.1-26 TL
Battery Voltage
-
Battery Capacity
-
Gradeability With Vibration
-
Hydraulic Tank Capacity
-
Frequency High
-
Frequency Low
-
Amplitude High
-
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
-
Water Tank Capacity
-
Turning Radius
-
Ammann ARS 110 PD Single Drum Roller
Engine Brand
Deutz
Engine Model
TCD 3.6 L04
Engine Power
134HP
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
345 L
Transmission Type
-
Max Travel Speed
12km/h
Service Brake Type
Hydrostatic
Parking Brake Type
Multi Disc
Steering Type
-
Steering Angle
36°°
Oscillation Angle
10°°
Turning Radius (inner)
3.625m
Turning Radius (outer)
-
Front Axle Load
-
Rear Axle Load
-
Static Linear Load
-
Operating Weight
12.54Ton
Frequency (low)
25 Hz
Frequency (high)
35 HzHz
Amplitude (low)
1.7mm
Amplitude (high)
0.72mm
Centrifugal Force
186kN
Max Applied Force
285kN
Without Drum Drive
54%
With Drum Drive
50%
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Drum Width
-
Drum Diameter
-
Drum Shell Thickness
-
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Coolant Capacity
-
Tyre Size
-
Battery Voltage
-
Battery Capacity
-
Gradeability With Vibration
-
Hydraulic Tank Capacity
-
Frequency High
-
Frequency Low
-
Amplitude High
-
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
-
Water Tank Capacity
-
Turning Radius
-
Ammann 130 PD Single Drum Roller
Engine Brand
Cummins
Engine Model
QSB 4.5-C160
Engine Power
159HP
Max Torque
206 Nm
Rated Speed
1500rpm
Displacement
-
Fuel Tank Capacity
410L
Transmission Type
-
Max Travel Speed
20km/h
Service Brake Type
Hydrostatic
Parking Brake Type
Hydrostatic
Steering Type
-
Steering Angle
36°°
Oscillation Angle
10°°
Turning Radius (inner)
-
Turning Radius (outer)
-
Front Axle Load
-
Rear Axle Load
-
Static Linear Load
-
Operating Weight
14Ton
Frequency (low)
30Hz
Frequency (high)
36Hz
Amplitude (low)
1.85mm
Amplitude (high)
1mm
Centrifugal Force
300kN
Max Applied Force
230kN
Without Drum Drive
-
With Drum Drive
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Drum Width
-
Drum Diameter
-
Drum Shell Thickness
-
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Coolant Capacity
-
Tyre Size
-
Battery Voltage
-
Battery Capacity
-
Gradeability With Vibration
-
Hydraulic Tank Capacity
-
Frequency High
-
Frequency Low
-
Amplitude High
-
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
-
Water Tank Capacity
-
Turning Radius
-
