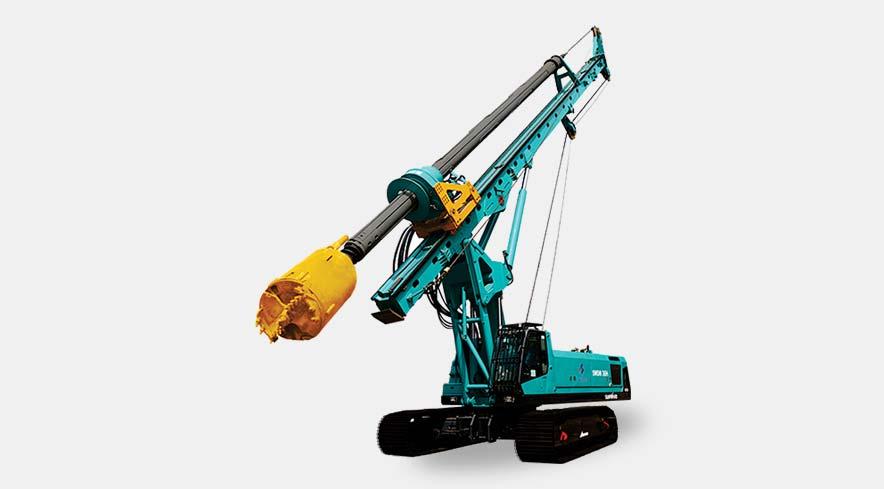

ACE SA 600 W Piling Rig
Action Construction Equipment Limited
Haryana
The ACE SA 600 W Piling Rig is a high-performance, rugged solution designed for challenging hard soil conditions, ideal for a variety of foundation applications. With a maximum drilling diameter of 3500 mm and drilling depth capabilities of up to 135 meters, this rig offers exceptional versatility for urban infrastructure, metro, and rapid rail projects. It excels in bridge and flyover construction by providing deep and stable foundations. Equipped with a powerful Cummins engine and advanced hydraulic systems, the rig ensures efficient operations for tunnel boring tasks and general construction projects. The high torque rotary power head, combined with the robust main and auxiliary winches, enables precise and heavy-duty piling. Whether it’s for deep drilling, large-scale infrastructure, or general construction, the ACE SA 600 W delivers reliable, high-performance results.
ACE SA 600 W Piling Rig
Action Construction Equipment Limited
Haryana
The ACE SA 600 W Piling Rig is a high-performance, rugged solution designed for challenging hard soil conditions, ideal for a variety of foundation applications. With a maximum drilling diameter of 3500 mm and drilling depth capabilities of up to 135 meters, this rig offers exceptional versatility for urban infrastructure, metro, and rapid rail projects. It excels in bridge and flyover construction by providing deep and stable foundations. Equipped with a powerful Cummins engine and advanced hydraulic systems, the rig ensures efficient operations for tunnel boring tasks and general construction projects. The high torque rotary power head, combined with the robust main and auxiliary winches, enables precise and heavy-duty piling. Whether it’s for deep drilling, large-scale infrastructure, or general construction, the ACE SA 600 W delivers reliable, high-performance results.
Product Description
The ACE SA 600 W Piling Rig is a high-performance, rugged solution designed for challenging hard soi...
View the full brochure
ACE SA 600 W Piling Rig Comparison with Similar Piling Rig
ACE SA 600 W Piling Rig
Max. Drilling Diameter
3500mm
Max. Drilling Depth (interlocking Kelly)
88m
Max. Drilling Depth (friction Kelly)
135m
Crowd Force (push)
480kN
Crowd Force (pull)
480kN
Stroke Length
9000mm
Max. Lifting Capacity
110kN
Max. Line Speed
65m/min
Wire Rope Diameter
-
Forward Tilt
5°
Backward Tilt
-
Lateral Tilt
-
Track Shoe Width
1000mm
Chassis Length
7640mm
Crawler Extension Width
6000mm
Swing Radius
-
Overall Height
35.3mm
Transport Height
-
Transport Width
-
Operating Weight
202Ton
Max. Traction Force
-
Max. Travel Speed
1.2km/h
Max. Gradeability
5°
Friction Kelly Bar
135000mm
Interlocking Kelly Bar
88000mm
Engine Brand
Cummins
Engine Model
QSX15-0600
Engine Power
447kW
Rated Speed
2100rpm
Emission Standard
-
Engine Displacement
-
Max Output Torque
600kN·m
Rotation Speed Range
22rpm
High Speed Throwing Soil
-
Mait India THH6 Rotary Drilling Piling Rig
Max. Drilling Diameter
-
Max. Drilling Depth (interlocking Kelly)
-
Max. Drilling Depth (friction Kelly)
-
Crowd Force (push)
-
Crowd Force (pull)
-
Stroke Length
-
Max. Lifting Capacity
-
Max. Line Speed
-
Wire Rope Diameter
-
Forward Tilt
-
Backward Tilt
-
Lateral Tilt
-
Track Shoe Width
-
Chassis Length
-
Crawler Extension Width
-
Swing Radius
-
Overall Height
-
Transport Height
-
Transport Width
-
Operating Weight
-
Max. Traction Force
-
Max. Travel Speed
-
Max. Gradeability
-
Friction Kelly Bar
-
Interlocking Kelly Bar
-
Engine Brand
-
Engine Model
-
Engine Power
-
Rated Speed
-
Emission Standard
-
Engine Displacement
-
Max Output Torque
-
Rotation Speed Range
-
High Speed Throwing Soil
-
Mait India MDT-60B Rotary Drilling Piling Rig
Max. Drilling Diameter
-
Max. Drilling Depth (interlocking Kelly)
-
Max. Drilling Depth (friction Kelly)
-
Crowd Force (push)
-
Crowd Force (pull)
-
Stroke Length
-
Max. Lifting Capacity
-
Max. Line Speed
-
Wire Rope Diameter
-
Forward Tilt
-
Backward Tilt
-
Lateral Tilt
-
Track Shoe Width
-
Chassis Length
-
Crawler Extension Width
-
Swing Radius
-
Overall Height
-
Transport Height
-
Transport Width
-
Operating Weight
-
Max. Traction Force
-
Max. Travel Speed
-
Max. Gradeability
-
Friction Kelly Bar
-
Interlocking Kelly Bar
-
Engine Brand
-
Engine Model
-
Engine Power
-
Rated Speed
-
Emission Standard
-
Engine Displacement
-
Max Output Torque
-
Rotation Speed Range
-
High Speed Throwing Soil
-
Mait India MDT-180B Rotary Drilling Piling Rig
Max. Drilling Diameter
-
Max. Drilling Depth (interlocking Kelly)
-
Max. Drilling Depth (friction Kelly)
-
Crowd Force (push)
-
Crowd Force (pull)
-
Stroke Length
-
Max. Lifting Capacity
-
Max. Line Speed
-
Wire Rope Diameter
-
Forward Tilt
-
Backward Tilt
-
Lateral Tilt
-
Track Shoe Width
-
Chassis Length
-
Crawler Extension Width
-
Swing Radius
-
Overall Height
-
Transport Height
-
Transport Width
-
Operating Weight
-
Max. Traction Force
-
Max. Travel Speed
-
Max. Gradeability
-
Friction Kelly Bar
-
Interlocking Kelly Bar
-
Engine Brand
-
Engine Model
-
Engine Power
-
Rated Speed
-
Emission Standard
-
Engine Displacement
-
Max Output Torque
-
Rotation Speed Range
-
High Speed Throwing Soil
-
XCMG XR80I Rotary Drilling Piling Rig
Max. Drilling Diameter
1200 mm
Max. Drilling Depth (interlocking Kelly)
25m
Max. Drilling Depth (friction Kelly)
-
Crowd Force (push)
-
Crowd Force (pull)
-
Stroke Length
2.5mm
Max. Lifting Capacity
-
Max. Line Speed
-
Wire Rope Diameter
-
Forward Tilt
-
Backward Tilt
-
Lateral Tilt
-
Track Shoe Width
-
Chassis Length
-
Crawler Extension Width
-
Swing Radius
-
Overall Height
-
Transport Height
-
Transport Width
-
Operating Weight
-
Max. Traction Force
-
Max. Travel Speed
-
Max. Gradeability
-
Friction Kelly Bar
-
Interlocking Kelly Bar
-
Engine Brand
Cummins
Engine Model
-
Engine Power
103kW
Rated Speed
-
Emission Standard
-
Engine Displacement
-
Max Output Torque
106 kN·m
Rotation Speed Range
-
High Speed Throwing Soil
-
