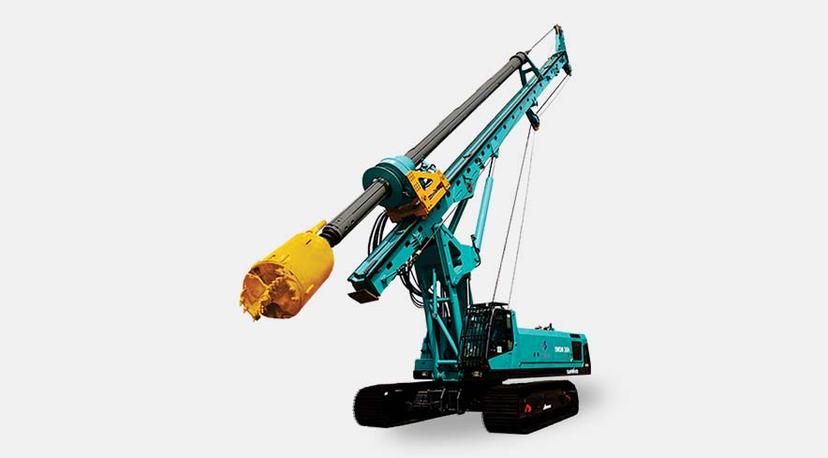

ACE SA 540 W Piling Rig
Action Construction Equipment Limited
Haryana
The ACE SA 540 W Piling Rig is a high-performance rotary drilling machine designed to tackle hard soil conditions with ease. Engineered for versatility, it offers comprehensive solutions for underground foundations in urban infrastructure, metro and rapid rail connectivity, bridges, flyovers, and general construction projects. Equipped with a Cummins QSX15-C600 engine delivering 447 kW of power, the rig ensures unmatched efficiency and reliability. With a maximum drilling diameter of 3500 mm and depths reaching 125 m, it’s perfect for deep foundation work. Its robust rotary power head delivers a maximum torque of 545 kN·m, ensuring smooth operation even in challenging terrains. Ideal for projects demanding precision and durability, the ACE SA 540 W is the go-to machine for modern construction needs.
ACE SA 540 W Piling Rig
Action Construction Equipment Limited
Haryana
The ACE SA 540 W Piling Rig is a high-performance rotary drilling machine designed to tackle hard soil conditions with ease. Engineered for versatility, it offers comprehensive solutions for underground foundations in urban infrastructure, metro and rapid rail connectivity, bridges, flyovers, and general construction projects. Equipped with a Cummins QSX15-C600 engine delivering 447 kW of power, the rig ensures unmatched efficiency and reliability. With a maximum drilling diameter of 3500 mm and depths reaching 125 m, it’s perfect for deep foundation work. Its robust rotary power head delivers a maximum torque of 545 kN·m, ensuring smooth operation even in challenging terrains. Ideal for projects demanding precision and durability, the ACE SA 540 W is the go-to machine for modern construction needs.
Product Description
The ACE SA 540 W Piling Rig is a high-performance rotary drilling machine designed to tackle hard so...
View the full brochure
ACE SA 540 W Piling Rig Comparison with Similar Piling Rig
ACE SA 540 W Piling Rig
Engine Brand
Cummins
Engine Model
QSX15-C600
Engine Power
447kW
Rated Speed
2100rpm
Emission Standard
-
Engine Displacement
-
Max Output Torque
540kN·m
Rotation Speed Range
22rpm
High Speed Throwing Soil
-
Max. Drilling Diameter
3500mm
Max. Drilling Depth (interlocking Kelly)
81m
Max. Drilling Depth (friction Kelly)
125m
Crowd Force (push)
480kN
Crowd Force (pull)
480kN
Stroke Length
9000mm
Max. Lifting Capacity
110kN
Max. Line Speed
65m/min
Wire Rope Diameter
-
Forward Tilt
5°
Backward Tilt
-
Lateral Tilt
-
Track Shoe Width
1000mm
Chassis Length
7640mm
Crawler Extension Width
6000mm
Swing Radius
-
Overall Height
33.5mm
Transport Height
-
Transport Width
-
Operating Weight
196Ton
Max. Traction Force
-
Max. Travel Speed
1.2km/h
Max. Gradeability
5°
Friction Kelly Bar
125000mm
Interlocking Kelly Bar
81000mm
Mait India HR 120 Rotary Drilling Piling Rig
Engine Brand
-
Engine Model
-
Engine Power
-
Rated Speed
-
Emission Standard
-
Engine Displacement
-
Max Output Torque
-
Rotation Speed Range
-
High Speed Throwing Soil
-
Max. Drilling Diameter
-
Max. Drilling Depth (interlocking Kelly)
-
Max. Drilling Depth (friction Kelly)
-
Crowd Force (push)
-
Crowd Force (pull)
-
Stroke Length
-
Max. Lifting Capacity
-
Max. Line Speed
-
Wire Rope Diameter
-
Forward Tilt
-
Backward Tilt
-
Lateral Tilt
-
Track Shoe Width
-
Chassis Length
-
Crawler Extension Width
-
Swing Radius
-
Overall Height
-
Transport Height
-
Transport Width
-
Operating Weight
-
Max. Traction Force
-
Max. Travel Speed
-
Max. Gradeability
-
Friction Kelly Bar
-
Interlocking Kelly Bar
-
Mait India HR 100 Rotary Drilling Piling Rig
Engine Brand
-
Engine Model
-
Engine Power
-
Rated Speed
-
Emission Standard
-
Engine Displacement
-
Max Output Torque
-
Rotation Speed Range
-
High Speed Throwing Soil
-
Max. Drilling Diameter
-
Max. Drilling Depth (interlocking Kelly)
-
Max. Drilling Depth (friction Kelly)
-
Crowd Force (push)
-
Crowd Force (pull)
-
Stroke Length
-
Max. Lifting Capacity
-
Max. Line Speed
-
Wire Rope Diameter
-
Forward Tilt
-
Backward Tilt
-
Lateral Tilt
-
Track Shoe Width
-
Chassis Length
-
Crawler Extension Width
-
Swing Radius
-
Overall Height
-
Transport Height
-
Transport Width
-
Operating Weight
-
Max. Traction Force
-
Max. Travel Speed
-
Max. Gradeability
-
Friction Kelly Bar
-
Interlocking Kelly Bar
-
Mait India MC 230 Rotary Drilling Piling Rig
Engine Brand
-
Engine Model
-
Engine Power
-
Rated Speed
-
Emission Standard
-
Engine Displacement
-
Max Output Torque
-
Rotation Speed Range
-
High Speed Throwing Soil
-
Max. Drilling Diameter
-
Max. Drilling Depth (interlocking Kelly)
-
Max. Drilling Depth (friction Kelly)
-
Crowd Force (push)
-
Crowd Force (pull)
-
Stroke Length
-
Max. Lifting Capacity
-
Max. Line Speed
-
Wire Rope Diameter
-
Forward Tilt
-
Backward Tilt
-
Lateral Tilt
-
Track Shoe Width
-
Chassis Length
-
Crawler Extension Width
-
Swing Radius
-
Overall Height
-
Transport Height
-
Transport Width
-
Operating Weight
-
Max. Traction Force
-
Max. Travel Speed
-
Max. Gradeability
-
Friction Kelly Bar
-
Interlocking Kelly Bar
-
Mait India MC 180 Rotary Drilling Piling Rig
Engine Brand
-
Engine Model
-
Engine Power
-
Rated Speed
-
Emission Standard
-
Engine Displacement
-
Max Output Torque
-
Rotation Speed Range
-
High Speed Throwing Soil
-
Max. Drilling Diameter
-
Max. Drilling Depth (interlocking Kelly)
-
Max. Drilling Depth (friction Kelly)
-
Crowd Force (push)
-
Crowd Force (pull)
-
Stroke Length
-
Max. Lifting Capacity
-
Max. Line Speed
-
Wire Rope Diameter
-
Forward Tilt
-
Backward Tilt
-
Lateral Tilt
-
Track Shoe Width
-
Chassis Length
-
Crawler Extension Width
-
Swing Radius
-
Overall Height
-
Transport Height
-
Transport Width
-
Operating Weight
-
Max. Traction Force
-
Max. Travel Speed
-
Max. Gradeability
-
Friction Kelly Bar
-
Interlocking Kelly Bar
-
