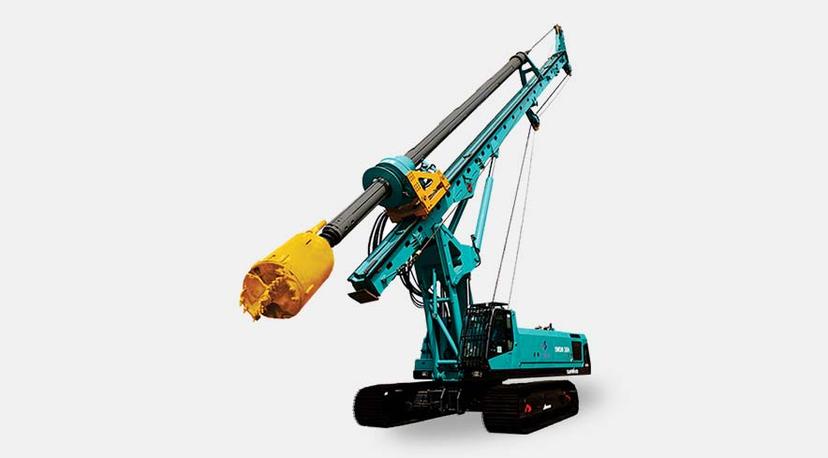

ACE SA 490 W Piling Rig
Action Construction Equipment Limited
Haryana
The ACE SA 490 W Piling Rig is a high-performance solution for challenging underground foundation projects. With a maximum drilling depth of 121 m (using a friction kelly bar) and a drilling diameter of up to 3000 mm, it is ideal for metro rail, bridges, and urban infrastructure construction. Powered by a robust Cummins QSX15-C600 engine delivering 447 kW, it ensures superior performance even in hard soil conditions. The 490 kN·m rotary power head, coupled with advanced pressurized systems offering up to 420 kN of applied pressure, makes it a reliable choice for static pile driving and tunnel foundations. Designed for versatility, the ACE SA 490 W combines durability, precision, and efficiency to meet the demands of modern construction and infrastructure development.
ACE SA 490 W Piling Rig
Action Construction Equipment Limited
Haryana
The ACE SA 490 W Piling Rig is a high-performance solution for challenging underground foundation projects. With a maximum drilling depth of 121 m (using a friction kelly bar) and a drilling diameter of up to 3000 mm, it is ideal for metro rail, bridges, and urban infrastructure construction. Powered by a robust Cummins QSX15-C600 engine delivering 447 kW, it ensures superior performance even in hard soil conditions. The 490 kN·m rotary power head, coupled with advanced pressurized systems offering up to 420 kN of applied pressure, makes it a reliable choice for static pile driving and tunnel foundations. Designed for versatility, the ACE SA 490 W combines durability, precision, and efficiency to meet the demands of modern construction and infrastructure development.
Product Description
The ACE SA 490 W Piling Rig is a high-performance solution for challenging underground foundation pr...
View the full brochure
ACE SA 490 W Piling Rig Comparison with Similar Piling Rig
ACE SA 490 W Piling Rig
Wire Rope Diameter
-
Forward Tilt
5°
Backward Tilt
-
Lateral Tilt
-
Track Shoe Width
9000mm
Chassis Length
7030mm
Crawler Extension Width
5000mm
Swing Radius
-
Overall Height
31100mm
Transport Height
-
Transport Width
-
Operating Weight
158Ton
High Speed Throwing Soil
-
Max. Drilling Diameter
3000mm
Max. Drilling Depth (interlocking Kelly)
77m
Max. Drilling Depth (friction Kelly)
121m
Crowd Force (push)
420kN
Crowd Force (pull)
420kN
Stroke Length
8000mm
Max. Lifting Capacity
110kN
Max. Line Speed
65m/min
Max. Traction Force
-
Max. Travel Speed
1.2km/h
Max. Gradeability
5°
Friction Kelly Bar
121000mm
Interlocking Kelly Bar
77000mm
Engine Brand
cummins
Engine Model
QSX15-C600
Engine Power
447kW
Rated Speed
2100rpm
Emission Standard
-
Engine Displacement
-
Max Output Torque
490kN·m
Rotation Speed Range
24rpm
Mait India THH6 Rotary Drilling Piling Rig
Wire Rope Diameter
-
Forward Tilt
-
Backward Tilt
-
Lateral Tilt
-
Track Shoe Width
-
Chassis Length
-
Crawler Extension Width
-
Swing Radius
-
Overall Height
-
Transport Height
-
Transport Width
-
Operating Weight
-
High Speed Throwing Soil
-
Max. Drilling Diameter
-
Max. Drilling Depth (interlocking Kelly)
-
Max. Drilling Depth (friction Kelly)
-
Crowd Force (push)
-
Crowd Force (pull)
-
Stroke Length
-
Max. Lifting Capacity
-
Max. Line Speed
-
Max. Traction Force
-
Max. Travel Speed
-
Max. Gradeability
-
Friction Kelly Bar
-
Interlocking Kelly Bar
-
Engine Brand
-
Engine Model
-
Engine Power
-
Rated Speed
-
Emission Standard
-
Engine Displacement
-
Max Output Torque
-
Rotation Speed Range
-
Mait India MDT-60B Rotary Drilling Piling Rig
Wire Rope Diameter
-
Forward Tilt
-
Backward Tilt
-
Lateral Tilt
-
Track Shoe Width
-
Chassis Length
-
Crawler Extension Width
-
Swing Radius
-
Overall Height
-
Transport Height
-
Transport Width
-
Operating Weight
-
High Speed Throwing Soil
-
Max. Drilling Diameter
-
Max. Drilling Depth (interlocking Kelly)
-
Max. Drilling Depth (friction Kelly)
-
Crowd Force (push)
-
Crowd Force (pull)
-
Stroke Length
-
Max. Lifting Capacity
-
Max. Line Speed
-
Max. Traction Force
-
Max. Travel Speed
-
Max. Gradeability
-
Friction Kelly Bar
-
Interlocking Kelly Bar
-
Engine Brand
-
Engine Model
-
Engine Power
-
Rated Speed
-
Emission Standard
-
Engine Displacement
-
Max Output Torque
-
Rotation Speed Range
-
Mait India MDT-180B Rotary Drilling Piling Rig
Wire Rope Diameter
-
Forward Tilt
-
Backward Tilt
-
Lateral Tilt
-
Track Shoe Width
-
Chassis Length
-
Crawler Extension Width
-
Swing Radius
-
Overall Height
-
Transport Height
-
Transport Width
-
Operating Weight
-
High Speed Throwing Soil
-
Max. Drilling Diameter
-
Max. Drilling Depth (interlocking Kelly)
-
Max. Drilling Depth (friction Kelly)
-
Crowd Force (push)
-
Crowd Force (pull)
-
Stroke Length
-
Max. Lifting Capacity
-
Max. Line Speed
-
Max. Traction Force
-
Max. Travel Speed
-
Max. Gradeability
-
Friction Kelly Bar
-
Interlocking Kelly Bar
-
Engine Brand
-
Engine Model
-
Engine Power
-
Rated Speed
-
Emission Standard
-
Engine Displacement
-
Max Output Torque
-
Rotation Speed Range
-
XCMG XR80I Rotary Drilling Piling Rig
Wire Rope Diameter
-
Forward Tilt
-
Backward Tilt
-
Lateral Tilt
-
Track Shoe Width
-
Chassis Length
-
Crawler Extension Width
-
Swing Radius
-
Overall Height
-
Transport Height
-
Transport Width
-
Operating Weight
-
High Speed Throwing Soil
-
Max. Drilling Diameter
1200 mm
Max. Drilling Depth (interlocking Kelly)
25m
Max. Drilling Depth (friction Kelly)
-
Crowd Force (push)
-
Crowd Force (pull)
-
Stroke Length
2.5mm
Max. Lifting Capacity
-
Max. Line Speed
-
Max. Traction Force
-
Max. Travel Speed
-
Max. Gradeability
-
Friction Kelly Bar
-
Interlocking Kelly Bar
-
Engine Brand
Cummins
Engine Model
-
Engine Power
103kW
Rated Speed
-
Emission Standard
-
Engine Displacement
-
Max Output Torque
106 kN·m
Rotation Speed Range
-
