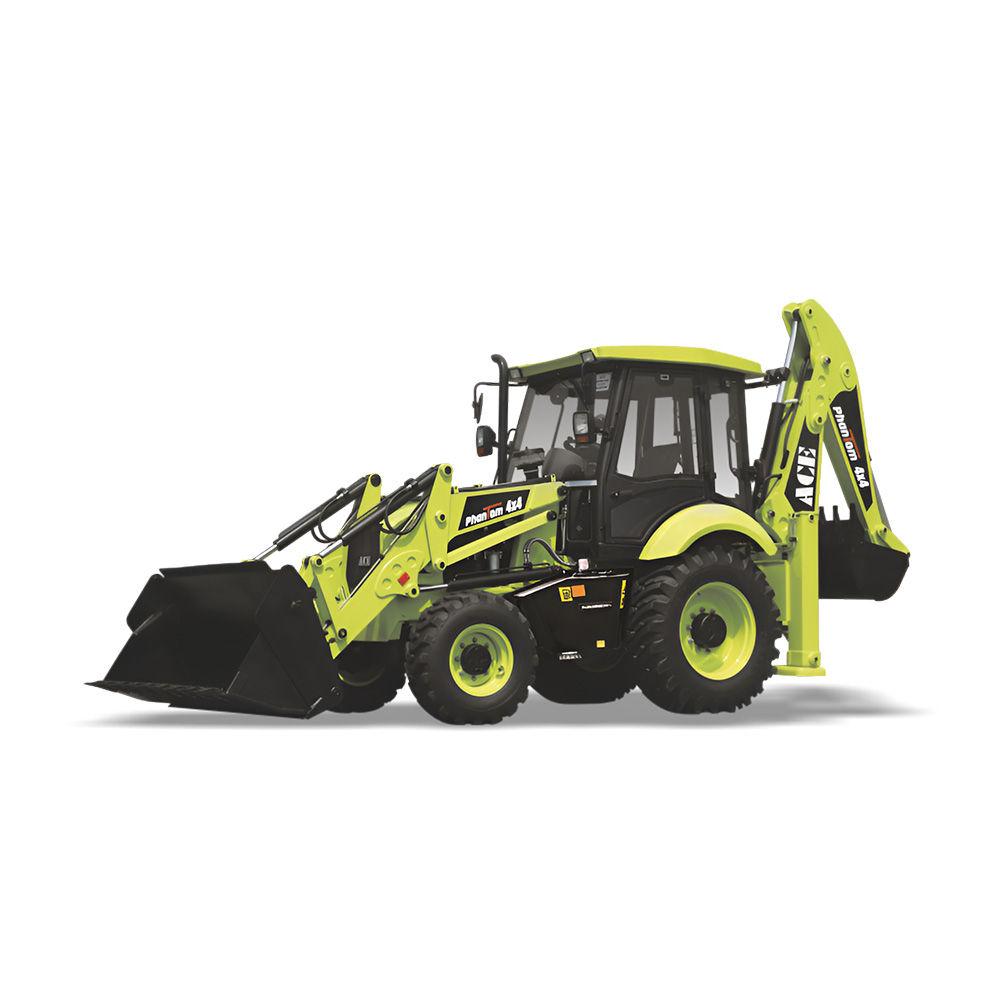

ACE Phantom 4WD N Backhoe Loader
Action Construction Equipment Limited
Haryana
The ACE Phantom 4WD N Backhoe Loader is a high-performance machine designed for demanding construction, industrial, and heavy-duty applications. With a powerful 96 HP engine and a substantial loader capacity of 8,040 kg, it excels in digging, moving, grading, and loading earth and loose aggregates. This versatile machine is extensively used in the construction and infrastructure sector, as well as in heavy industries and mining activities. The 4WD drive system provides superior traction and maneuverability across various terrains, making it ideal for tough job sites. Its torque range of 400 Nm at 1,400 rpm ensures robust performance in heavy-duty applications. The Phantom 4WD N is particularly well-suited for road construction, infrastructure development, and mining tasks. With a 150-liter fuel tank, it supports extended operation, offering reliability and efficiency for both urban and rural projects.
ACE Phantom 4WD N Backhoe Loader
Action Construction Equipment Limited
Haryana
The ACE Phantom 4WD N Backhoe Loader is a high-performance machine designed for demanding construction, industrial, and heavy-duty applications. With a powerful 96 HP engine and a substantial loader capacity of 8,040 kg, it excels in digging, moving, grading, and loading earth and loose aggregates. This versatile machine is extensively used in the construction and infrastructure sector, as well as in heavy industries and mining activities. The 4WD drive system provides superior traction and maneuverability across various terrains, making it ideal for tough job sites. Its torque range of 400 Nm at 1,400 rpm ensures robust performance in heavy-duty applications. The Phantom 4WD N is particularly well-suited for road construction, infrastructure development, and mining tasks. With a 150-liter fuel tank, it supports extended operation, offering reliability and efficiency for both urban and rural projects.
Product Description
The ACE Phantom 4WD N Backhoe Loader is a high-performance machine designed for demanding constructi...
View the full brochure
ACE Phantom 4WD N Backhoe Loader Comparison with Similar Backhoe Loader
ACE Phantom 4WD N Backhoe Loader
Engine Brand
Kirloskar
Engine Model
4RI1040TA
Engine Power
96HP
Max Torque
400Nm
Rated Speed
2200 rpm
Displacement
-L
Fuel Tank Capacity
150L
Transmission Type
Synchro shuttle transmission
Number Of Gears (forward/reverse)
4 / 4
Torque Converter Stall Ratio
-
Max Travel Speed
40km/h
Service Brake Type
Hydraulically actuated wet disc
Parking Brake Type
Mechanically actuated disc brake
Steering Type
Hydrostatic
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
3.5m
Turning Radius (unbraked)
4.4m
Operating Weight
8.04Ton
Max Lifting Capacity
1900kg
Hydraulic Flow Rate
118L/min
Hydraulic Pressure
225Bar
Max Digging Depth
4.60m
Max Reach At Ground
1.77m
Max Reach At Full Height
1.22m
Max Loading Height
3.35m
Bucket Capacity
0.30m³
Bucket Breakout Force
5700kgf
Dipper Breakout Force
-
Max Dump Height
2.96m
Max Load Over Height
3.35m
Max Hinge Pin Height
3.35m
Loader Bucket Capacity
1.1m³
Loader Arm Breakout Force
5200kgf
Shovel Breakout Force
-
Overall Length
6.2m
Overall Width
-
Overall Height
3.6m
Ground Clearance
0.56mm
Power Steering
Yes
Battery Voltage
12VV
Front Axle Oscillation
-
Standard Tyres (front/rear)
9.00-16-16 PR / 16.90-28-12 PR
CAT 424-2 Backhoe Loader
Engine Brand
CAT
Engine Model
C3.6
Engine Power
75HP
Max Torque
424Nm
Rated Speed
2200 rpm
Displacement
-
Fuel Tank Capacity
-
Transmission Type
Variable Displacement Pump
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Max Travel Speed
37km/h
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Operating Weight
7.98 Ton
Max Lifting Capacity
-
Hydraulic Flow Rate
132L/min
Hydraulic Pressure
-
Max Digging Depth
4.729m
Max Reach At Ground
5.612m
Max Reach At Full Height
-
Max Loading Height
4.015m
Bucket Capacity
1.05m³
Bucket Breakout Force
5,730kgf
Dipper Breakout Force
3,570kgf
Max Dump Height
2.794m
Max Load Over Height
-
Max Hinge Pin Height
-
Loader Bucket Capacity
1.05m³
Loader Arm Breakout Force
5,390kgf
Shovel Breakout Force
5,370kgf
Overall Length
5.708m
Overall Width
2.346m
Overall Height
2.346m
Ground Clearance
-
Power Steering
-
Battery Voltage
-
Front Axle Oscillation
-
Standard Tyres (front/rear)
-
CAT 424-4 Backhoe Loader
Engine Brand
Cat
Engine Model
C3.6
Engine Power
75HP
Max Torque
424Nm
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
-
Transmission Type
Variable Displacement Pump
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Max Travel Speed
40 km/h
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Operating Weight
8.045Ton
Max Lifting Capacity
-
Hydraulic Flow Rate
132L/min
Hydraulic Pressure
-
Max Digging Depth
4.707m
Max Reach At Ground
5.603m
Max Reach At Full Height
-
Max Loading Height
3.934m
Bucket Capacity
1.0m³
Bucket Breakout Force
5,730kgf
Dipper Breakout Force
3,570kgf
Max Dump Height
2.766m
Max Load Over Height
-
Max Hinge Pin Height
-
Loader Bucket Capacity
1.0m³
Loader Arm Breakout Force
5,370kgf
Shovel Breakout Force
6,036kgf
Overall Length
5.681m
Overall Width
2.346m
Overall Height
3.757m
Ground Clearance
-
Power Steering
-
Battery Voltage
-
Front Axle Oscillation
-
Standard Tyres (front/rear)
-
Mahindra Earth Master SX SMART 50 Backhoe Loader
Engine Brand
Mahindra
Engine Model
NEF Engine
Engine Power
49.2HP
Max Torque
235Nm
Rated Speed
2100rpm
Displacement
3.532L
Fuel Tank Capacity
120L
Transmission Type
Four Speed (4 Forward, 4 Reverse), Synchro Shuttle Transmission
Number Of Gears (forward/reverse)
4/4
Torque Converter Stall Ratio
-
Max Travel Speed
33.3km/h
Service Brake Type
Hydraulically actuated, oil immersed multi-disc
Parking Brake Type
Hand operated mechanically actuated caliper type brake
Steering Type
Hydrostatic power steering
Steering Angle
-
Oscillation Angle
16°
Turning Radius (braked)
4.943m
Turning Radius (unbraked)
5.037m
Operating Weight
7.477Ton
Max Lifting Capacity
-
Hydraulic Flow Rate
103L/min
Hydraulic Pressure
21Bar
Max Digging Depth
4.854m
Max Reach At Ground
5.658m
Max Reach At Full Height
3.605m
Max Loading Height
5.793m
Bucket Capacity
0.27m³
Bucket Breakout Force
5146kgf
Dipper Breakout Force
-
Max Dump Height
2.708m
Max Load Over Height
1.350m
Max Hinge Pin Height
-
Loader Bucket Capacity
1.1m³
Loader Arm Breakout Force
4667kgf
Shovel Breakout Force
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Power Steering
Yes
Battery Voltage
12V 100AhV
Front Axle Oscillation
16°
Standard Tyres (front/rear)
9.00-16 16 PR / 16.9-28 12 PR
Preet 4R1040Ta2 Backhoe Loader
Engine Brand
Preet
Engine Model
4R1040Ta2
Engine Power
96.7HP
Max Torque
416Nm
Rated Speed
2200rpm
Displacement
4.156L
Fuel Tank Capacity
150L
Transmission Type
4F-2R Manual Power shift
Number Of Gears (forward/reverse)
4/4
Torque Converter Stall Ratio
-
Max Travel Speed
36.8km/h
Service Brake Type
Hyd. Actuated, Dual line oil immersed multi disc type wet brakes
Parking Brake Type
Axle Mounted Spring Applied Hydraulic Release (SAHR)
Steering Type
Front wheel power steering
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
8.5m
Turning Radius (unbraked)
8.8m
Operating Weight
7.845Ton
Max Lifting Capacity
1800kg
Hydraulic Flow Rate
156L/min
Hydraulic Pressure
270Bar
Max Digging Depth
4.07m
Max Reach At Ground
5.4m
Max Reach At Full Height
-
Max Loading Height
4.30m
Bucket Capacity
0.26m³
Bucket Breakout Force
5700kgf
Dipper Breakout Force
3010kgf
Max Dump Height
2.85m
Max Load Over Height
3.33m
Max Hinge Pin Height
3.51m
Loader Bucket Capacity
1.1m³
Loader Arm Breakout Force
5300kgf
Shovel Breakout Force
5250kgf
Overall Length
6.0m
Overall Width
2.2m
Overall Height
3.65m
Ground Clearance
440mm
Power Steering
-
Battery Voltage
12V
Front Axle Oscillation
-
Standard Tyres (front/rear)
12.5 x 80-18 12 PR / 14.5 x 25 -20 PR
