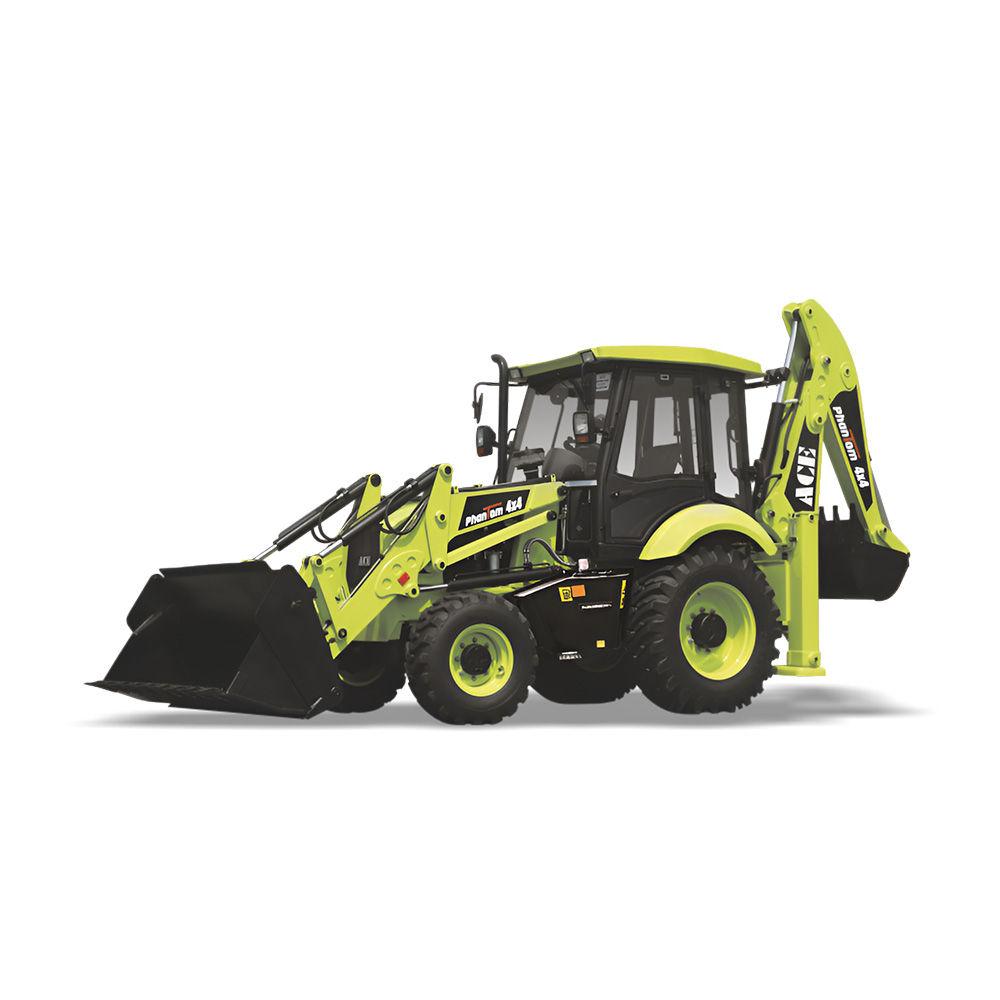

ACE Phantom 4WD Backhoe Loader
Action Construction Equipment Limited
Haryana
The ACE Phantom 4WD Backhoe Loader is a robust and versatile machine designed for demanding construction and heavy industry tasks. With a powerful 96 HP engine and a loader capacity of 8,040 kg, it excels in digging, moving, grading, and loading earth and loose aggregates. Its 4WD drive system ensures superior traction and maneuverability on various terrains, making it ideal for challenging job sites. The Phantom's impressive torque range of 377 Nm enhances its performance in heavy-duty applications, including road construction, infrastructure development, and mining operations. This machinery is widely used in the construction and infrastructure sectors for a range of applications, such as digging, moving, grading, and loading earth and other loose aggregates. Additionally, it finds extensive use in heavy industry and mining activities, further showcasing its adaptability and efficiency. Its durable design and high power output provide reliability and efficiency, making it a valuable asset for both urban and rural projects. The Phantom 4WD delivers exceptional performance and versatility, ensuring optimal results in a wide range of construction and industrial applications.
ACE Phantom 4WD Backhoe Loader
Action Construction Equipment Limited
Haryana
The ACE Phantom 4WD Backhoe Loader is a robust and versatile machine designed for demanding construction and heavy industry tasks. With a powerful 96 HP engine and a loader capacity of 8,040 kg, it excels in digging, moving, grading, and loading earth and loose aggregates. Its 4WD drive system ensures superior traction and maneuverability on various terrains, making it ideal for challenging job sites. The Phantom's impressive torque range of 377 Nm enhances its performance in heavy-duty applications, including road construction, infrastructure development, and mining operations. This machinery is widely used in the construction and infrastructure sectors for a range of applications, such as digging, moving, grading, and loading earth and other loose aggregates. Additionally, it finds extensive use in heavy industry and mining activities, further showcasing its adaptability and efficiency. Its durable design and high power output provide reliability and efficiency, making it a valuable asset for both urban and rural projects. The Phantom 4WD delivers exceptional performance and versatility, ensuring optimal results in a wide range of construction and industrial applications.
Product Description
The ACE Phantom 4WD Backhoe Loader is a robust and versatile machine designed for demanding construc...
View the full brochure
ACE Phantom 4WD Backhoe Loader Comparison with Similar Backhoe Loader

ACE Phantom 4WD Backhoe Loader
Engine Brand
KIRLOSKAR
Engine Model
4R1040TA
Engine Power
96HP
Max Torque
377Nm
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
150L
Transmission Type
Synchro shuttle transmission
Number Of Gears (forward/reverse)
4/4
Torque Converter Stall Ratio
-
Max Travel Speed
40km/h
Service Brake Type
Hydraulically actuated wet disc brakes at rear wheels with twin pedals in cabin for better control.
Parking Brake Type
Mechanically actuated disc brakes for parking.
Steering Type
Hydrostatic
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
3.5m
Turning Radius (unbraked)
4.4m
Operating Weight
8.04Ton
Max Lifting Capacity
-
Hydraulic Flow Rate
118L/min
Hydraulic Pressure
210Bar
Max Digging Depth
4.25m
Max Reach At Ground
6.73m
Max Reach At Full Height
1.22m
Max Loading Height
3.79m
Bucket Capacity
0.24m³
Bucket Breakout Force
-
Dipper Breakout Force
4000kgf
Max Dump Height
2.76m
Max Load Over Height
3.74m
Max Hinge Pin Height
3.63m
Loader Bucket Capacity
1.1m³
Loader Arm Breakout Force
2700kgf
Shovel Breakout Force
-
Overall Length
6.2m
Overall Width
-
Overall Height
3.6m
Ground Clearance
0.36mm
Power Steering
Hydrostatic steering for reliability and better control.
Battery Voltage
12V
Front Axle Oscillation
-
Standard Tyres (front/rear)
12.5 / 80 - 18-12 PR / 16.90 - 28 - 12 PR
Emission Standard
-
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
-
Reach At Ground Level
-
Dump Angle
-
Lift Path
-
Wheelbase
-
Turning Radius
-

CAT 424-2 Backhoe Loader
Engine Brand
CAT
Engine Model
C3.6
Engine Power
75HP
Max Torque
424Nm
Rated Speed
2200 rpm
Displacement
-
Fuel Tank Capacity
-
Transmission Type
Variable Displacement Pump
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Max Travel Speed
37km/h
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Operating Weight
7.98 Ton
Max Lifting Capacity
-
Hydraulic Flow Rate
132L/min
Hydraulic Pressure
-
Max Digging Depth
4.729m
Max Reach At Ground
5.612m
Max Reach At Full Height
-
Max Loading Height
4.015m
Bucket Capacity
1.05m³
Bucket Breakout Force
5,730kgf
Dipper Breakout Force
3,570kgf
Max Dump Height
2.794m
Max Load Over Height
-
Max Hinge Pin Height
-
Loader Bucket Capacity
1.05m³
Loader Arm Breakout Force
5,390kgf
Shovel Breakout Force
5,370kgf
Overall Length
5.708m
Overall Width
2.346m
Overall Height
2.346m
Ground Clearance
-
Power Steering
-
Battery Voltage
-
Front Axle Oscillation
-
Standard Tyres (front/rear)
-
Emission Standard
-
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
-
Reach At Ground Level
-
Dump Angle
-
Lift Path
-
Wheelbase
-
Turning Radius
-

Manitou MBL 745 HT Backhoe Loader
Engine Brand
Koel
Engine Model
4R1190TA-H.T Turbo Charged Water Cooled BS IV
Engine Power
74HP
Max Torque
400 NmNm
Rated Speed
2200 rpmrpm
Displacement
4.76 L
Fuel Tank Capacity
120 L
Transmission Type
Carraro
Number Of Gears (forward/reverse)
4 / 4
Torque Converter Stall Ratio
2.64:1
Max Travel Speed
40km/h
Service Brake Type
Wet disc brakes
Parking Brake Type
hydraulic-actuated wet disc brake
Steering Type
Power Steering
Steering Angle
16°°
Oscillation Angle
16°°
Turning Radius (braked)
5 mm
Turning Radius (unbraked)
5.70 mm
Operating Weight
7.91 Ton
Max Lifting Capacity
3467 kgkg
Hydraulic Flow Rate
119 L/min
Hydraulic Pressure
225Bar
Max Digging Depth
4.741m
Max Reach At Ground
5 m
Max Reach At Full Height
0.71 mm
Max Loading Height
3.87m
Bucket Capacity
0.27 m³
Bucket Breakout Force
5810kgf
Dipper Breakout Force
3942kgf
Max Dump Height
2.78m
Max Load Over Height
3.57m
Max Hinge Pin Height
3.57m
Loader Bucket Capacity
1 m³ m³
Loader Arm Breakout Force
4691kgf
Shovel Breakout Force
5229kgf
Overall Length
7.33 m
Overall Width
2.33 m
Overall Height
3.79 m
Ground Clearance
280 mmmm
Power Steering
Yes
Battery Voltage
12 V
Front Axle Oscillation
16 °°
Standard Tyres (front/rear)
12.5 x 18 - 12 PR / 16.9 x 28-12PR
Emission Standard
-
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
-
Reach At Ground Level
-
Dump Angle
-
Lift Path
-
Wheelbase
-
Turning Radius
-

CASE 770EX Backhoe Loader
Engine Brand
Ashok Leyland
Engine Model
H4C4E7422*W
Engine Power
74HP
Max Torque
340Nm
Rated Speed
2200rpm
Displacement
3.84L
Fuel Tank Capacity
129L
Transmission Type
4F-4R Power Shuttle Synchromesh Transmission
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Max Travel Speed
34.1km/h
Service Brake Type
Hydraulic foot operated, 2 disc per side
Parking Brake Type
Mechanically actuated caliper type brake pack on rear axle input shaft
Steering Type
Power Steering
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
9.2m
Turning Radius (unbraked)
11.1m
Operating Weight
7.78Ton
Max Lifting Capacity
3515kg
Hydraulic Flow Rate
126L/min
Hydraulic Pressure
195Bar
Max Digging Depth
4.40m
Max Reach At Ground
5.625m
Max Reach At Full Height
2.15m
Max Loading Height
3.8m
Bucket Capacity
0.26m³
Bucket Breakout Force
5206kgf
Dipper Breakout Force
3031kgf
Max Dump Height
2.73m
Max Load Over Height
3.3m
Max Hinge Pin Height
3.60m
Loader Bucket Capacity
1.1m³
Loader Arm Breakout Force
4750kgf
Shovel Breakout Force
-
Overall Length
5.88m
Overall Width
2.27m
Overall Height
3.85m
Ground Clearance
380mm
Power Steering
Yes
Battery Voltage
12V
Front Axle Oscillation
21°
Standard Tyres (front/rear)
Front: 9x16 -16PR / Rear: 16.9x28 -12PR
Emission Standard
-
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
-
Reach At Ground Level
-
Dump Angle
-
Lift Path
-
Wheelbase
-
Turning Radius
-

Bull HD96 4WD Backhoe Loader
Engine Brand
KIRLOSKAR
Engine Model
4R 1040 T EU STAGE II (Diesel)
Engine Power
96HP
Max Torque
377Nm
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
115 / 150L
Transmission Type
CARRARO synchroshuttle
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Max Travel Speed
40km/h
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Operating Weight
8.15Ton
Max Lifting Capacity
-
Hydraulic Flow Rate
134L/min
Hydraulic Pressure
240Bar
Max Digging Depth
-
Max Reach At Ground
-
Max Reach At Full Height
1.42 / 1.28m
Max Loading Height
-
Bucket Capacity
1.1m³
Bucket Breakout Force
-
Dipper Breakout Force
-
Max Dump Height
2.93 / 2.96m
Max Load Over Height
-
Max Hinge Pin Height
3.61m
Loader Bucket Capacity
-
Loader Arm Breakout Force
5251kgf
Shovel Breakout Force
-
Overall Length
6.04m
Overall Width
2.35m
Overall Height
3.71m
Ground Clearance
480mm
Power Steering
-
Battery Voltage
-
Front Axle Oscillation
-
Standard Tyres (front/rear)
-
Emission Standard
Stage II
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
125L
Reach At Ground Level
1.60 / 1.47m
Dump Angle
45°
Lift Path
-
Wheelbase
2.22m
Turning Radius
8.8 / 11.6m
