ACE Phantom 2WD Backhoe Loader
Action Construction Equipment Limited
The ACE Phantom 2WD Backhoe Loader is a versatile and powerful machine designed for a range of construction and heavy industry tasks. With engine options providing 74 or 95 HP, it delivers robust performance for digging, moving, grading, and loading earth and loose aggregates. The loader offers a capacity of 1.10 or 1.00 m³, while the excavator bucket capacity is 0.24 m³, making it suitable for diverse applications. Available in both 2WD and 4WD configurations, the Phantom provides flexibility for different terrain conditions. ACE Backhoe Loaders are widely used in the construction and infrastructure sector for handling tasks such as road maintenance, excavation, and loading operations. These machines also find applications in heavy industry and mining activities, showcasing their versatility and efficiency. Its durable design and high power make it ideal for construction, infrastructure projects, and mining operations. Whether handling road maintenance or excavation tasks, the Phantom delivers reliability and efficiency, ensuring optimal performance across various job sites.
ACE Phantom 2WD Backhoe Loader
Action Construction Equipment Limited
The ACE Phantom 2WD Backhoe Loader is a versatile and powerful machine designed for a range of construction and heavy industry tasks. With engine options providing 74 or 95 HP, it delivers robust performance for digging, moving, grading, and loading earth and loose aggregates. The loader offers a capacity of 1.10 or 1.00 m³, while the excavator bucket capacity is 0.24 m³, making it suitable for diverse applications. Available in both 2WD and 4WD configurations, the Phantom provides flexibility for different terrain conditions. ACE Backhoe Loaders are widely used in the construction and infrastructure sector for handling tasks such as road maintenance, excavation, and loading operations. These machines also find applications in heavy industry and mining activities, showcasing their versatility and efficiency. Its durable design and high power make it ideal for construction, infrastructure projects, and mining operations. Whether handling road maintenance or excavation tasks, the Phantom delivers reliability and efficiency, ensuring optimal performance across various job sites.
Product Description
The ACE Phantom 2WD Backhoe Loader is a versatile and powerful machine designed for a range of const...
View the full brochure
ACE Phantom 2WD Backhoe Loader Comparison with Similar Backhoe Loader

ACE Phantom 2WD Backhoe Loader
Shovel Breakout Force
-
Overall Length
6.2m
Overall Width
-
Overall Height
3.6m
Ground Clearance
0.35mm
Power Steering
Yes
Battery Voltage
12V
Front Axle Oscillation
-
Standard Tyres (front/rear)
9.00 - 16 - 16 PR (front), 16.90 - 28 - 12 PR (rear)
Max Dump Height
2.76m
Max Load Over Height
3.34m
Max Hinge Pin Height
3.63m
Max Reach At Full Height
5.47m
Loader Bucket Capacity
1.1m³
Loader Arm Breakout Force
4950kgf
Fuel Tank Capacity
150L
Transmission Type
Synchro shuttle transmission
Engine Brand
Kirloskar
Engine Model
4R1040TC
Engine Power
96HP
Max Torque
377Nm
Rated Speed
2200rpm
Displacement
-
Number Of Gears (forward/reverse)
4 forward, 4 reverse
Torque Converter Stall Ratio
-
Max Travel Speed
40km/h
Service Brake Type
Hydraulically actuated wet disc
Parking Brake Type
Mechanically actuated disc
Steering Type
Hydrostatic
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
3.5m
Turning Radius (unbraked)
4.4m
Operating Weight
8.04Ton
Max Lifting Capacity
1900kg
Hydraulic Flow Rate
118L/min
Hydraulic Pressure
210Bar
Max Digging Depth
4.25m
Max Reach At Ground
6.73m
Max Loading Height
3.79m
Bucket Capacity
0.24m³
Bucket Breakout Force
4000kgf
Dipper Breakout Force
4000kgf

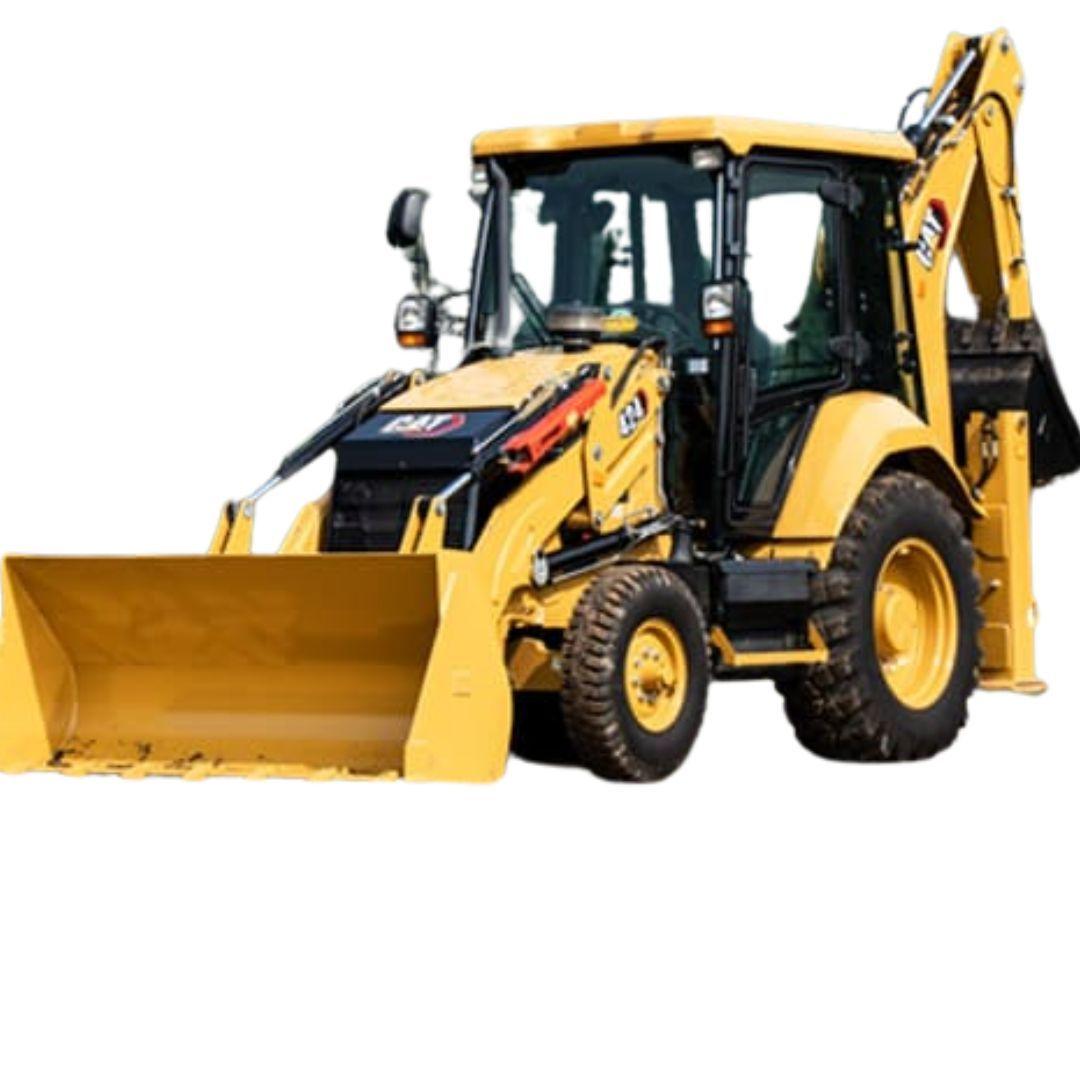

CAT 424-2 Backhoe Loader
Shovel Breakout Force
5,370kgf
Overall Length
5.708m
Overall Width
2.346m
Overall Height
2.346m
Ground Clearance
-
Power Steering
-
Battery Voltage
-
Front Axle Oscillation
-
Standard Tyres (front/rear)
-
Max Dump Height
2.794m
Max Load Over Height
-
Max Hinge Pin Height
-
Max Reach At Full Height
-
Loader Bucket Capacity
1.05m³
Loader Arm Breakout Force
5,390kgf
Fuel Tank Capacity
-
Transmission Type
Variable Displacement Pump
Engine Brand
CAT
Engine Model
C3.6
Engine Power
75HP
Max Torque
424Nm
Rated Speed
2200 rpm
Displacement
-
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Max Travel Speed
37km/h
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Operating Weight
7.98 Ton
Max Lifting Capacity
-
Hydraulic Flow Rate
132L/min
Hydraulic Pressure
-
Max Digging Depth
4.729m
Max Reach At Ground
5.612m
Max Loading Height
4.015m
Bucket Capacity
1.05m³
Bucket Breakout Force
5,730kgf
Dipper Breakout Force
3,570kgf

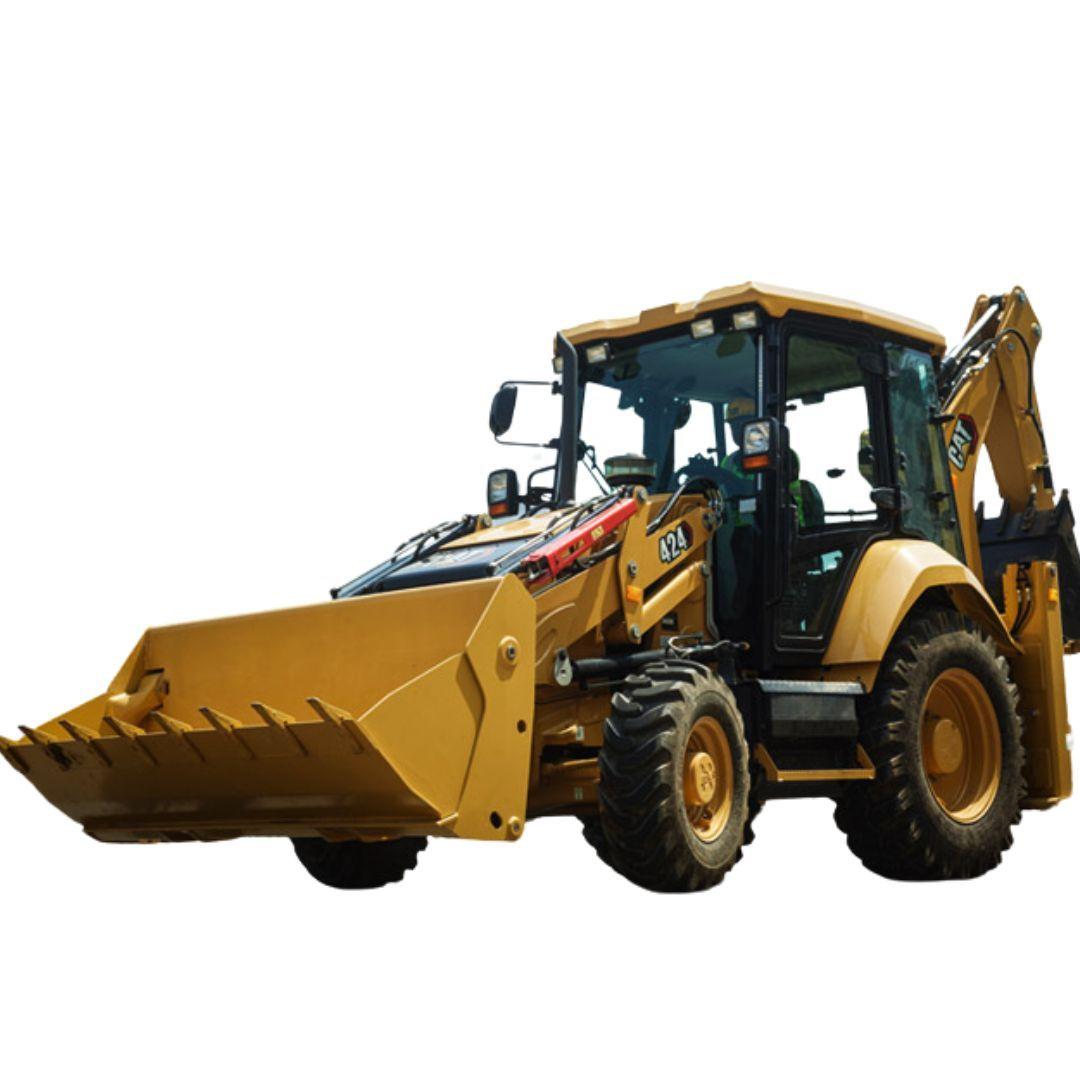

CAT 424-4 Backhoe Loader
Shovel Breakout Force
6,036kgf
Overall Length
5.681m
Overall Width
2.346m
Overall Height
3.757m
Ground Clearance
-
Power Steering
-
Battery Voltage
-
Front Axle Oscillation
-
Standard Tyres (front/rear)
-
Max Dump Height
2.766m
Max Load Over Height
-
Max Hinge Pin Height
-
Max Reach At Full Height
-
Loader Bucket Capacity
1.0m³
Loader Arm Breakout Force
5,370kgf
Fuel Tank Capacity
-
Transmission Type
Variable Displacement Pump
Engine Brand
Cat
Engine Model
C3.6
Engine Power
75HP
Max Torque
424Nm
Rated Speed
2200rpm
Displacement
-
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Max Travel Speed
40 km/h
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Operating Weight
8.045Ton
Max Lifting Capacity
-
Hydraulic Flow Rate
132L/min
Hydraulic Pressure
-
Max Digging Depth
4.707m
Max Reach At Ground
5.603m
Max Loading Height
3.934m
Bucket Capacity
1.0m³
Bucket Breakout Force
5,730kgf
Dipper Breakout Force
3,570kgf

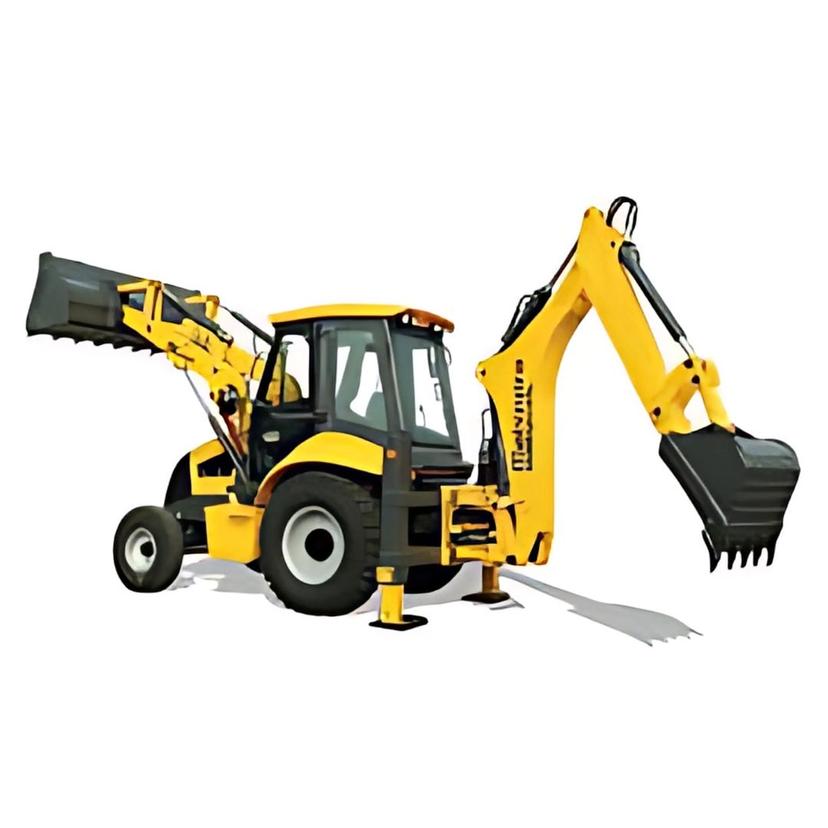

Mahindra Earth Master SX SMART 50 Backhoe Loader
Shovel Breakout Force
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Power Steering
Yes
Battery Voltage
12V 100AhV
Front Axle Oscillation
16°
Standard Tyres (front/rear)
9.00-16 16 PR / 16.9-28 12 PR
Max Dump Height
2.708m
Max Load Over Height
1.350m
Max Hinge Pin Height
-
Max Reach At Full Height
3.605m
Loader Bucket Capacity
1.1m³
Loader Arm Breakout Force
4667kgf
Fuel Tank Capacity
120L
Transmission Type
Four Speed (4 Forward, 4 Reverse), Synchro Shuttle Transmission
Engine Brand
Mahindra
Engine Model
NEF Engine
Engine Power
49.2HP
Max Torque
235Nm
Rated Speed
2100rpm
Displacement
3.532L
Number Of Gears (forward/reverse)
4/4
Torque Converter Stall Ratio
-
Max Travel Speed
33.3km/h
Service Brake Type
Hydraulically actuated, oil immersed multi-disc
Parking Brake Type
Hand operated mechanically actuated caliper type brake
Steering Type
Hydrostatic power steering
Steering Angle
-
Oscillation Angle
16°
Turning Radius (braked)
4.943m
Turning Radius (unbraked)
5.037m
Operating Weight
7.477Ton
Max Lifting Capacity
-
Hydraulic Flow Rate
103L/min
Hydraulic Pressure
21Bar
Max Digging Depth
4.854m
Max Reach At Ground
5.658m
Max Loading Height
5.793m
Bucket Capacity
0.27m³
Bucket Breakout Force
5146kgf
Dipper Breakout Force
-

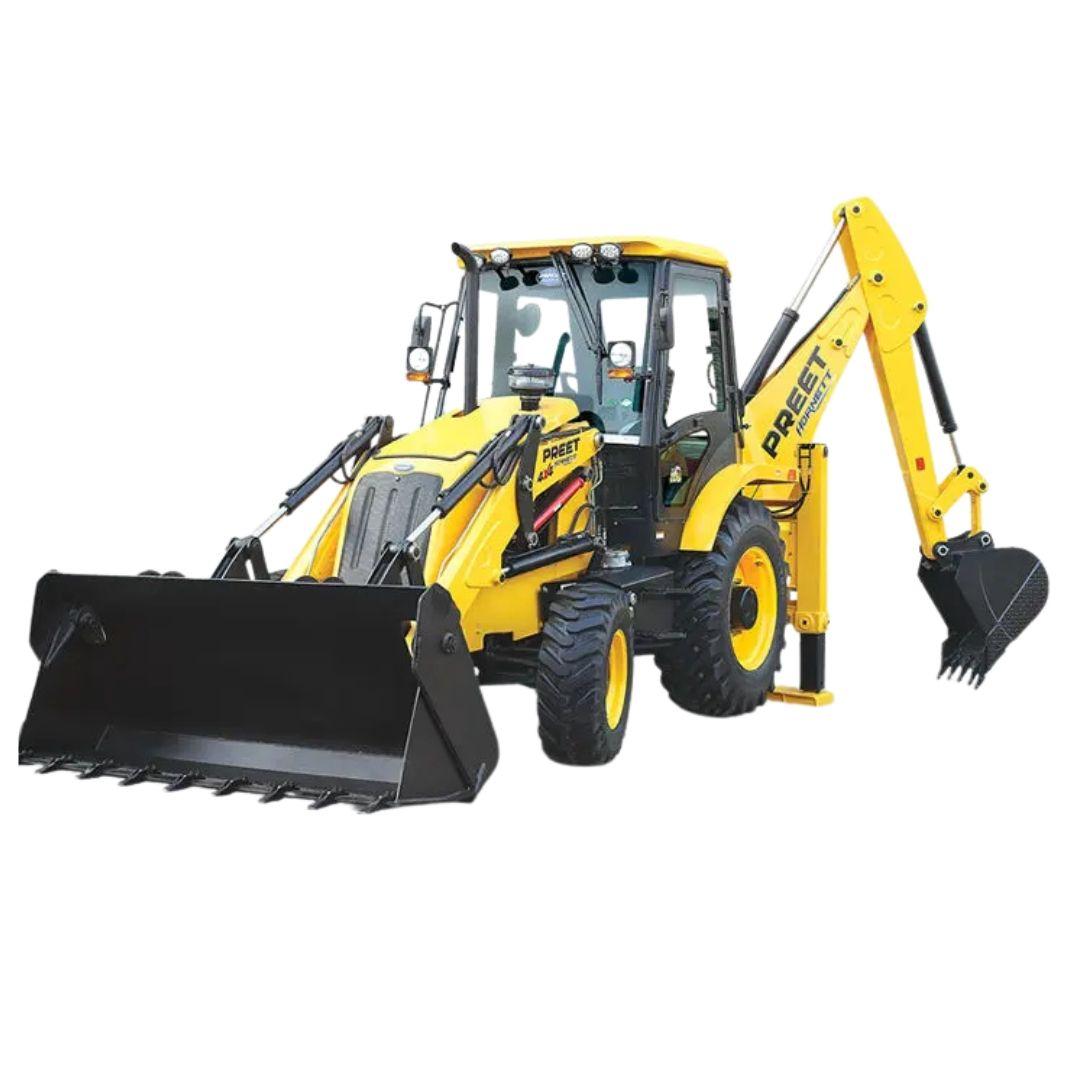

Preet 4R1040Ta2 Backhoe Loader
Shovel Breakout Force
5250kgf
Overall Length
6.0m
Overall Width
2.2m
Overall Height
3.65m
Ground Clearance
440mm
Power Steering
-
Battery Voltage
12V
Front Axle Oscillation
-
Standard Tyres (front/rear)
12.5 x 80-18 12 PR / 14.5 x 25 -20 PR
Max Dump Height
2.85m
Max Load Over Height
3.33m
Max Hinge Pin Height
3.51m
Max Reach At Full Height
-
Loader Bucket Capacity
1.1m³
Loader Arm Breakout Force
5300kgf
Fuel Tank Capacity
150L
Transmission Type
4F-2R Manual Power shift
Engine Brand
Preet
Engine Model
4R1040Ta2
Engine Power
96.7HP
Max Torque
416Nm
Rated Speed
2200rpm
Displacement
4.156L
Number Of Gears (forward/reverse)
4/4
Torque Converter Stall Ratio
-
Max Travel Speed
36.8km/h
Service Brake Type
Hyd. Actuated, Dual line oil immersed multi disc type wet brakes
Parking Brake Type
Axle Mounted Spring Applied Hydraulic Release (SAHR)
Steering Type
Front wheel power steering
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
8.5m
Turning Radius (unbraked)
8.8m
Operating Weight
7.845Ton
Max Lifting Capacity
1800kg
Hydraulic Flow Rate
156L/min
Hydraulic Pressure
270Bar
Max Digging Depth
4.07m
Max Reach At Ground
5.4m
Max Loading Height
4.30m
Bucket Capacity
0.26m³
Bucket Breakout Force
5700kgf
Dipper Breakout Force
3010kgf
Compare Backhoe Loader

ACE Phantom 2WD Backhoe Loader

CAT 424-2 Backhoe Loader
Add any equipment
to compare

Get instant quotation on whatsapp
Connect with "Action Construction Equipment Limited"
Connect with Seller Instantly
