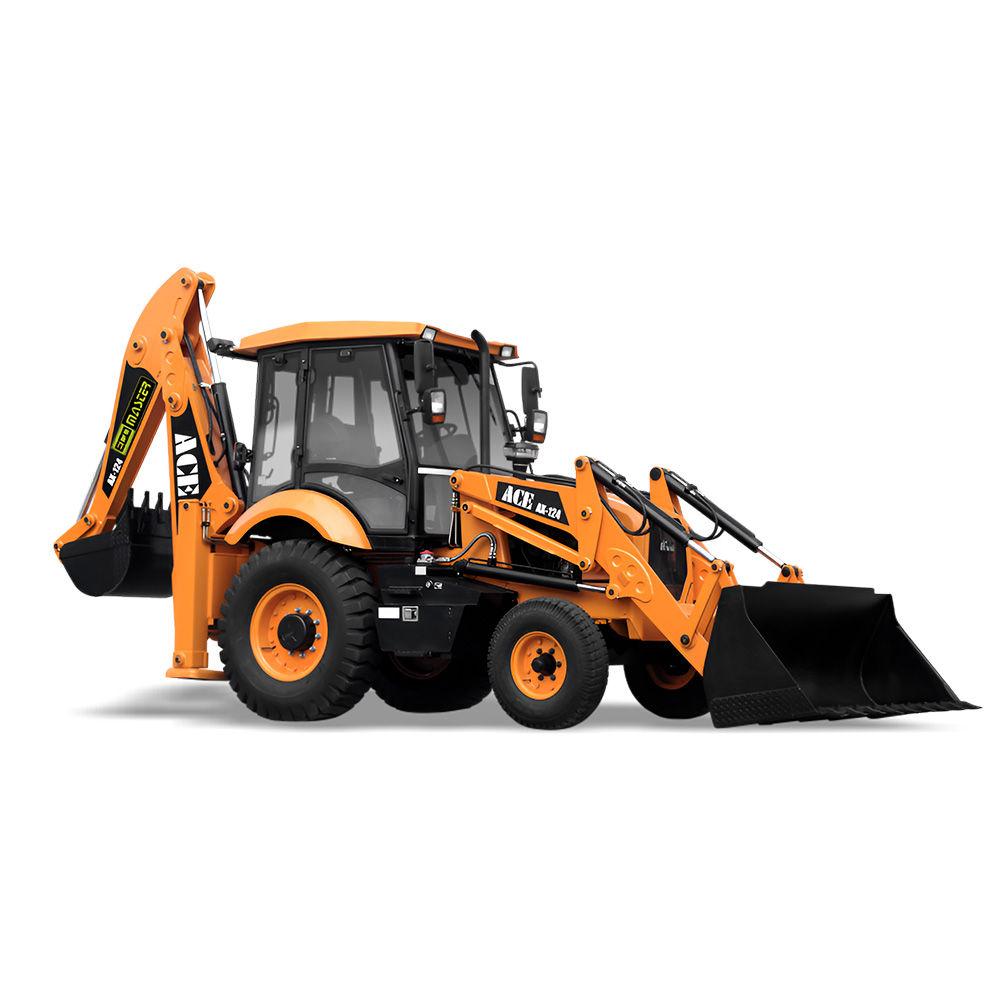

ACE AX 124 Eco-Master Backhoe Loader

Action Construction Equipment Limited

Haryana

The ACE AX 124 Eco-master Backhoe Loader is designed for efficient performance in various construction and industrial applications. Powered by a 49.5 HP engine, it offers reliable power for digging, moving, grading, and loading earth and loose aggregates. With a loader capacity of 7,910 kg and an excavator capacity of 0.24 m³, this machine is ideal for small to medium-sized projects. The 2WD configuration ensures good maneuverability on diverse terrains, while the 150-liter fuel tank supports extended operation. The AX 124 Eco-master is also available in a 4WD configuration, offering enhanced versatility for challenging terrains and tasks. This model is well-suited for applications in infrastructure projects, light material handling in mining, heavy industry operations, and road maintenance. Its efficient design and performance make it a valuable asset for a wide range of construction and heavy industry needs, providing reliable support for tasks in the construction and infrastructure sector.

Engine Brand
ACE
Engine Power
49.5HP
Operating Weight
7.91Ton
Bucket Capacity
0.24
Loader Bucket Capacity
1.1

Product Description

The ACE AX 124 Eco-master Backhoe Loader is designed for efficient performance in various constructi...

View the full brochure

ACE AX 124 Eco-Master Backhoe Loader Comparison with Similar Backhoe Loader

ACE AX 124 Eco-Master Backhoe Loader

ACE AX 124 Eco-Master Backhoe Loader

Get Latest Price
Rating
4.4

Steering Type

Hydrostatic

Steering Angle

-

Oscillation Angle

-

Turning Radius (unbraked)

4.4m

Engine Brand

ACE

Turning Radius (braked)

3.5m

Engine Model

A50HT-BSIII

Engine Power

49.5HP

Max Torque

245Nm

Rated Speed

2200rpm

Displacement

-

Fuel Tank Capacity

150L

Transmission Type

Carraro Transmission

Number Of Gears (forward/reverse)

-

Torque Converter Stall Ratio

-

Max Travel Speed

28km/h

Service Brake Type

Hydraulically actuated wet disc brakes

Parking Brake Type

Mechanically actuated disc brakes

Operating Weight

7.91Ton

Max Lifting Capacity

1800kg

Hydraulic Flow Rate

99L/min

Hydraulic Pressure

210Bar

Max Digging Depth

4.25m

Max Reach At Ground

6.73m

Max Reach At Full Height

0.89m

Max Loading Height

5.47m

Bucket Capacity

0.24

Bucket Breakout Force

3010kgf

Dipper Breakout Force

-

Max Dump Height

2.76m

Max Load Over Height

3.34m

Max Hinge Pin Height

3.77m

Loader Bucket Capacity

1.1

Loader Arm Breakout Force

4950kgf

Shovel Breakout Force

-

Overall Length

6.2m

Overall Width

-

Overall Height

3.6m

Ground Clearance

350mm

Power Steering

yes

Battery Voltage

12V

Front Axle Oscillation

-

Standard Tyres (front/rear)

9.00 - 16 / 16.90 - 28

Currently Viewing
CAT 424-2 Backhoe Loader

CAT 424-2 Backhoe Loader

Get Latest Price
Rating
4.4

Steering Type

-

Steering Angle

-

Oscillation Angle

-

Turning Radius (unbraked)

-

Engine Brand

CAT

Turning Radius (braked)

-

Engine Model

C3.6

Engine Power

75HP

Max Torque

424Nm

Rated Speed

2200 rpm

Displacement

-

Fuel Tank Capacity

-

Transmission Type

Variable Displacement Pump

Number Of Gears (forward/reverse)

-

Torque Converter Stall Ratio

-

Max Travel Speed

37km/h

Service Brake Type

-

Parking Brake Type

-

Operating Weight

7.98 Ton

Max Lifting Capacity

-

Hydraulic Flow Rate

132L/min

Hydraulic Pressure

-

Max Digging Depth

4.729m

Max Reach At Ground

5.612m

Max Reach At Full Height

-

Max Loading Height

4.015m

Bucket Capacity

1.05

Bucket Breakout Force

5,730kgf

Dipper Breakout Force

3,570kgf

Max Dump Height

2.794m

Max Load Over Height

-

Max Hinge Pin Height

-

Loader Bucket Capacity

1.05

Loader Arm Breakout Force

5,390kgf

Shovel Breakout Force

5,370kgf

Overall Length

5.708m

Overall Width

2.346m

Overall Height

2.346m

Ground Clearance

-

Power Steering

-

Battery Voltage

-

Front Axle Oscillation

-

Standard Tyres (front/rear)

-

CAT 424-4 Backhoe Loader

CAT 424-4 Backhoe Loader

Get Latest Price
Rating
4.4

Steering Type

-

Steering Angle

-

Oscillation Angle

-

Turning Radius (unbraked)

-

Engine Brand

Cat

Turning Radius (braked)

-

Engine Model

C3.6

Engine Power

75HP

Max Torque

424Nm

Rated Speed

2200rpm

Displacement

-

Fuel Tank Capacity

-

Transmission Type

Variable Displacement Pump

Number Of Gears (forward/reverse)

-

Torque Converter Stall Ratio

-

Max Travel Speed

40 km/h

Service Brake Type

-

Parking Brake Type

-

Operating Weight

8.045Ton

Max Lifting Capacity

-

Hydraulic Flow Rate

132L/min

Hydraulic Pressure

-

Max Digging Depth

4.707m

Max Reach At Ground

5.603m

Max Reach At Full Height

-

Max Loading Height

3.934m

Bucket Capacity

1.0

Bucket Breakout Force

5,730kgf

Dipper Breakout Force

3,570kgf

Max Dump Height

2.766m

Max Load Over Height

-

Max Hinge Pin Height

-

Loader Bucket Capacity

1.0

Loader Arm Breakout Force

5,370kgf

Shovel Breakout Force

6,036kgf

Overall Length

5.681m

Overall Width

2.346m

Overall Height

3.757m

Ground Clearance

-

Power Steering

-

Battery Voltage

-

Front Axle Oscillation

-

Standard Tyres (front/rear)

-

JCB Backhoe Loader

JCB Backhoe Loader

₹35,00,001 - ₹
Rating
4.4

Steering Type

1

Steering Angle

1°

Oscillation Angle

1°

Turning Radius (unbraked)

11m

Engine Brand

JCB

Turning Radius (braked)

1m

Engine Model

JCB 448

Engine Power

11HP

Max Torque

1Nm

Rated Speed

1rpm

Displacement

1L

Fuel Tank Capacity

1L

Transmission Type

11

Number Of Gears (forward/reverse)

1

Torque Converter Stall Ratio

11

Max Travel Speed

1km/h

Service Brake Type

1

Parking Brake Type

1

Operating Weight

1Ton

Max Lifting Capacity

1kg

Hydraulic Flow Rate

1L/min

Hydraulic Pressure

1Bar

Max Digging Depth

11m

Max Reach At Ground

1m

Max Reach At Full Height

1m

Max Loading Height

1m

Bucket Capacity

1

Bucket Breakout Force

1kgf

Dipper Breakout Force

1kgf

Max Dump Height

1m

Max Load Over Height

1m

Max Hinge Pin Height

1m

Loader Bucket Capacity

11

Loader Arm Breakout Force

1kgf

Shovel Breakout Force

11kgf

Overall Length

11m

Overall Width

1m

Overall Height

1m

Ground Clearance

1mm

Power Steering

1

Battery Voltage

1V

Front Axle Oscillation

1°

Standard Tyres (front/rear)

1

Mahindra Earth Master SX SMART 50  Backhoe Loader

Mahindra Earth Master SX SMART 50 Backhoe Loader

Get Latest Price
Rating
4.4

Steering Type

Hydrostatic power steering

Steering Angle

-

Oscillation Angle

16°

Turning Radius (unbraked)

5.037m

Engine Brand

Mahindra

Turning Radius (braked)

4.943m

Engine Model

NEF Engine

Engine Power

49.2HP

Max Torque

235Nm

Rated Speed

2100rpm

Displacement

3.532L

Fuel Tank Capacity

120L

Transmission Type

Four Speed (4 Forward, 4 Reverse), Synchro Shuttle Transmission

Number Of Gears (forward/reverse)

4/4

Torque Converter Stall Ratio

-

Max Travel Speed

33.3km/h

Service Brake Type

Hydraulically actuated, oil immersed multi-disc

Parking Brake Type

Hand operated mechanically actuated caliper type brake

Operating Weight

7.477Ton

Max Lifting Capacity

-

Hydraulic Flow Rate

103L/min

Hydraulic Pressure

21Bar

Max Digging Depth

4.854m

Max Reach At Ground

5.658m

Max Reach At Full Height

3.605m

Max Loading Height

5.793m

Bucket Capacity

0.27

Bucket Breakout Force

5146kgf

Dipper Breakout Force

-

Max Dump Height

2.708m

Max Load Over Height

1.350m

Max Hinge Pin Height

-

Loader Bucket Capacity

1.1

Loader Arm Breakout Force

4667kgf

Shovel Breakout Force

-

Overall Length

-

Overall Width

-

Overall Height

-

Ground Clearance

-

Power Steering

Yes

Battery Voltage

12V 100AhV

Front Axle Oscillation

16°

Standard Tyres (front/rear)

9.00-16 16 PR / 16.9-28 12 PR
