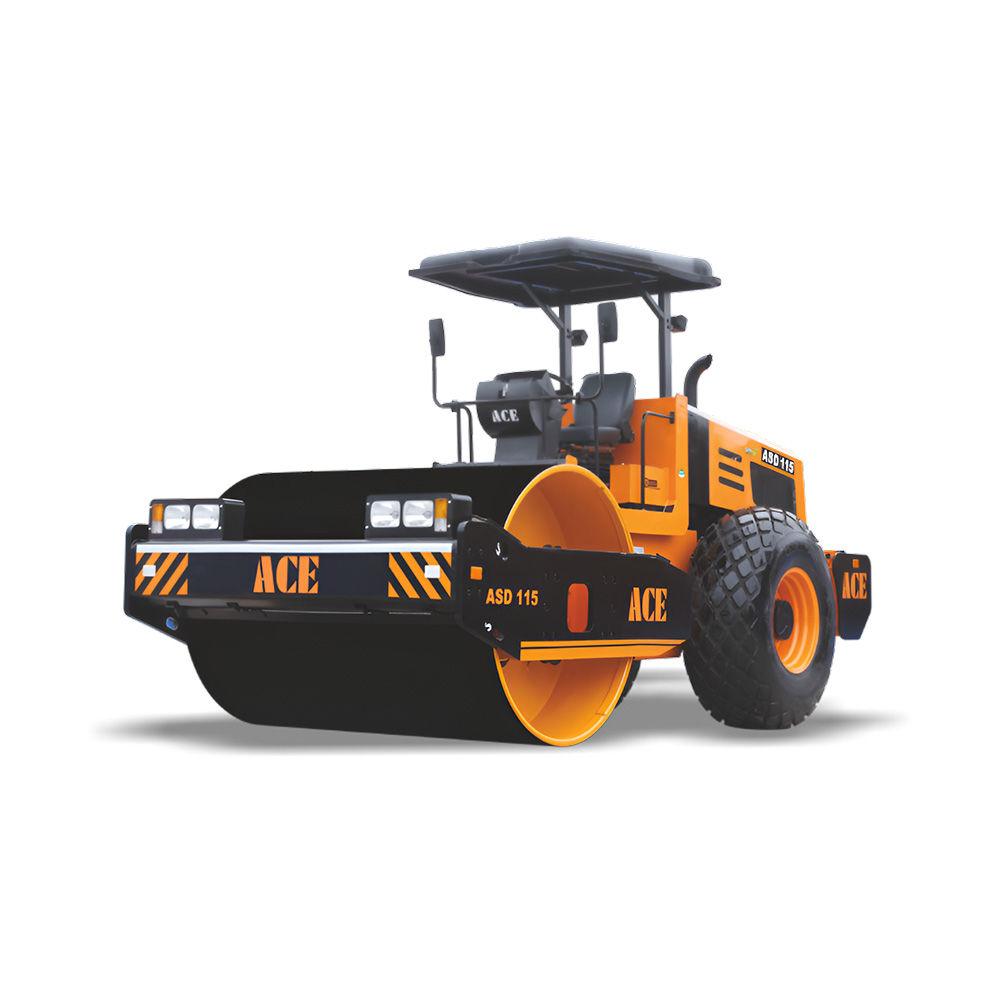

ACE ASD 115 - STD Vibratory Roller
Action Construction Equipment Limited
The ACE ASD 115 - STD Vibratory Roller is a high-performance soil compaction machine engineered for heavy-duty construction applications. Powered by a robust 110 HP Mahindra BS-IV engine, it delivers exceptional efficiency with a maximum centrifugal force of 254 kN and static linear load of 30.52 kg/cm. Its hydrostatic drive system, 11,000 kg operating weight, and articulated steering with a 37° angle ensure smooth maneuverability and superior ground contact. Ideal for road construction, industrial site preparation, and large-scale infrastructure projects, the ASD 115 STD combines advanced vibration technology with reliable gradeability up to 45%. With features like a 315-liter fuel tank and variable amplitude settings (1.85/0.8 mm), it guarantees extended operation and precise compaction performance, making it a trusted choice for contractors seeking productivity and durability.
ACE ASD 115 - STD Vibratory Roller
Action Construction Equipment Limited
The ACE ASD 115 - STD Vibratory Roller is a high-performance soil compaction machine engineered for heavy-duty construction applications. Powered by a robust 110 HP Mahindra BS-IV engine, it delivers exceptional efficiency with a maximum centrifugal force of 254 kN and static linear load of 30.52 kg/cm. Its hydrostatic drive system, 11,000 kg operating weight, and articulated steering with a 37° angle ensure smooth maneuverability and superior ground contact. Ideal for road construction, industrial site preparation, and large-scale infrastructure projects, the ASD 115 STD combines advanced vibration technology with reliable gradeability up to 45%. With features like a 315-liter fuel tank and variable amplitude settings (1.85/0.8 mm), it guarantees extended operation and precise compaction performance, making it a trusted choice for contractors seeking productivity and durability.
Product Description
The ACE ASD 115 - STD Vibratory Roller is a high-performance soil compaction machine engineered for ...
View the full brochure
ACE ASD 115 - STD Vibratory Roller Comparison with Similar Single Drum Soil Compactor
ACE ASD 115 - STD Vibratory Roller
Engine Brand
Mahindra
Engine Model
MCV/NGS51110CE4
Engine Power
110HP
Max Torque
-
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
315L
Transmission Type
Hydrostatic drive, infinitely variable planetary axle with limited slip differential
Max Travel Speed
11km/h
Service Brake Type
Closed loop hydrostatic brakes on forward/reverse lever
Parking Brake Type
Spring applied/hydraulically released multi disc brake mounted on the drum drive gear reducer & within rear axle
Steering Type
Hydrostatic steering
Steering Angle
37°
Oscillation Angle
15°
Turning Radius (inner)
3.96m
Turning Radius (outer)
5.05m
Operating Weight
12.1Ton
Front Axle Load
-
Rear Axle Load
-
Static Linear Load
33.51kg/cm
Frequency (low)
33Hz
Frequency (high)
40Hz
Amplitude (low)
0.8mm
Amplitude (high)
1.80mm
Centrifugal Force
312kN
Max Applied Force
38kN
Without Drum Drive
47%
With Drum Drive
55%
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Drum Width
-
Drum Diameter
-
Drum Shell Thickness
-
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
90L
Engine Oil Capacity
18L
Coolant Capacity
13L
Tyre Size
23.1x26 (12PR)
Battery Voltage
12V
Battery Capacity
130Ah
Gradeability With Vibration
-
Hydraulic Tank Capacity
-
Frequency High
-
Frequency Low
-
Amplitude High
-
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
-
Water Tank Capacity
-
Turning Radius
-
Volvo SD110CD Soil Compactor
Engine Brand
VECV
Engine Model
EE494 TCI-HPCR
Engine Power
-
Max Torque
-
Rated Speed
2,200rpm
Displacement
-
Fuel Tank Capacity
-
Transmission Type
-
Max Travel Speed
12km/h
Service Brake Type
Hydrostatic
Parking Brake Type
Spring-applied, hydraulically released on axle and drum
Steering Type
-
Steering Angle
-
Oscillation Angle
17°
Turning Radius (inner)
-
Turning Radius (outer)
-
Operating Weight
11.2Ton
Front Axle Load
-
Rear Axle Load
-
Static Linear Load
-
Frequency (low)
-
Frequency (high)
-
Amplitude (low)
-
Amplitude (high)
-
Centrifugal Force
-
Max Applied Force
-
Without Drum Drive
-
With Drum Drive
-
Overall Length
5.875m
Overall Width
2.340m
Overall Height
3.250m
Ground Clearance
472mm
Drum Width
2.134m
Drum Diameter
-
Drum Shell Thickness
-
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Coolant Capacity
-
Tyre Size
-
Battery Voltage
-
Battery Capacity
-
Gradeability With Vibration
-
Hydraulic Tank Capacity
70L
Frequency High
30Hz
Frequency Low
0Hz
Amplitude High
1.9mm
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
1.0mm
Water Tank Capacity
-
Turning Radius
-
Dynapac CA405D CEV-V Single drum vibratory rollers
Engine Brand
Cummins
Engine Model
-
Engine Power
121HP
Max Torque
-
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
280L
Transmission Type
Hydrostatic
Max Travel Speed
10.8km/h
Service Brake Type
Hydrostatic in forward and reverse lever
Parking Brake Type
Failsafe multidisc brake in rear axle and front drum motor
Steering Type
Hydrostatic
Steering Angle
38°
Oscillation Angle
9°
Turning Radius (inner)
3.385m
Turning Radius (outer)
5.515m
Operating Weight
13.960Ton
Front Axle Load
8580kg
Rear Axle Load
5260kg
Static Linear Load
40.3kg/cm
Frequency (low)
33Hz
Frequency (high)
33Hz
Amplitude (low)
0.8mm
Amplitude (high)
1.7mm
Centrifugal Force
300kN
Max Applied Force
-
Without Drum Drive
50%
With Drum Drive
-
Overall Length
5.600m
Overall Width
2.300m
Overall Height
2.977m
Ground Clearance
520mm
Drum Width
2.130m
Drum Diameter
1.543m
Drum Shell Thickness
0.035m
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Coolant Capacity
-
Tyre Size
23.1-26 TL
Battery Voltage
-
Battery Capacity
-
Gradeability With Vibration
-
Hydraulic Tank Capacity
-
Frequency High
-
Frequency Low
-
Amplitude High
-
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
-
Water Tank Capacity
-
Turning Radius
-
Ammann ARS 110 PD Single Drum Roller
Engine Brand
Deutz
Engine Model
TCD 3.6 L04
Engine Power
134HP
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
345 L
Transmission Type
-
Max Travel Speed
12km/h
Service Brake Type
Hydrostatic
Parking Brake Type
Multi Disc
Steering Type
-
Steering Angle
36°°
Oscillation Angle
10°°
Turning Radius (inner)
3.625m
Turning Radius (outer)
-
Operating Weight
12.54Ton
Front Axle Load
-
Rear Axle Load
-
Static Linear Load
-
Frequency (low)
25 Hz
Frequency (high)
35 HzHz
Amplitude (low)
1.7mm
Amplitude (high)
0.72mm
Centrifugal Force
186kN
Max Applied Force
285kN
Without Drum Drive
54%
With Drum Drive
50%
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Drum Width
-
Drum Diameter
-
Drum Shell Thickness
-
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Coolant Capacity
-
Tyre Size
-
Battery Voltage
-
Battery Capacity
-
Gradeability With Vibration
-
Hydraulic Tank Capacity
-
Frequency High
-
Frequency Low
-
Amplitude High
-
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
-
Water Tank Capacity
-
Turning Radius
-
Ammann 130 PD Single Drum Roller
Engine Brand
Cummins
Engine Model
QSB 4.5-C160
Engine Power
159HP
Max Torque
206 Nm
Rated Speed
1500rpm
Displacement
-
Fuel Tank Capacity
410L
Transmission Type
-
Max Travel Speed
20km/h
Service Brake Type
Hydrostatic
Parking Brake Type
Hydrostatic
Steering Type
-
Steering Angle
36°°
Oscillation Angle
10°°
Turning Radius (inner)
-
Turning Radius (outer)
-
Operating Weight
14Ton
Front Axle Load
-
Rear Axle Load
-
Static Linear Load
-
Frequency (low)
30Hz
Frequency (high)
36Hz
Amplitude (low)
1.85mm
Amplitude (high)
1mm
Centrifugal Force
300kN
Max Applied Force
230kN
Without Drum Drive
-
With Drum Drive
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Drum Width
-
Drum Diameter
-
Drum Shell Thickness
-
Rear Departure Angle
-
Front Departure Angle
-
Hydraulic Oil Capacity
-
Engine Oil Capacity
-
Coolant Capacity
-
Tyre Size
-
Battery Voltage
-
Battery Capacity
-
Gradeability With Vibration
-
Hydraulic Tank Capacity
-
Frequency High
-
Frequency Low
-
Amplitude High
-
Max Working Speed
-
Gradeability Without Vibration
-
Amplitude Low
-
Water Tank Capacity
-
Turning Radius
-
