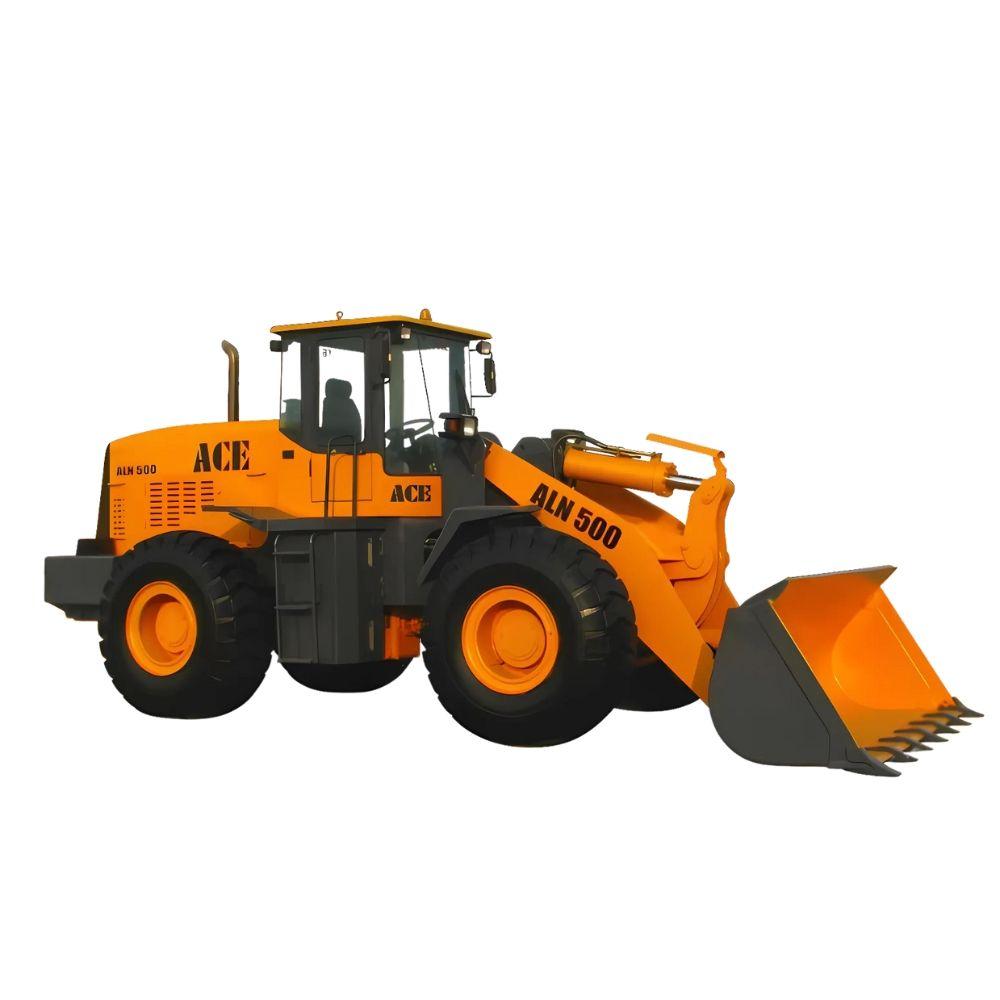

ACE ALN 500 Wheel Loader
Action Construction Equipment Limited
Haryana
The ACE ALN 500 Wheeled Loader is a high-performance machine designed to tackle demanding tasks in construction, infrastructure, and mining sectors. With capacities ranging from 1 cu.m. to 3 cu.m., it excels in loading, moving, and grading large volumes of loose aggregates. Its powerful capabilities are ideal for extensive construction projects, ensuring efficient material handling and precise site preparation. In mining operations, the ALN 500 effectively manages substantial material loads, enhancing productivity and speed. It also plays a crucial role in heavy industry, handling bulk materials within industrial environments with ease. The ACE ALN 500 Wheeled Loader delivers consistent, reliable performance, making it a valuable asset for various large-scale projects and operations.
ACE ALN 500 Wheel Loader
Action Construction Equipment Limited
Haryana
The ACE ALN 500 Wheeled Loader is a high-performance machine designed to tackle demanding tasks in construction, infrastructure, and mining sectors. With capacities ranging from 1 cu.m. to 3 cu.m., it excels in loading, moving, and grading large volumes of loose aggregates. Its powerful capabilities are ideal for extensive construction projects, ensuring efficient material handling and precise site preparation. In mining operations, the ALN 500 effectively manages substantial material loads, enhancing productivity and speed. It also plays a crucial role in heavy industry, handling bulk materials within industrial environments with ease. The ACE ALN 500 Wheeled Loader delivers consistent, reliable performance, making it a valuable asset for various large-scale projects and operations.
Product Description
The ACE ALN 500 Wheeled Loader is a high-performance machine designed to tackle demanding tasks in c...
View the full brochure
ACE ALN 500 Wheel Loader Comparison with Similar Wheel Loader
ACE ALN 500 Wheel Loader
Engine Brand
Cummins
Engine Model
6CTAA-C215
Engine Power
160kW
Max Torque
980Nm
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
297L
Hydraulic Oil Capacity
297L
Transmission Type
Mechanical power shift, constant mesh
Number Of Gears (f/r)
4 / 4
Max Travel Speed (f)
-
Max Travel Speed (r)
-
Service Brake Type
Caliper Disc Brakes, air assisted oil disc on 4 wheels
Parking Brake Type
Air cutting control inner expand hoof
Steering Type
Center articulated frame steering with co-axis flow
Steering Angle
35 ± 1°
Oscillation Angle
±11°
Turning Radius
7.026m
Operating Weight
16.0kg
Front Axle Load
-
Rear Axle Load
-
Max Lifting Capacity
-
Hydraulic Flow Rate
L/min
Hydraulic Pressure
160Bar
Overall Length
7.268m
Overall Width
3.010m
Overall Height
-
Ground Clearance
-
Max Dump Height
-
Max Load Over Height
-
Max Reach At Full Height
-
Loader Bucket Capacity
3.0m³
Loader Arm Breakout Force
-
Front Axle Oscillation
-
Battery Voltage
24V
Standard Tires (front/rear)
23.5-25-20PR
Liugong 856HE Max Electric Wheel Loader
Engine Brand
CATL
Engine Model
LFP
Engine Power
160kW
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
Electric – not applicableL
Hydraulic Oil Capacity
100L
Transmission Type
Planetary, power shift
Number Of Gears (f/r)
2/1
Max Travel Speed (f)
40km/h
Max Travel Speed (r)
13km/h
Service Brake Type
Fully Hydraulic
Parking Brake Type
Hydraulic Wet Brake + Manual Handle Control
Steering Type
Articulated
Steering Angle
-
Oscillation Angle
±8°
Turning Radius
4.966m
Operating Weight
21000kg
Front Axle Load
-
Rear Axle Load
-
Max Lifting Capacity
-
Hydraulic Flow Rate
100L/min
Hydraulic Pressure
250Bar
Overall Length
6.3m
Overall Width
2.25m
Overall Height
3.25m
Ground Clearance
350mm
Max Dump Height
3.77m
Max Load Over Height
3.55m
Max Reach At Full Height
1.05m
Loader Bucket Capacity
2.7–5.6m³
Loader Arm Breakout Force
137kN
Front Axle Oscillation
±8°
Battery Voltage
618V
Standard Tires (front/rear)
16/70-20 PR14/TT L-3
liugong 818h wheel loader
Engine Brand
Kirloskar
Engine Model
4R1040T-I (T)
Engine Power
54.8kW
Max Torque
400Nm
Rated Speed
2200rpm
Displacement
4.76L
Fuel Tank Capacity
88L
Hydraulic Oil Capacity
65L
Transmission Type
Countershaft Powershift, 3 Element Single Stage
Number Of Gears (f/r)
Forward 2 / Reverse 1
Max Travel Speed (f)
8/25km/h
Max Travel Speed (r)
8/25km/h
Service Brake Type
Air Over Hydraulic Caliper Disc Brake
Parking Brake Type
Mechanical Actuation
Steering Type
Articulated Hydrostatic Steering
Steering Angle
± 35°°
Oscillation Angle
± 10°°
Turning Radius
R1:5.28 R2:4.63 m
Operating Weight
6400kg
Front Axle Load
-
Rear Axle Load
-
Max Lifting Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure
148Bar
Overall Length
5.96m
Overall Width
2.02m
Overall Height
2.96m
Ground Clearance
285mm
Max Dump Height
2.68m
Max Load Over Height
2.94m
Max Reach At Full Height
0.92m
Loader Bucket Capacity
1.2m³
Loader Arm Breakout Force
45kN
Front Axle Oscillation
± 10°°
Battery Voltage
12V
Standard Tires (front/rear)
16/70-20 PR14
Liugong 838T MAX WHEEL LOADER
Engine Brand
Ashok Leyland
Engine Model
H6C516022
Engine Power
118kW
Max Torque
650Nm
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
180L
Hydraulic Oil Capacity
104L
Transmission Type
Powershift
Number Of Gears (f/r)
2 / 1
Max Travel Speed (f)
17/40km/h
Max Travel Speed (r)
17km/h
Service Brake Type
Air Over Hydraulic Drum Brake
Parking Brake Type
Mechanical Actuation
Steering Type
Articulated
Steering Angle
38°
Oscillation Angle
11°
Turning Radius
5.05m
Operating Weight
12324kg
Front Axle Load
-
Rear Axle Load
-
Max Lifting Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure
210Bar
Overall Length
7.41m
Overall Width
2.46m
Overall Height
3.32m
Ground Clearance
380mm
Max Dump Height
2.95m
Max Load Over Height
3.39m
Max Reach At Full Height
1.15m
Loader Bucket Capacity
2.4m³
Loader Arm Breakout Force
102kN
Front Axle Oscillation
11°
Battery Voltage
24V
Standard Tires (front/rear)
17.5–25 PR16
LIUGONG 838TE WHEEL LOADERS
Engine Brand
Electric (Battery Powered)
Engine Model
-
Engine Power
Peak Power Drive Motor: 120 kW Peak Power Hydraulic Motor: 95 kWkW
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Oil Capacity
130L
Transmission Type
Planetary electronic control shift
Number Of Gears (f/r)
2/1
Max Travel Speed (f)
40km/h
Max Travel Speed (r)
15km/h
Service Brake Type
Full hydraulic
Parking Brake Type
Drum
Steering Type
Large displacement steering
Steering Angle
38°
Oscillation Angle
10°
Turning Radius
Bucket Carry: 6218 mm (6.21 m) Outside of Tire: 5840 mm (5.84 m)m
Operating Weight
-
Front Axle Load
-
Rear Axle Load
-
Max Lifting Capacity
-
Hydraulic Flow Rate
13625L/min
Hydraulic Pressure
210Bar
Overall Length
7.50m
Overall Width
3.2m
Overall Height
3.2m
Ground Clearance
328mm
Max Dump Height
2.95m
Max Load Over Height
3.85m
Max Reach At Full Height
1.14m
Loader Bucket Capacity
2.4m³
Loader Arm Breakout Force
125kN
Front Axle Oscillation
10°
Battery Voltage
DC 624 VV
Standard Tires (front/rear)
17.5–25 PR16 L-3 TT
